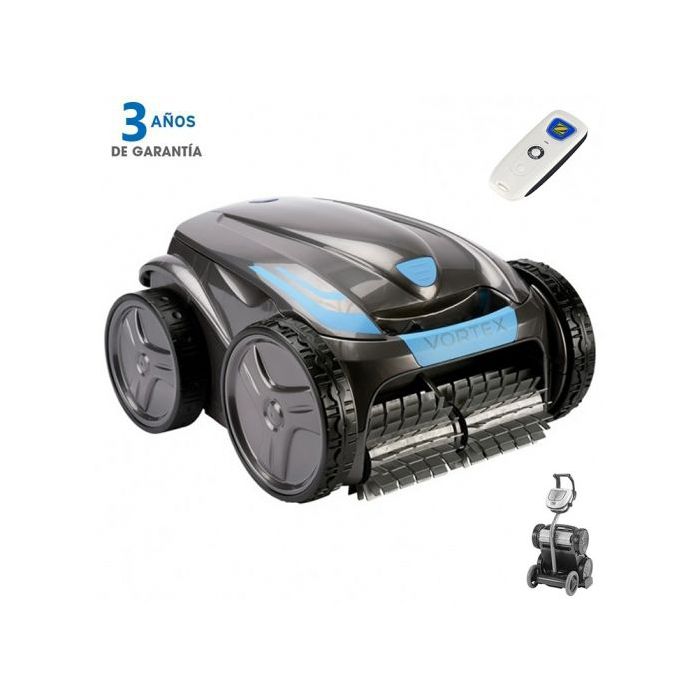

Zodiac Vortex OV 3505 Swimming Pool Cleaner

Vortex OV 3505 Robot

Electric pool cleaner OV 3505 from Zodiac's Vortex range, the ultimate power for the entire pool.

• The new OV 3505 is a robotic pool cleaner with cyclonic suction. powerfuldesigned to reduce filter clogging while maintaining the cleaning performance of the bottom, walls and water line.
• Its large capacity filter (5 liters) and its extra large suction mouth allow to suck and keep all types of waste in the most comfortable and simple way, without clogging the filter and without loss of suction.
• The filter is easy to clean as it can be accessed from the upper part without having contact with the waste.
• High capacity of active cleaning with lamellar brushes.
• This electric pool cleaner is designed for the following types of pools: in-ground pools and removable above-ground pools with rigid walls up to 12 x 6 m, either rectangular, oval or free-form and whose coatings are Gresite, liner, polyester hull, reinforced PVC, painted concrete. The pool bottoms can be flat, slight inclination, mixed inclination, diamond point.

Advantages and characteristics Zodiac Vortex OV 3505 Pool Cleaner

• Cleaning zone: Bottom / walls / water line.
• Power source: Stand-alone connected to 230 V.
• Displacement: Pre-programmed.
• Transmission: Gears
• Brushes: Yes
• Lift System: No
• Filter full indicator: No
• Remote control Kinetic equipped with motion sensors to guide the cleaner easily.
• Safety: Beach system, automatic out-of-water stop, electronic motor protection.
• Filter type / Access: Rigid filter with access from the top of the cleaner.
• Number of motors: 3
• Control system supply voltage: 200-240 VAC ; 50 Hz
• Power supply voltage of the cleaner: 30 VDC
• Power consumption: 150 W
• Dimensions of the cleaner (L x W x H): 43 x 48 x 27 cm.
• Packaging dimensions (L x W x H): 56 x 56 x 46 cm.
• Weight of the cleaner: 9.5 kg (Weight with packaging 19.2 kg).
• Filtering surface / Filtration level: 1280 cm2 / 100μ
• Filter capacity: 5 L.
• Cleaning cover: 27 cm
• Pump flow rate: 16 m3 / h.

Technical features Zodiac Vortex OV 3505

Warranty Zodiac Vortex OV 3505 pool cleaners

Warranty 2 years

Accessories included:

• Control box
• Transport trolley
• Fine debris filtering tray 100 µ
• Kinetic remote control

Optional accessories:

• Filter for very fine debris 60 µ
• Filter for fine residues 100 µ
• Filter for large residues
• Protective cover
• Front wheel cover for tiled pools (each)

Warranty Information

3-year manufacturer's warranty according to Royal Decree Law 7/2021, April 27th.

*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls as long as the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the glass, in addition to any pool with irregular surfaces on the walls as nerves, including steps of the pool.
