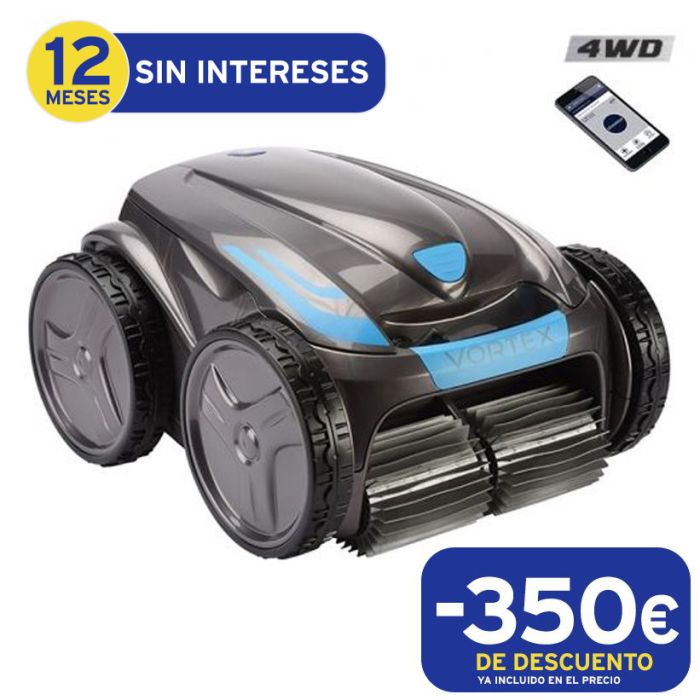

Cleaner Zodiac OV 5480 iQ
Product at 12 MONTHS WITHOUT INTEREST, buy it now! HERE
Zodiac OV 5480iq also called the Connected Pool Cleaner, it connects to your Wi-Fi network and is controlled from your smartphone, for total control of your pool cleaning even from a distance. For cleaning the bottom, walls and waterline of all types of pools up to 12 x 6 meters and with 18 m. cable and anti-tangle swivel.
For what type of pools?
- Types of pools: private in-ground or above-ground pools with rigid walls.
- Shapes: rectangular, oval and free-form shapes.
- Backgrounds: flat, gentle slope, compound slope, diamond point.
- Pool size: 12 x 6 m
- Cleaning areas: Bottom / walls / water line.
- Number / Duration of cleaning cycles:
- Multiple cycles (from 0h30 to 3h30).
- Deep cleaning" background
- Bottom/walls/waterline - Waterline - Power source Stand-alone, connected to 230V
- Displacement: Preprogrammed
- Brushes: Yes (contact + brushes)
- Lift System: Yes
- Filter complete indicator: Yes
- Remote control mode : By Application
- Swivel device: Prevents cable tangling
The Connected Pool Cleaner, iAqualink AppTM
Maximum performance with ultra-powerful and constant cyclonic suction
Zodiac® has patented the cyclonic suction and have been the first to create the first pool cleaners on the market with this type of suction.
Thanks to the creation of a high-powered whirlpool that originates inside the robot's filter.The dirt is kept in suspension, thus preventing it from sticking to the walls of the filter. OV 5480 iQ avoiding clogging and potentially improving the performance of the cleaning cycle.
All-terrain cleaner thanks to its 4-wheel drive.
The Robot OV 5480 iQ is equipped with 4 wheel drive that allow the cleaner a perfect adherence to the walls of the pool, and thanks to this feature it is able to clean the walls of the pool.to adapt to any type of lining and to overcome obstacles more easily..
Integrated connectivity through iAqualink application
The OV 5480 iQ robot robot is fully controllable via the iAqualinkTMmakes everyday life easier. In addition, thanks to the Zodiac's patented Lift System makes it easier to remove the cleaner. thanks to a powerful rear water jet that is activated as soon as the cleaner comes out of the water.
Lift System
18M cable with Swivel
Included Accessories
Filter Full Indicator
Indicates when the filter needs to be emptied.
Control Unit
Filter
100μ fine debris filter.
Trolley
Zodiac OV 5480 iQ Technical Characteristics
| Number of motors | 3 |
| Dimensions of the cleaner | (L x W x H) 48 x 43 x 43 x 27 cm |
| Filter Capacity | 5 L |
| Weight of cleaner | 9,5 kg |
| Cable length | 18 m with Swivel |
| Filtering Surface / Filtration Level | 1.180 cm² / 100μ |
| Cleaning coverage | 24.5 cm |
| Control system supply voltage | 30 VDC |
| Supply voltage of the box | 200-240 VAC; 50 Hz |
| Drive System | 4-wheel drive |
| Transmission | Gears |
| Security | Beach system, automatic out-of-water shutdown, electronic motor protection. |
Warranty Information
3-year manufacturer's warranty according to Royal Decree Law 7/2021, April 27th.
*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls as long as the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the glass, in addition to any pool with irregular surfaces on the walls as nerves, including steps of the pool.
Comparison of the Zodiac OV pool cleaner range
*Scroll horizontally to view the complete table.
 |
 |
 |
 |
 |
 |
|
| Zodiac OV 3400 | Zodiac OV 3480 | Zodiac OV 3505 | Zodiac OV 5200 | Zodiac OV 5300 | Zodiac OV 5480 iQ | |
| Code | WR000024 | WR000166 | WR000152 | WR000223 | WR000162 | WR000264 |
| Swimming Pools Measurement | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m | Up to 12 x 6m |
| Cleaning Area | Background, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
Bottom, Walls and Waterline |
| Cleaning Chilos | 1 | 2 | 6 | 2 | 2 | Multiple Cycles |
| Drive Wheels | 2 | 2 | 2 | 4 | 4 | 4 |
| Filter Full Indicator | No | Yes | No | No | Yes | Yes |
| Remote Control | No | No | Yes | No | No | Yes, via App |
| Cable length | 18 m | 18 m | 18 m | 18 m | 18 m, with swivel | 18 m, with swivel |
| Warranty | 3 years | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
-
