AstralPool AquaForte Full Inverter Heat Pump

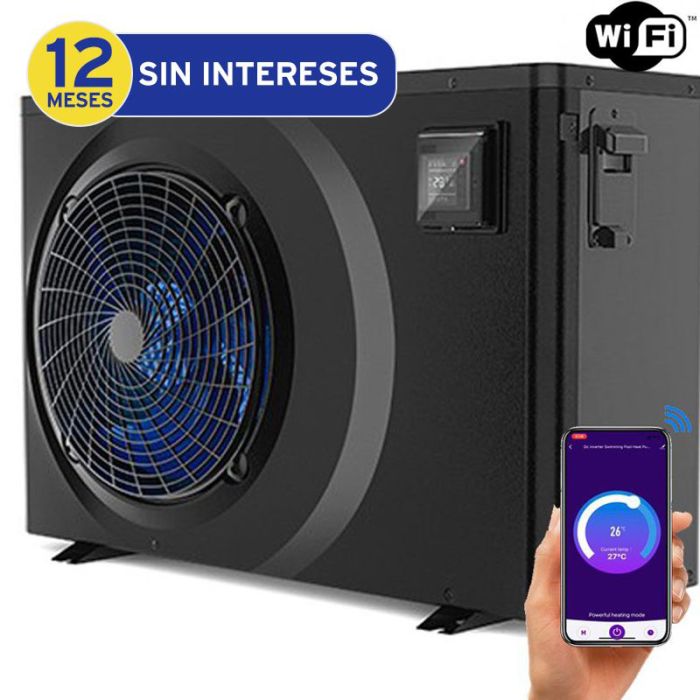

The Astralpool AquaForte heat pump is a 100% full inverter pool heating device equipped with the latest technology and a modern and sophisticated design. It includes a Mitsubishi compressor and a WiFi module and is suitable for both heating and cooling pool water.
Manuals
Astralpool AquaForte Full Inverter Heat Pump Installation Manual
Astralpool AquaForte Full Inverter Heat Pump Technical Sheet
Installation Service Documentation
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached Check List document and send it to info@piscinasferromar.com.
Installation Service Conditions
Check List Salt Chlorinator Installation Service
The main features and advantages of the new Aquaforte Full Inverter heat pumps by Astralpool are:
- They are 100% Full Inverter air conditioning devices.
- ABS casing.
- Mitsubishi compressor.
- Remote WiFi control of the pump through a Smart Life App.
- Excellent energy efficiency with a COP of 14.5.
- Frost protection.
- Valid for both heating and cooling of the pool.
- Fast water heating.
- Automatically adjusts the required power to maintain a constant water temperature. Does not waste energy.
- Low noise level.
- Digital display.
- R32 refrigerant.
- Working range: from -10°.
- Available in 6 models ranging from 5.5 to 18 kW.
- Three operating modes: Boost, Smart, Silence.
- 5-year warranty on compressor and heat exchanger.
Fast heat-up
Constant water temperature
Low noise level
Wi-Fi control
R32 refrigerant
High energy efficiency
| TYPE | ART. | CAPACITY | KW | AMP (A) |
| AquaForte Full Inverter heat pump 5,5 kW | SC980 | 5,5 kW | 0,10~1,31 | 5,95 |
| AquaForte Full Inverter heat pump 7,2 kW | SC981 | 7,2 kW | 0,10~1,61 | 7,32 |
| AquaForte Full Inverter heat pump 9,5 kW | SC982 | 9,5 kW | 0,12~1,75 | 7,95 |
| AquaForte Full Inverter heat pump 11,5 kW | SC983 | 11,5 kW | 0,19~2,3 | 10,5 |
| AquaForte Full Inverter heat pump 15,3 kW | SC984 | 15.3 kW | 0,24~3,2 | 14,5 |
| AquaForte Full Inverter heat pump 18 kW | SC985 | 18 kW | 0,30~3,9 | 17,7 |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
Dimensions
Heat Pump Installation Service
Piscinas Ferromar as an ePartner of Zodiac offers you the possibility to contract the installation service for your Heat Pump at the time of purchase.
This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).
To be able to contract your installation you must meet the following minimum conditions:
Heat pump located at ground level on outdoor screed.
Minimum distances:
- 50 cm from the rear and sides.
- No obstacle at the front (minimum distance 4 meters).
- Maximum horizontal distance of 5 meters
- Maximum vertical distance of 2 meters upwards from the filtration pump.
Maximum distances:
Filtration pump with a minimum power of ¾ HP or with the minimum water flow required.
(refer to manual according to the recommended water flow).
The equipment to be installed must be of Astralpool, Zodiac or CTX brands.
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached document of Check List and send it to info@piscinasferromar.com
For more information, consult the installation service conditions
Comparison of Aquaforte Full Inverter Heat Pumps
| MODEL: | SC980 5,5kW | SC981 7,2kW | SC982 9,5kW | SC983 11,5kW | SC984 15,3kW | SC985 18kW |
| Heating No. 1: Ambient 26 ºC, Input/Output: 26/28 ºC, Humidity 80 %. | ||||||
| Heating capacity (kW) | 1.50~5.50 | 1.50~7.20 | 1.80~9.5 | 2.80~11.5 | 3.50~15.3 | 4.35~18.0 |
| Input power (kW) | 0.104~0.90 | 0.106~1.12 | 0.124~1.46 | 0.193~1.79 | 0.243~2.41 | 0.306~2.83 |
| COP | 14.42~6.11 | 14.15~6.43 | 14.52~6.51 | 14.51~6.42 | 14.40~6.35 | 14.22~6.36 |
| Heating No. 2: Ambient 15 ºC, Input/Output: 26/28 ºC, Humidity 70%. | ||||||
| Heating capacity (kW) | 1.1~3.9 | 1.30~5.40 | 1.50~7.9 | 2.21~8.23 | 2.95~11.15 | 3.42~13.33 |
| Input power (kW) | 0.138~0.75 | 0.168~1.102 | 0.194~1.491 | 0.283~1.614 | 0.386~2.226 | 0.453~2.693 |
| COP | 7.97~5.20 | 7.74~4.9 | 7.73~5.3 | 7.81~5.10 | 7.64~5.01 | 7.55~4.95 |
| General information | ||||||
| Recommended pool size (m3) | 10~25 | 15~30 | 20~40 | 25~50 | 35~65 | 40~75 |
| Maximum input power (kW) | 1.31 | 1.61 | 1.75 | 2.3 | 3.2 | 3.9 |
| Maximum current (A) | 5.95 | 7.32 | 7.95 | 10.5 | 14.5 | 17.7 |
| WiFi control | Optional | |||||
| Controller | LED | |||||
| Power supply | 220V~240V/1ph/50Hz | |||||
| Water temp. in heating mode (ºC | 15~40 | |||||
| Water temp. cooling mode (ºC) | 8~28 | |||||
| Ambient working temperature (ºC) | -10~43 | |||||
| Refrigerant | R32 | |||||
| Compressor type | Rotary | |||||
| Compressor brand | Mitsubish | |||||
| Gas control | EEV | |||||
| 4-way valve | Yes | |||||
| Number of fans | 1 | |||||
| Heat exchanger | Titanium in PVC | |||||
| Water pipe connection (mm) | 50 | |||||
| Housing material | ABS housing | |||||
| Noise level at 1m dB (A) | 37~47 | 38~48 | 39~49 | 41~51 | 42~52 | 43~53 |
| Noise level at 10m dB (A) | 17~27 | 18~28 | 19~29 | 21~31 | 22~32 | 23~33 |
| Water flow rate (m³/h) | 2.2~3.2 | 3.1~4.2 | 3.5~5.5 | 4.1~6.2 | 5~7.2 | 6~8.2 |
| Pressure drop (kPa) | 9 | 16 | 26 | 28 | 30 | 31 |
| High pressure protection | Yes | Yes | Yes | Yes | Yes | Yes |
| Net weight (kg) | 33 | 36 | 39 | 49 | 52 | 62 |
| Dimensions (mm) | 896*353*644 | 980*353*660 | ||||
-
