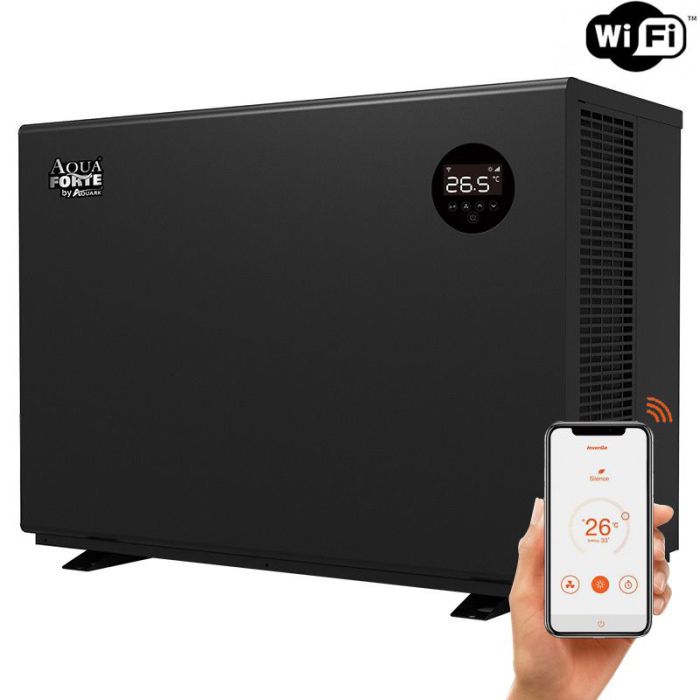

AstralPool AquaForte Mr. Silence Heat Pump
The new AquaForte Mr. Silence heat pumps feature a unique Inverter technology, used by only a few manufacturers, which provides high energy efficiency and minimum noise level.
These air conditioners have a modern and user-friendly design and are one of the best value for money.
Manuals
AstralPool AquaForte Mr. Silence Heat Pump Installation Manual
AstralPool AquaForte Mr. Silence Heat Pump Technical Data Sheet
Installation Service Documentation
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached Check List document and send it to info@piscinasferromar.com.
Installation Service Conditions
Check List Heat Pumps Installation Service
Main features and benefits of the AquaForte Mr. Silence Full Inverter heat pump by Astralpool:
- Only 40 dB noise level.
- COP levels up to 16.
- Mitsubishi 100% Full Inverter compressor.
- Maintains constant water temperature thanks to its energy efficiency which avoids energy waste.
- Metallic casing.
- Touch screen.
- Unique air circulation design that extends the life of the pump as air is sucked in from the sides and expelled from the rear.
- Incorporate WiFi system for control through an InverGO application from any device.
- Includes anti-vibration mounts and winter cover.
- R32 refrigerant gas.
- Two operating modes: Boost, Silence.
- Working range from -10°.
- Available in 8 models with power from 9 to 35 kW.
- 10 years warranty on the heat exchanger and 5 years warranty on the compressor.
Environmentally friendly
Working temperature -10°C ~ 43°C
Mitsubishi Compressor
Electronic expansion valve for 20% higher COP
Electrical system protection
Reverse cycle defrost
| TYPE | ART. NO. | AMP (A) | CAPACITY | KW |
| MS90 230V 1 phase | SC947 | 0,83~5,98 | 9 kW | 0,19~1,38 |
| MS110 230V 1 phase | SC948 | 0,96~7,13 | 11 kW | 0,22~1,64 |
| MS130 230V 1 phase | SC949 | 1,13~7,83 | 13 kW | 0,26~1,8 |
| MS150 230V 1 phase | SC954 | 1,22~9,32 | 15 kW | 0,28~2,15 |
| MS170 230V 1 phase | SC950 | 1,44~10,9 | 17 kW | 0,33~2,50 |
| MS210 230V 1 phase | SC951 | 1,66~12,7 | 21 kW | 0,38~2,90 |
| MS280 400V 3 phase | SC952 | 2,15~16,53 | 28 kW | 0,49~3,80 |
| MS350S 400V 3 phase | SC953 | 0,95~7,01 | 35 kW | 0,65~4,84 |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
Dimensions
These data are subject to change without notice.
Note: The above picture is the specification diagram of the pool heat pump; it should only be used by the technician as a reference for installation and layout. Product is subject to periodic adjustment for improvement without notice.
Heat Pump Installation Service
Piscinas Ferromar as a Zodiac ePartner offers you the possibility to contract the installation service for your Heat Pump at the time of purchase.
This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).
To be able to contract your installation you must meet the following minimum conditions:
Heat pump located at ground level on outdoor screed.
Minimum distances:
- 50 cm from the rear and sides.
- No obstacle at the front (minimum distance 4 meters).
- Maximum horizontal distance of 5 meters
- Maximum vertical distance of 2 meters upwards from the filtration pump.
Maximum distances:
Filtration pump with a minimum power of ¾ HP or with the minimum water flow required.
(refer to manual according to the recommended water flow).
The equipment to be installed must be of Astralpool, Zodiac or CTX brands.
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached document of Check List and send it to info@piscinasferromar.com
For more information, consult the installation service conditions
Comparison Aquaforte Mr. Silence Heat Pump
| MODEL: | MS90 | MS110 | MS130 | MS150 | MS170 | MS210 | MS280 | MS350S |
| PERFORMANCE CONDITIONS: Air 27°C/ Water 27°C/ Humidity 80%. | ||||||||
| Heating capacity (kW) | 9.0 | 11.0 | 13.0 | 15.0 | 17.5 | 21.0 | 28.0 | 35.2 |
| COP Range | 14~7.2 | 14~7.0 | 14.5~7.0 | 15.6~7.0 | 15.6~7.0 | 14.8~7.1 | 16~7.2 | 15.5~7.0 |
| Average COP at 50% speed | 10.5 | 10.3 | 10.5 | 11.0 | 11.0 | 11.0 | 11.1 | 10.5 |
| PERFORMANCE CONDITIONS: Air 15°C/ Water 26°C/ Humidity 70%. | ||||||||
| Heating capacity (kW) | 6.6 | 7.7 | 9.0 | 10.5 | 12.5 | 14.5 | 19.0 | 24.2 |
| COP Range | 7.5~4.8 | 7.3~4.7 | 7.5~5 | 7.7~4.9 | 7.7~5.0 | 7.1~5.0 | 8~5.0 | 7.5~5.0 |
| Average COP at 50% speed | 6.5 | 6.6 | 6.4 | 6.8 | 6.6 | 6.6 | 6.6 | 6.6 |
| TECHNICAL SPECIFICATIONS | ||||||||
| Recommended pool size (m3) | 20~45 | 30~55 | 35~65 | 40~70 | 40~80 | 50~95 | 60~120 | 85~160 |
| Working air temperature (°C) | -10°C ~ 43°C | |||||||
| Compressor | Mitsubishi DC Twin-rotary Compressor | |||||||
| Housing | Aluminum alloy housing | |||||||
| Heat exchanger | Braided titanium heat exchanger | |||||||
| Power supply | 230V 1Ph | |||||||
| Rated input power (kW) | 0.19~1.38 | 0.22~1.64 | 0.26~1.8 | 0.28~2.15 | 0.33~2.50 | 0.38~2.90 | 0.49~3.80 | 0.65~4.84 |
| Input power at 50% speed (kW) | 0.51 | 0.58 | 0.7 | 0.77 | 0.95 | 1.1 | 1.44 | 1.8 |
| Rated input current (A) | 0.83~5.98 | 0.96~7.13 | 1.13~7.83 | 1.22~9.32 | 1.44~10.9 | 1.66~12.7 | 2.15~16.53 | 0.95~7.01 |
| Noise level at 1m dB(A) | 36.8~46.2 | 36.6~47.9 | 40.1~48.7 | 39.3~52 | 41.1~51.8 | 38.9~52.2 | 41.5~52.9 | 40.6~52.6 |
| Noise level 50% at 1m dB(A) | 39.4 | 41.3 | 43.7 | 44.0 | 44.5 | 44.4 | 46.4 | 46.4 |
| Noise level at 10m dB(A) | 16.8~26.1 | 16.6~27.9 | 20.1~28.7 | 19.3~32 | 21.1~31.8 | 18.9~32.2 | 21.5~32.9 | 21.5~32.9 |
| Recommended water flow (m³/h) | 2~4 | 3~5 | 4~6 | 5~7 | 6~8 | 8~10 | 10~12 | 12~18 |
| Water connection (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Net weight (kg) | 53 | 55 | 57 | 61 | 66 | 72 | 91 | 135 |
| Dimensions LxWxH (mm) | 890 x 440 x 658 | 1060 x 440 x 758 | 1060 x 440 x 958 | 1314 x 512 x 957 | ||||
Remarks: * Recommended volume for a private pool with isothermal cover, from April to September. * The above data are for reference only. For specific data, please refer to the nameplate of the unit.
-
