Zodiac XA 2010 Swimming Pool Cleaners
With 3 years warranty.
NEW ZODIAC XA TYPE 2010 EXCLUSIVE AT FERROMAR POOLS !

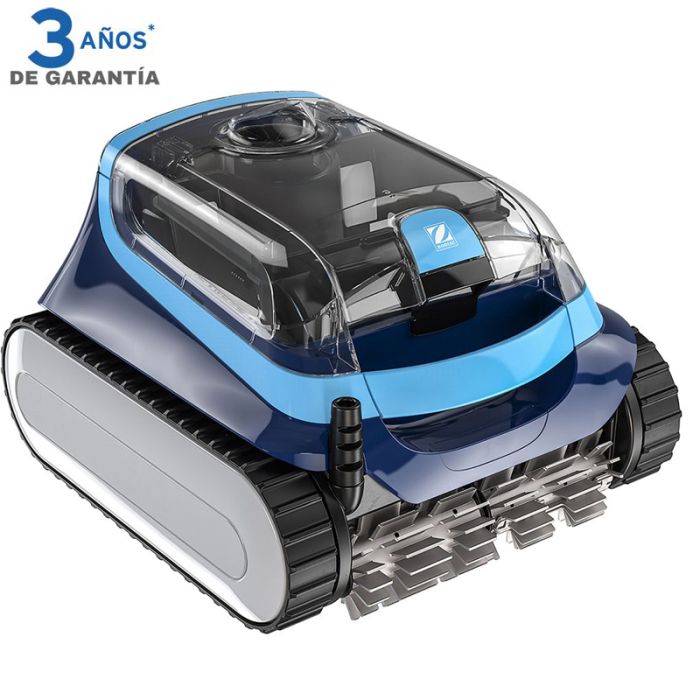

Zodiac XA 2010 Pool Cleaners, Agility with the maximum power
For what type of pool?
| For in-ground and above-ground pools with rigid walls. |  |
| All types of pools |  |
| All bottoms and liners |  |
| For pools up to 10 x 5 M |  |
| Cleaning of bottom, walls and waterline |  |
Cyclonic suction
Su patented cyclonic technology technology provides a suction more powerful and long lasting.
Zodiac engineers were the creators of cyclonic suction and the first pool cleaners to include it were created by them.
Cyclonic suction consists of creating a high-powered whirlpool inside the robot filter, which acts in such a way that it keeps the dirt in suspension, preventing it from sticking to the walls of the filters and this in turn is clogged, maintaining the filter's efficiency at all times. maximum performance at all times in the cleaning cycle.
Thanks to the helicoidal brushes, the filtration and its 3 motors, the allow the suction of even the finest debris more efficiently. With the XA 2010 robot, your pool will be impeccable all year round.
Fast and agile movement
With its integrated intelligent sensorsexclusive design and its 3 engines, the Zodiac XA 2010 offers a excellent cleaning coverage and agility without limits.
Works flawlessly on all pool shapes and any liner.
Helical shaped brush
Thanks to its helical shaped brush helicalthe Zodiac XA 2010 vacuums in a very efficient way. more efficient even the finest debris.
High suction capacity
With its suction nozzle of 23 cm
Helical shaped brush
Easy Handling
Filter, accessible from the topand the transparent lid greatly simplify daily use. The quick water evacuation makes it easy to remove the pool cleaner from the pool.
TRANSPARENT COVER: It allows to visualize the waste collected in the filter.
TOP ACCESS TO THE FILTER Facilitates daily use.
Technical Features Zodiac XA 2010 Pool Cleaners
| Number of Motors | 3 |
| Control box supply | 200-240 VAC ; 50 / 60 Hz |
| Power supply | 30 VDC |
| Power consumption | 150 W |
| Cable length / Sleeve length | 15 m |
| Cleaner dimensions (Lx W x H) | 43 x 40 x 30 cm |
| Packaging dimensions (Lx W x H) | 56 x 56 x 37 cm |
| Weight of cleaner | 8 Kg |
| Weight with packaging | 14 Kg |
| Filtering Surface / Filtering Level | 100µ 1066 cm² (1066 cm²) |
| Filter Capacity | 4 L |
| Cleaning coverage | 23 cm |
Included Accessories
Control Unit
Allows to start and stop the robot, as well as the possibility to select the cleaning cycle.
Rectangular filter
Ideal filter for small and large particles such as leaves, soil or 100μ pine needles.
Base
Protects and houses the control unit from direct contact with the ground.
Optional Accessories
Double level filter: 150 / 60μ.
Double level filtration set: 150 / 60μ. Maximum filtration capacity for the finest debris.
Transport trolley
The easiest way to transport the robot, cable and power supply.
Holster
Made of waterproof nylon and PVC to protect your robot from sun, cold, rain or dirt.
Request information if you are interested
Warranty Information
3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27th. See conditions in the Warranty Document.
* 2 years + 1 additional year if the cleaner is linked to the iAquaLink™ application. See conditions in the Warranty Document.
*The equipment cannot be guaranteed to operate correctly on the bottom or on the walls if the pH level is not correct, contains slime or algae or the filters are clogged with excessive dust, and the pool has not been thoroughly cleaned beforehand, as well as any pool with uneven wall surfaces such as ribs, including pool steps.
Video Presentation Zodiac XA Pool Cleaners
Video model Zodiac XA 2010
Comparison of Zodiac XA Range
 |
 |
|
|
| Zodiac XA 2010 | Zodiac XA 3010iQ | Zodiac XA 4010iQ | |
| Article number | WR000334 | WR000330 | WR000326 |
| POOLS | |||
| Types of Swimming Pools | In-ground and above-ground with rigid walls | In-ground and above-ground with rigid walls | Buried and above ground with rigid walls |
| Shapes, Bottoms and Linings | All types of forms, bottoms and linings | All types of shapes, backgrounds and coatings | All types of shapes, backgrounds and coatings |
| Maximum Pool Size | 10 x 5 m ( 15m cable ) | 12 x 6 m (18m cable) | 12 x 6 m ( 18m cable ) |
| PERFORMANCE | |||
| Patented Cyclonic Aspiration | Yes | Yes | Yes |
| Brushes | Helical front brushes | Front and Rear Helical Brushes | Helical front and rear ends |
| Traction Systems | Tracks: 2 traction motors | Tracks: 2 traction motors | Tracks: 2 traction motors |
| Cleaning zones | Bottom / Walls / Water Line | Bottom / Walls / Water Line | Background / Walls / Water Line |
| Filtration | Single: 100µ | Double Level: 150/60µ | Double Level: 150/60µ |
| Transmission | Gears | Gears | Gears |
| Security | Beach system, automatic out-of-water shutdown, electronic motor protection | Beach system, automatic out-of-water shutdown, electronic motor protection | Beach system, automatic out-of-water shutdown, electronic motor protection |
| CLEANING CYCLES | |||
| Number of Cycles | 2 | 2 | 2 |
| Cycle "Bottom Only | Yes | Yes | Yes |
| Cycle "Background/Walls/Waterline". | Yes | Yes | Yes |
| EASY HANDLING | |||
| iAqualink AppTM | - | Yes | Yes |
| Remote Control | No | No | Yes |
| Manual adjustment of cleaning time | No | No | Yes |
| Lift System for easy water drainage | No | No | Yes |
| Transport Trolley | No | No | Yes |
| filter Illuminated | - | Yes | Yes |
| Waste display / transparent lid | Yes | Yes | Yes |
| WARRANTY | |||
| 3 years | 3 years* 3 years | 3 years* 3 years | |
