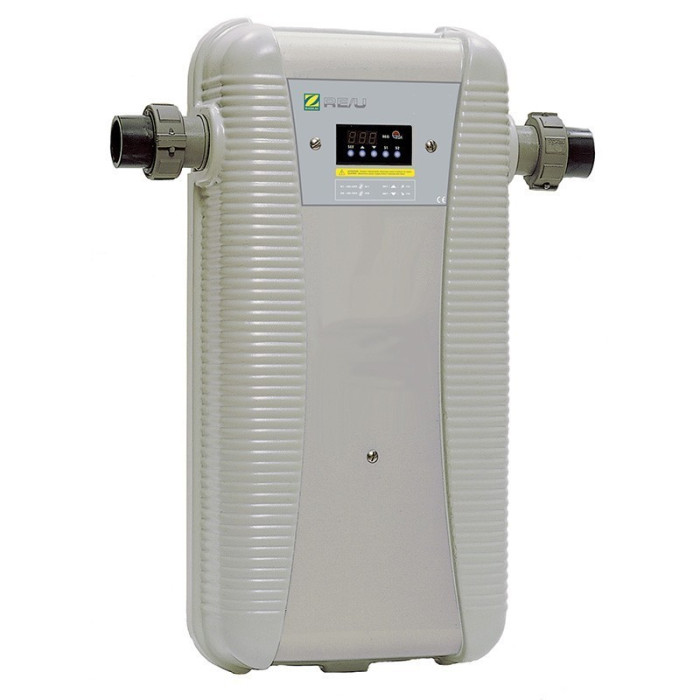

Zodiac RE/U Electric Heater
€1,995.00
In stock
SKU
Calentador Eléctrico RE/U Zodiac
Free Shipping
Best Price Online
The U-shaped electric heater is ideal for heating large pools from 80 to 160 m3.
Electric Heater RE/U Zodiac
For pools from 80 to 160 m3. Complete digital controller (thermostat, timer). Very resistant (EPDM flanges, Hypalon connections).
Power from 12 to 24 kW
Technical features
- Electric panel with regulation thermostat (± 0,5 ºC) with LCD display and timer.
- High temperature limiter.
- Flow switch.
- Luminous control switch + indicators.
- Power meters.
- EPDM flanges.
- HYPALON connections.
*Scroll horizontally to view the complete table.
| Technical features | RE/U 12 mono | RE/U 15 mono | RE/U 15 tri | RE/U 18 tri | RE/U 21 tri | RE/U 24 tri |
|---|---|---|---|---|---|---|
| Model | W40TIT12M | W40TIT15M | W40TIT15 | W40TIT18 | W40TIT21 | W40TIT24 |
| Maximum Volume (m3)* | 80 | 100 | 100 | 120 | 140 | 160 |
| Power resistors (kW)** | 6 + 6 | 6 + 9 | 6 + 9 | 9 + 9 | 9 + 12 | 12 + 12 |
| Absorbed current (A)*** | 53 | 66 | 22 | 26 | 31 | 35 |
| Power cable cross section (mm2)**** | 3 x 16 | 3 x 16 | 5 x 6 | 5 x 6 | 5 x 10 | 5 x 10 |
| Minimum flow rate (m3/h) | 5 | |||||
| Maximum flow rate (m3/h) | 22 | |||||
| Hydraulic connection | PVC Ø 50 or Ø 63 | |||||
| Weight (kg) | 12 | |||||
* Estimated average values for private pool with thermal blanket, from May 15 to September 15. Air at 15ºC
** Manufacturing tolerance of +/- 5%.
*** Tolerance of effective tension from +6 to -10%.
**** For a maximum length of 20 meters.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27.
