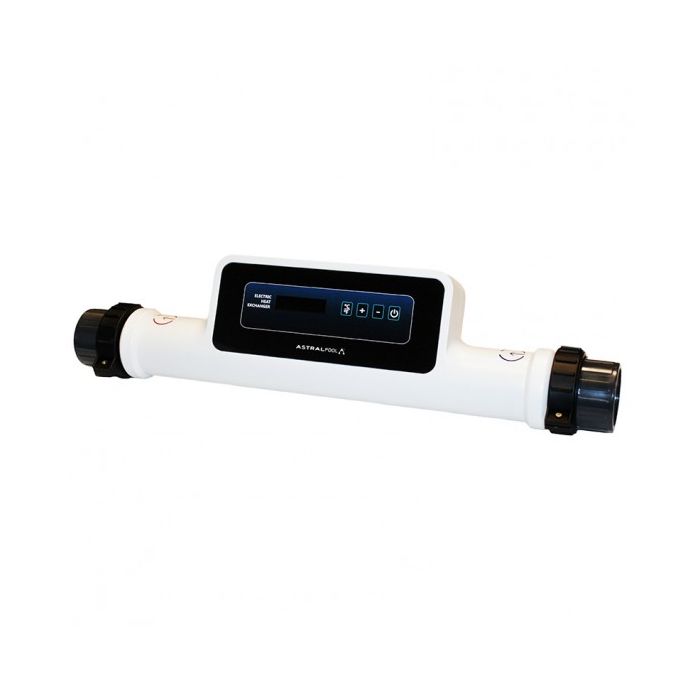

Electric heater Astralpool Compact ElectricHeat
€790.00
Out of stock
SKU
Compact ElectricHeat
Free Shipping
Best Price Online
Heat your pool water with AstralPool's Compact ElectricHeat electric pool heater and extend your swimming season. It is available in models from 3kW to 18kW.
Manuals
User manual AstralPool Compact ElectricHeat
Technical Data AstralPool Compact ElectricHeat
AstralPool Compact ElectricHeat Catalogue
Range Comparison
*Scroll horizontally to view the complete table
| Model | Compat 3 mono/tri | Compat 6 mono/tri | Compat 9 mono/tri | Compat 12 mono/tri | Compat 18 three-phase |
|---|---|---|---|---|---|
| Power (Kw) | 3 | 6 | 9 | 12 | 18 |
| Power supply (V/Ph/Hz) | 220/2/50 ó 380/4/50 | 220/2/50 ó 380/4/50 | 220/2/50 ó 380/4/50 | 220/2/50 ó 380/4/50 | 380/3/50 |
| Minimum flow rate | 2.4 M3/H | 2.4 M3/H | 2.4 M3/H | 2.4 M3/H | 2.4 M3/H |
| Maximum flow rate | 10 M3/H | 10 M3/H | 10 M3/H | 10 M3/H | 10 M3/H |
| Service pressure | 2 bar | 2 bar | 2 bar | 2 bar | 2 bar |
| Maximum pressure | 3 | 3 | 3 | 3 | 3 |
| Water connection | 50 / 63 mm | 50 / 63 mm | 50 / 63 mm | 50 / 63 mm | 50 / 63 mm |
| Maximum absorbed current (A) 220/2/50 380/4/50 |
14 | 27 | 41 | 54 | - |
| 5 | 9 | 14 | 18 | 27 | |
| Gross weight | 4,20 kg | 4,20 kg | 4.20 kg | 4.20 kg | 4.20 kg |
| Net weight | 4,80 kg | 4,80 kg | 4.80 kg | 4.80 kg | 4.80 kg |
The equipment stands out for its ease of installation and use:
- Linear installation in the return circuit, with simple and fast electrical connection system.
- Simple and clear user interface, with touch sensors and state-of-the-art OLED display.
- Compact and elegant design.
- Precise and safe electronic regulation.
- Software and hardware capable of detecting faults in the installation and in the equipment.
- Electrical actuation system, with no moving parts: more reliability and less noise.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
