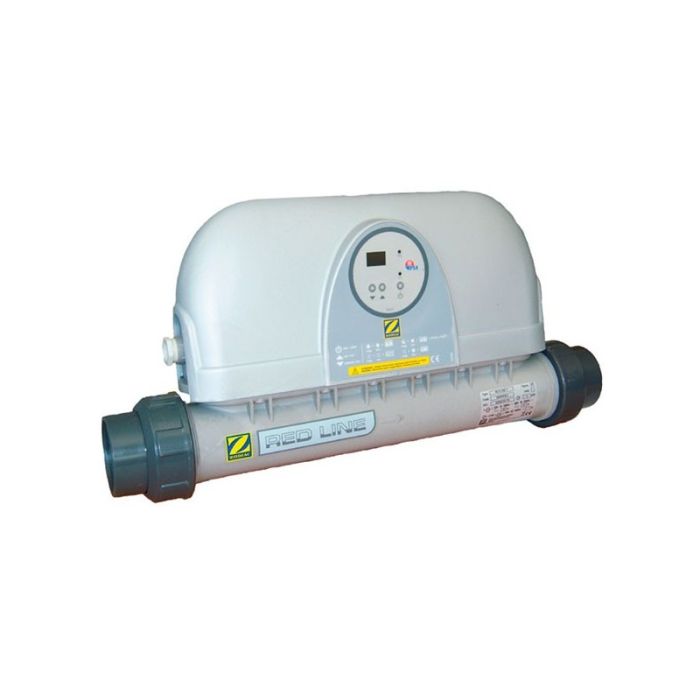

Zodiac Red Line Electric Pool Heater
Zodiac electric heater adapted and reliable for outdoor or indoor pools of less than 80 m3.
Red Line Zodiac Electric Pool Heater
- Electric panel with regulation thermostat (± 0,5 ºC) with LCD display and timer.
- High temperature limiter.
- EPDM flanges.
- HYPALON connections.
- Flow switch.
- Power contactors.
- Start/stop switches + indicators.
- Complete system, connected by cable, which does not need another control unit.
Technical features
- The best quality/price ratio
- Easy installation
- Digital thermostat
- Very resistant
- Power: from 3 to 12 Kw
- Installation: in technical room, in-line installation limiting pressure drops
- Power supply: single-phase (230 V) or three-phase (400 V)
- Temperature regulation: "precision" thermostat with digital display
- European manufacture
For what type of pools?
- Outdoor, indoor and covered pools
- Above ground pools
- Private pools
- Water volume from 20 to 80 m3(private outdoor pool, soft zone, with thermal blanket. from April 15 to October 15).
*Scroll horizontally to view the complete table.
Technical features | Red Line 3 | Red Line 6 | Red Line 9 | Red Line 12 |
---|---|---|---|---|
Model | W40RDE3 | W40RDE6 | W40RDE9 | W40RDE12 |
Max. volume m3* | 20 | 40 | 60 | 80 |
Power resistors (kW)** | 3 | 6 | 9 | 12 |
Absorbed current Three-phase 400 V (A)*** | 5 | 9 | 13 | 18 |
Three-phase 400 V power cable cross-section (mm2)**** | 5 x 2,5 | 5 x 2,5 | 5 x 4 | 5 x 4 |
Absorbed current Single phase 230 V (A)*** | 14 | 27 | 40 | - |
Power cable cross-section Single 230 V (mm2)**** | 3 x 4 | 3 x 6 | 3 x 10 | - |
Minimum flow rate (m3/h) | 5 | |||
Maximum flow rate (m3/h) | 30 | |||
Hydraulic connection | PVC Ø 50 or Ø 63 | |||
Weight (kg) | 4 |
* Private outdoor swimming pool, soft zone, with thermal blanket, from April 15 to October 15.
** Manufacturing tolerance +/- 5%.
*** Tolerance of effective tension from +6 to -10%.
**** For a maximum length of 20 meters.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27.
-
