Zodiac CNX 10 Swimming Pool Cleaner

Video Presentation Pool Cleaner Zodiac CNX 10

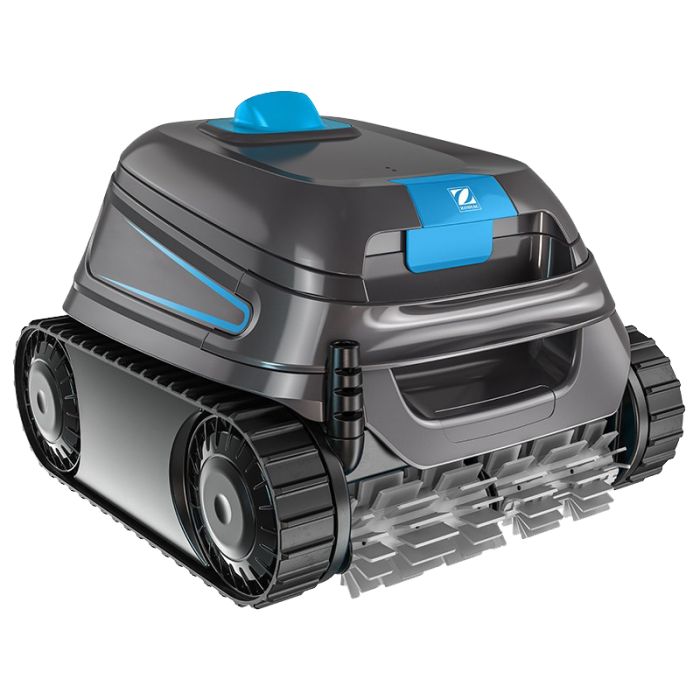

Zodiac CNX 10 robotic pool cleaner

The Zodiac CNX 10 is an agile and powerful robot pool cleaner of the latest generation for the complete cleaning of the pool: bottom, walls and waterline.

The CNX 10 is designed with the Zodiac technology that always guarantees an extraordinary performance in the cleaning of our pool: cyclonic suction, intelligent sensors, double traction motor, and the most advanced features to get a pool always impeccable.

ZODIAC CNX pool cleaner range New 2023!

Agility with maximum power

What type of pool is it recommended for?

For in-ground and above-ground pools with rigid walls.
Any type of pool
All bottoms and liners
For use in swimming pools up to 9 x 4 M
Cleaning of bottom, walls and waterline

Patented Cyclonic Vacuum Technology

Cyclonic suction via patented Zodiac technology technology provides our robot with a suction at maximum power and always constant. The CNX 10 has, as the whole range, a 23 cm suction nozzle, providing a high suction capacity at all times.

The CNX 10 is designed to clean bottom, walls and water line and is suitable for all types of pools up to a total surface of 9 x 4 meters and of different shapes (round, square or free-form) and coatings (gresite, concrete, PVC...).

Its cleaning program make the CNX 10 robot easy to use, making it a fast and efficient pool cleaner. The duration of its cleaning cycle is 2 hours.

Agility and speed of movement

It has double traction motor, intelligent sensors3 motors and the most modern features to achieve the best results in the cleaning of your pool and a movement with total freedom during its cleaning cycle.

Totally safe since it has automatic stop out of water and the elements of the electronic part of the motors are always protected.

Front propeller-shaped brushes

Your Helix-shaped front brushes for efficient suction of all debris and dirt over the entire surface of the pool.

23cm of suction

With its suction nozzle of 23 cm provides a high suction capacity of dirt in the water with a suction capacity of up to 4 liters.

Front helicoidal brush

Easy handling of the robot

It has a 100 micron particle retention filter that will ensure that your pool is always in an optimal state of cleanliness.

Easy top access to the filter with opaque gray lid allowing easy cleaning of the filter and viewing of the debris collected in the filter without having contact with the dirt.

Large capacity rigid filter: 4 liters.

15 meters of cable and only 8 kg weight which makes it very light.

Easy maintenance of the main parts (motor block, cable, etc.).

Fast water evacuation. For effortless removal of the cleaner from the pool.

OPAQUE GRAY COVER: Allows to visualize the waste collected in the filter.

TOP ACCESS TO THE FILTER Facilitates daily use and cleaning.

Accessories Included with the cleaner

Control Unit

For starting and stopping the robot.

Rectangular filter

100μ filter ideal for both small and large particles : leaves, soil or pine water debris .

Base

Allows to protect and house the control unit from direct contact with the ground.

Optional Accessories



Double level filter: 150 / 60μ.

Double level filtration set: 150 / 60μ. Maximum filtration capacity for the finest debris.
Single filter of 200μ.

Cover

Nylon and PVC waterproof cover to protect your robot from sun, cold, rain or dirt.

Request information if you are interested

Comparison of Zodiac CNX Range

	Zodiac CNX 10	Zodiac CNX 20	Zodiac CNX 25	Zodiac CNX 30 iQ	Zodiac CNX 40 iQ	Zodiac CNX 50 iQ
Article number	WR000490	WR000335	WR000450	WR000357	WR000415	WR000500
Pool size up to	9 x 4 m	10 x 5 m	10 x 5 m	12 x 6 m	12 x 6 m	12 x 6 m
Cleaning Zones	Bottom, Walls and Water Line	Bottom, Walls and Waterline	Bottom, Walls and Water Line	Bottom, Walls and Water Line	Bottom, Walls and Water Line	Bottom, Walls and Water Line
Patented Cyclonic Aspiration	Yes	Yes	Yes	Yes	Yes	Yes
Cleaning Cycles	1 bottom, walls and line	2 bottom only / bottom, walls and line	2 background / background only, walls and line	2 background / background only, walls and line	2 background / background only, walls and line	2 background / background only, walls and line
Traction Systems	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors	Tracks: 2 traction motors
Filtration	Single: 100µ	Single: 100µ	Double Level: 150/60µ	Double Level: 150/60µ	Double Level: 150/60µ	Double Level: 150/60µ
Filtration Capacity	4 liters	4 liters	4 liters	4 liters	4 liters	4 liters
Transmission	Gears	Gears	Gears	Gears	Gears	Gears
Filtration Capacity	4 liters	4 liters	4 liters	4 liters	4 liters	4 liters
Cleaning coverage (suction nozzle)	23 cm	23 cm	23 cm	23 cm	23 cm	23 cm
Cable length	15 m	15 m	15 m	18 m	18 m	18 m
Swivel	-	-	-	-	-	Yes
Security	Beach system, automatic out-of-water shutdown, electronic engine protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection	Beach system, automatic out-of-water shutdown, electronic motor protection
Motors	3	3	3	3	3	3
iAqualink AppTM	-	-	-	Yes	Yes	Yes
Remote Control ( Via App )	No	No	No	Yes* ( Start, stop and follow-up of the cleaning cycle Cleaner optimization with updates )	Yes ( Remote control. Start, stop and monitoring of the cleaning cycle Liftsystem Optimization of the cleaner with updates )	Yes ( Remote control. Start, stop and monitoring of the cleaning cycle Liftsystem Optimization of the cleaner with updates )
Cleaning time adjustment	No	No	No	No	Yes	Yes
Lift System for easy water drainage	No	No	No	No	Yes	Yes
Transport Trolley	No	No	No	No	Yes	Yes
filter Illuminated	No	No	No	Yes	Yes	Yes
Robot Weight	8 Kg	8 Kg	8 Kg	8 Kg	8 Kg	8 Kg
WARRANTY
	3 years	3 years	3 years	3 years	3 years* 3 years	3 years* 3 years

CNX 10 information and recommendations for use

• The CNX 10 is a mid-range pool cleaner that has been designed to adapt to all types of flat or gently sloping pools. In those cases in which the filtration equipment of our pool does not provide the necessary power to operate a hydraulic cleaner, it will be necessary to use an electric cleaner that can perform the maintenance of our pool satisfactorily.
• It must be taken into account that it will be the most efficient autonomous cleaning option for our pool, since it is an intelligent robot that will be able, depending on its characteristics, above any other method, to detect which areas remain to be cleaned and which is the best possible cycle to clean our pool.
• To be the most reliable product for the cleaning of our swimming pool also implies of some cares and maintenance superior to other products to lengthen its useful life and that its performance is prolonged in the time. That is why we have to take into account the following points:
• Outside the cleaning cycle, it is essential that the pool cleaner remains out of the water under cover to avoid the humidity factor and direct contact with pool chemicals.
• It is convenient to rinse the pool robot with fresh water and clean its filter after each cleaning cycle to free it from chemicals and possible obstructions. This way you will be able to perform your cleaning task at the highest level every time without any inconvenience.
• The outdoors is the pool cleaner's worst friend. It is important to keep in mind that it is a product with a high cost and therefore susceptible to theft. On the other hand, it is advisable that weather conditions such as humidity, wind and especially the sun do not come into daily contact with the robot to avoid damaging the casing and the rest of its components.
• Although a pool cleaner is designed to keep our pool clean, the disinfection of the pool will still be the most important thing and independently it will be obligatory to maintain the correct parameters of the water. The chlorine level and the Ph level of the pool must always be at the correct level if we want to submerge the robot.

Warranty information

3 years of the manufacturer according to Royal Decree-law 7/2021, of April 27.

* 2 years + 1 additional year if the cleaner is linked to the iAquaLink™ application. See conditions in the Warranty Document.


*The correct operation of the equipment cannot be guaranteed both on the bottom and on the walls as long as the pH level is not correct, it contains slime or algae or the filters are clogged by excess dust, and a total cleaning of the pool has not been previously carried out, as well as any pool with irregular surfaces on the walls such as ribs, including pool steps.
