AstralPool 512x512 PRFV plastic concrete grid drain
€509.00
In stock
Only %1 left
SKU
C-28709
Free Shipping
Best Price Online
512 x 512 mm polyester and fiberglass drain for AstralPool concrete pools.
Plastic grid.
Available in 5 outlet diameters for gluing: Ø 110, 125, 140, 160 and 200 mm.
Manuals
AstralPool Drains Technical Sheet
AstralPool Sump Installation Manual

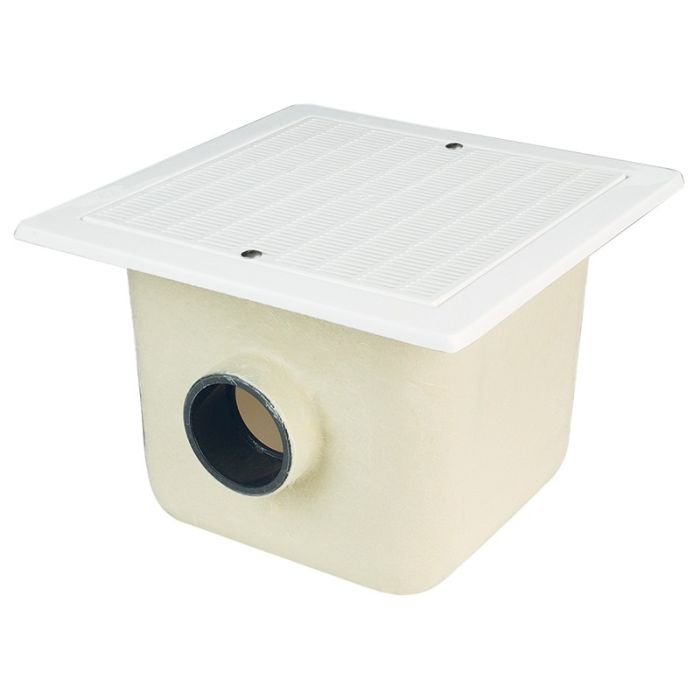

AstralPool 512x512 PRFV plastic grating concrete floor drain
AstralPool fiberglass reinforced polyester drain 512x512 mm for concrete pools.
- Finished with gel-coat.
- ABS plastic grating with anti-solar radiation protection (also available with stainless steel grating).
- With holes < 8 mm.
- Optional hydrostatic valve.
- Maximum recommended flow according to EN 13451-1 standard.
Outlet connection for gluing available in 5 diameters:
- Ø 110 mm - Flow rate: 33 m³/h
- Ø 125 mm - Flow: 43 m³/h
- Ø 140 mm - Flow rate: 54 m³/h
- Ø 160 mm - Flow rate: 70 m³/h
- Ø 200 mm - Flow rate: 100 m³/h
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
