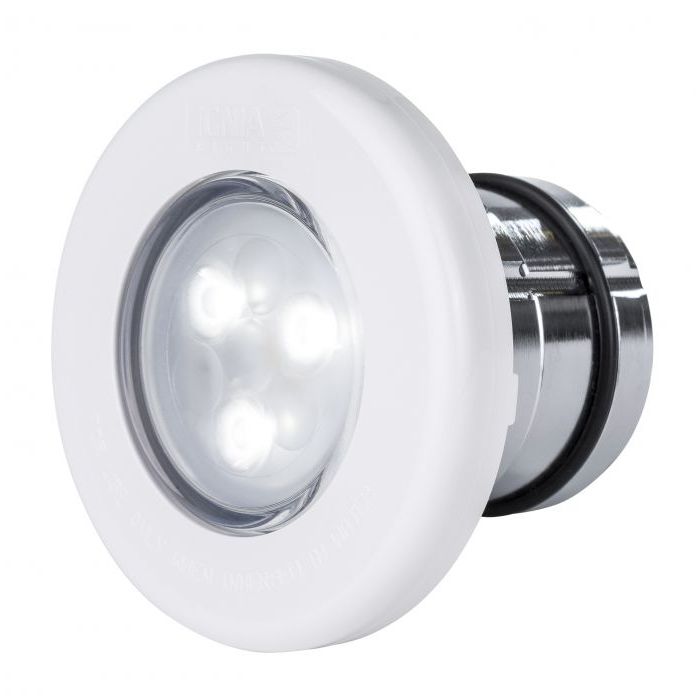

LumiPlus Mini 2.11 LED spotlight with quick coupling
LumiPlus Mini LED floodlight 2.11 with quick coupling, with higher light intensities than the previous range and higher energy efficiency.
Manuals
AstralPool LumiPlus Projectors Catalogue
Installation Manual LumiPlus Mini AstralPool
LumiPlus Mini AstralPool Technical Characteristics
LumiPlus Mini Stainless Steel Trim Spares AstralPool
LumiPlus Mini ABS Trim Spares AstralPool
LumiPlus Mini AstralPool Dimension Sheet
LumiPlus Mini 2.11 LED spotlight quick coupling
New LumiPlus Mini 2.11 LED projector with quick coupling, with higher light intensities than the previous range and greater energy efficiency.
Features
- Nominal Voltage: 12 V AC (RGB and White)
- Protection: IPX8
- Cable: 2,5m. H07RN-F 2x1,5 mm2
- Can be installed both in and out of water.
- The RGB projector can be installed with the 27818 Modulator and control up to 900 VA of power.
- In installations with DMX control it must be installed together with the DMX Power Supply 52142 (up to 9 projectors).
- Quick coupling with 63 mm wall bushing.
To properly illuminate a pool is recommended: Install a spotlight of the LumiPlus Mini 2.11 family every 5 m2 of water surface.
Note:Recommendation valid for pools with light colors. In pools with dark colors or stainless steel pools, it is recommended to over-dimension the proportion of spotlights per m2.
| Code | Color Light | Trim | Consumption | Luminous flux |
| 52130 | White Light | ABS | 4 W (6 VA) | 315 lm |
| 52131 | White Light | Inox | 4 W (6 VA) | 315 lm |
| 52124 | RGB | ABS | 4 W (7 VA) | 186 lm |
| 52125 | RGB | Inox | 4 W (7 VA) | 186 lm |
| 52136 | RGB-DMX | ABS | 4 W (4 VA) | 186 lm |
| 52137 | RGB-DMX | Inox | 4 W (4 VA) | 186 lm |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
-
