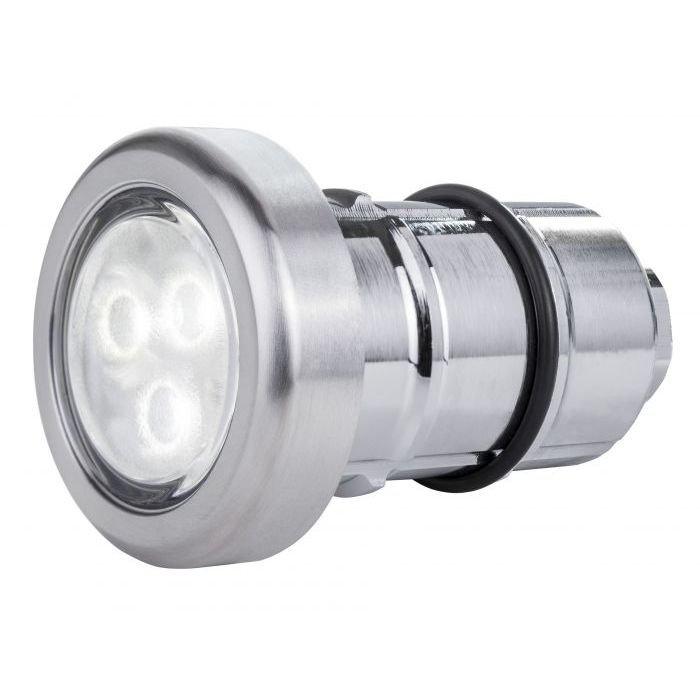

AstralPool LumiPlus Micro 2.11 LED spotlight 2.11 quick coupling
LumiPlus Micro LED floodlight, available with RGB or white light. Quick coupling for swimming pools and Spa's.
Two-wire connection and compatible with all LumiPlus control systems.
Manuals
AstralPool LumiPlus Projectors Catalogue
LumiPlus Micro Installation Manual AstralPool
LumiPlus Micro AstralPool Technical Characteristics
LumiPlus Micro AstralPool Projector Spare Parts
LumiPlus Micro 38814 AstralPool Dimension Sheet
Dimension Sheet LumiPlus Micro 38815 AstralPool
AstralPool LumiPlus Micro LED Projector with quick coupling
- Rated Voltage: 12 V AC (RGB and White)
- Protection: IPX8
- Cable: 2,5m. H07RN-F section 2x1,5 mm2
- Can be installed both in and out of water.
The RGB projector can be installed with the 27818 Modulator and control up to 900 VA of power.
In installations with DMX control it must be installed together with the DMX Power Supply 52142 (up to 9 projectors).
To correctly illuminate a swimming pool it is recommended: Install a spotlight of the LumiPlus MICRO family every 5 m2 of water surface.
Note: Recommendation valid for pools with light colors. In pools with dark colors or stainless steel pools, it is recommended to over-dimension the proportion of spotlights per m2.
| Code | Color Light | Trim | Consumption | Luminous flux | |||||
| 38814 | White Light | ABS | 6 W (9 VA) | 315 lm | 38816 | White Light | Inox | 6 W (9 VA) | 315 lm |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27.
-
