AstralPool transversal grating plate

Manuals

AstralPool Overflow Grilles Catalogue

Dimensions AstralPool Transversal Grating

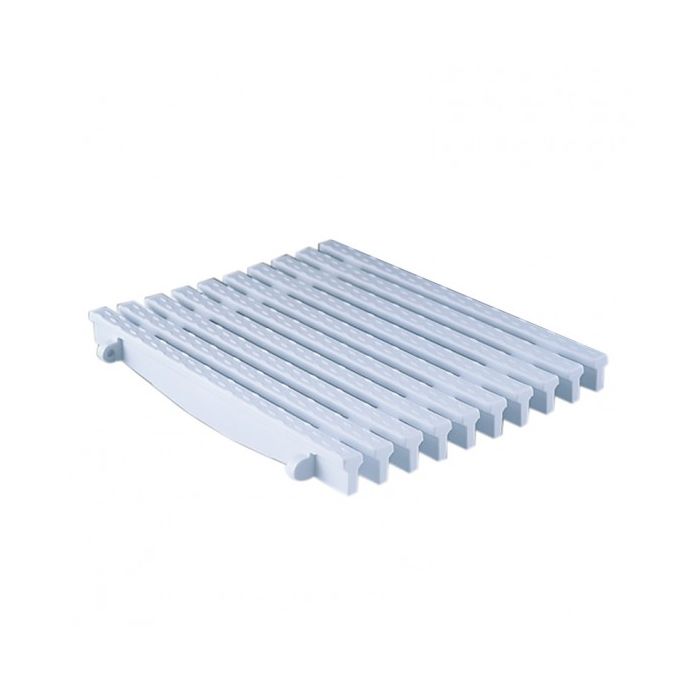

AstralPool Cross Grating Plate

They are made of PP, resistant to the action of UV rays, with anti-slip surface, high mechanical resistance and unalterable to chemical and atmospheric agents.

Formed by module plates for straight sections, assembled together by the clicked union (male-female), which allows a certain elasticity of assembly, while absorbing possible expansions, effect of the thermal differences to which the grid is exposed.

Certified according to EN-13451-1 safety standard.

(5 units = 0.975 m).

Available in the following sizes:

• 00217 - height 22 mm, width 245 mm.
• 00218 - height 22 mm, width 295 mm
• 00219 - height 22 mm, width 335 mm

Note: For all grating models it is necessary to construct the channel 5 mm wider than the grating, so that the grating can easily adapt and avoid possible expansion.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
