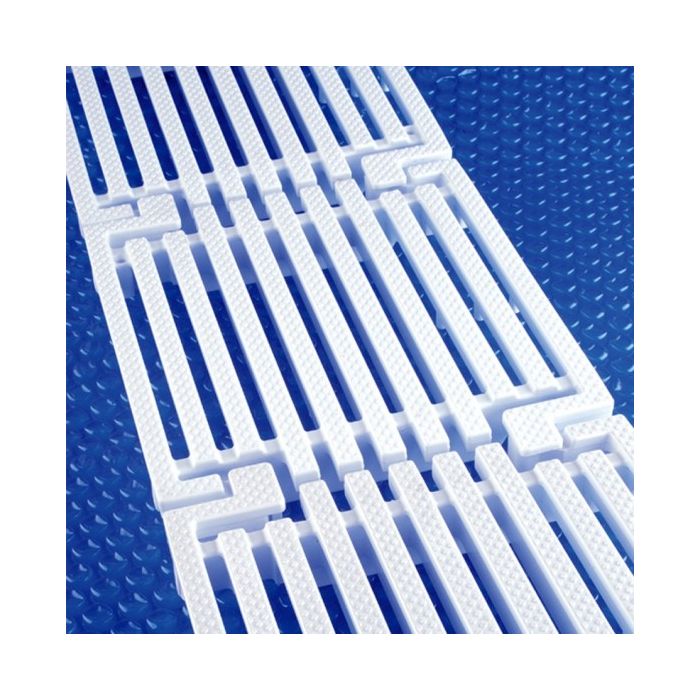

AstralPool Longitudinal Grid Plate

AstralPool longitudinal grating plate

Manuals

AstralPool Overflow Grilles Catalogue

AstralPool Cross Grating Plate

They are made of PP, resistant to the action of UV rays, with anti-slip surface, high mechanical resistance and unalterable to chemical and atmospheric agents.

Union by male-female anchorages of easy and fast assembly (5 units = 1024 m).
The flexibility of its units allows radii of up to 5 m.

Certified by the EN-13451-1 safety standard.

Available in the following sizes:

• 05581 - height 24 mm, width 195 mm.
• 05582 - height 24 mm, width 245 mm
• 05583 - height 24 mm, width 295 mm
• 05584 - height 24 mm, width 345 mm

Note: For all grating models it is necessary to construct the channel 5 mm wider than the grating, so that the grating can easily adapt and avoid possible expansion.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
