AstralPool transversal grating for curves

Manuals

AstralPool Overflow Grating Catalogue

Dimensions AstralPool Cross Grating

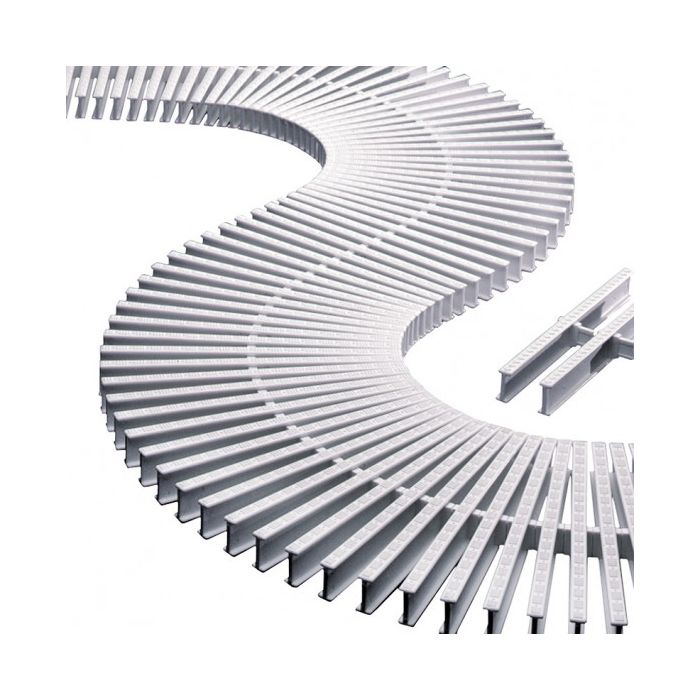

AstralPool Cross Grating for curves

Made of PP (Polypropylene) stabilized to the action of UV rays.
White color in all the range.

Union by tightening coupling between modules (45 units per m).

• 11107 - height 22 mm, width 195 mm
• 11108 - height 22 mm, width 245 mm
• 19202 - height 22 mm, width 295 mm
• 19203 - height 22 mm, width 335 mm
• 00220 - height 35 mm, width 195 mm
• 00221 - height 35 mm, width 245 mm
• 00222 - height 35 mm, width 295 mm
• 00223 - height 35 mm, width 335 mm

Note:For all grating models it is necessary to construct the channel 5 mm wider than the grating, so that the grating can easily adapt and avoid possible expansion.

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
