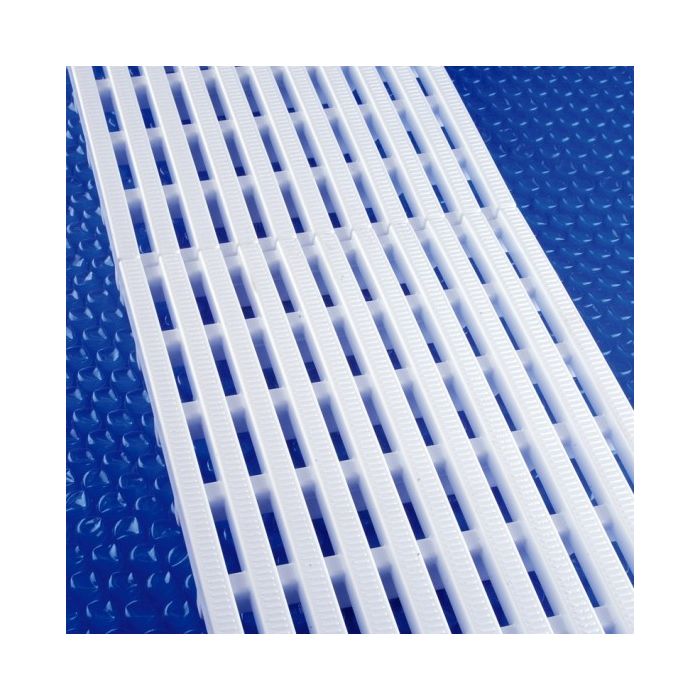

AstralPool Perimeter Grating

The longitudinal conception of this model ensures the complete assimilation of the water sheet, preventing it from passing through the multiple transversal channels that it finds on its way, thus keeping the floor surrounding the pool practically dry.

Available in modules of 500 mm in length, height 22 mm and width 195 mm with union by male-female anchorages of easy and fast assembly.

Manufactured in PP, resistant to the action of UV rays, with non-slip surface, high mechanical resistance and unalterable to chemical and atmospheric agents.
Certified by safety standard EN-13451-1.

Note:For all grating models it is necessary to construct the channel 5 mm wider than the grating, so that the grating can easily adapt and avoid possible expansion.

• 28664 - 500 mm length, height 22 mm, width 195 mm

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27.
