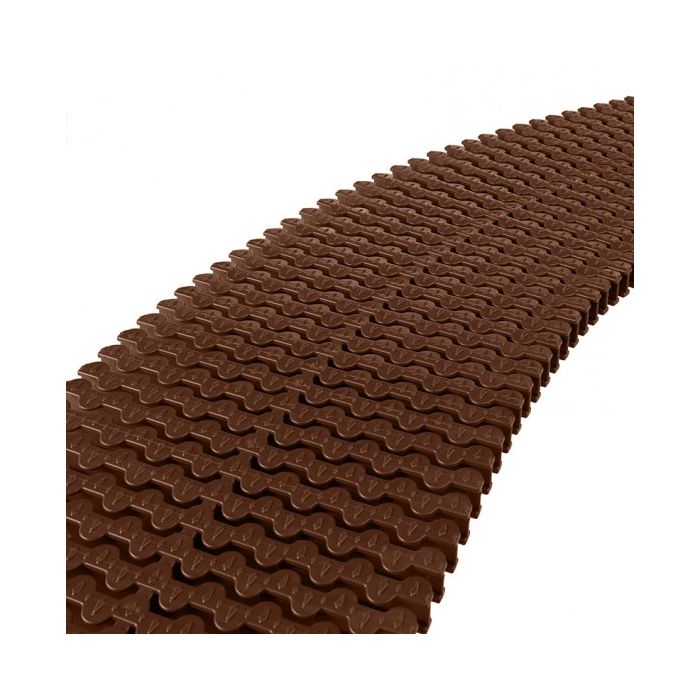

Brown transverse grid module for AstralPool curves

Manuals

AstralPool Overflow Grilles Catalogue

AstralPool Transversal Overflow Grilles Characteristics Sheet

AstralPool brown transversal grating module for AstralPool curves.

The range is composed of 5 colors for a better adaptability to the aesthetic needs of your pool.
A real advantage for the construction of the pool overflow.

General characteristics

• Product certified by the EN-13451-1 safety standard.
• Made of polypropylene for protection against UV rays.
• Union by tightening coupling between modules.
• The modules are reversible between them in the 35 mm height model.
• 52 units per linear meter.

It is recommended to build the overflow channel 5 mm wider than the grating so that it can be easily adapted and avoid possible dilatations.

In addition, the range offers two heights and five different lengths of sizes.

• 34190CL109 - height 22 mm, width 195 mm
• 34191CL109 - height 22 mm, width 245 mm
• 34192CL109 - height 22 mm, width 295 mm
• 34193CL109 - height 22 mm, width 355 mm
• 34194CL109 - height 35 mm, width 195 mm
• 34195CL109 - height 35 mm, width 245 mm
• 34196CL109 - height 35 mm, width 295 mm
• 34197CL109 - height 35 mm, width 355 mm

Warranty information

3 years manufacturer's warranty according to Royal Decree Law 7/2021 of April 27.
