Hayward Pro Series Filter
€409.00
In stock
Only %1 left
SKU
Filtro Serie Pro
Free Shipping
Best Price Online

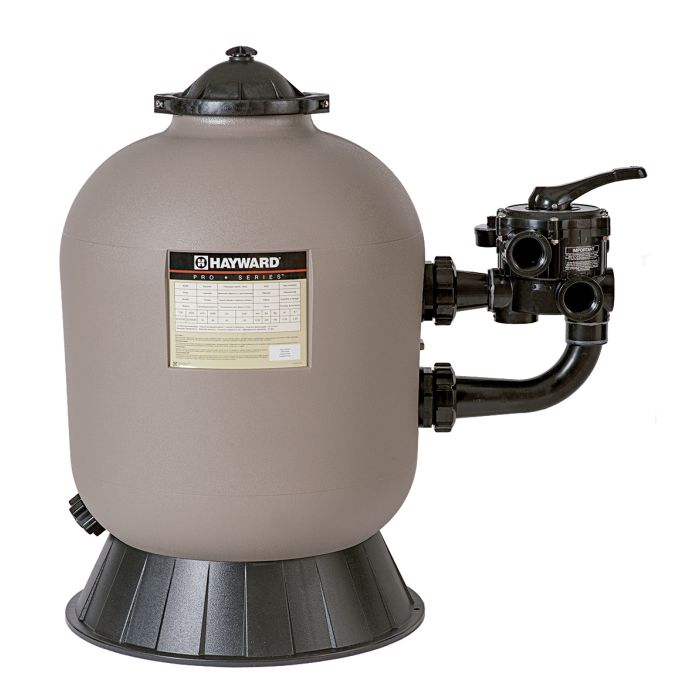

Blown sand filter manufactured by Hayward, in this case with side outlet. Manufactured in one piece plastic material without joints by blowing process.
Manuals
User Manual
Technical Data Sheet
Dimensions
| Code | S210SXE | S244SXE | S0310SXE | S0360SXE |
|---|---|---|---|---|
| Ø D (mm) | 510 | 610 | 760 | 900 |
| A (mm) | 510 | 610 | 762 | 895 |
| B (mm) | 482 | 573 | 725 | 880 |
| C (mm) | 520 | 520 | 585 | 585 |
| D (mm) | 890 | 895 | 1070 | 1230 |
| E (mm) | 803 | 910 | 1008 | 1147 |
| Connections | 1½" | 1½" | 2" | 2" |
| Flow rate (m3/h) | 11 | 14 | 22 | 30 |
| Sand load (kg) | 100 | 150 | 250 | 350 |
Hayward Blowing Filter Lateral Valve
Blown sand filter manufactured by Hayward, in this case with side outlet.
Manufactured in plastic material in one piece without joints by blowing process.
Equipped with pressure gauge and automatic drain.
Selector valve included.
- High density polyethylene filter with automatic drain.
- 6-position top or side valve with pressure gauge.
- Anti-corrosion tank, ABS injected base for perfect filter seating
- 30 m3/h -350 kilos sand
- Connections: 2
- 10 years warranty for the tank
Dimensions
- Maximum diameter of the tank-895 cm
- Maximum diameter with valve mounted-1230 cm
- Base diameter-585 cm
- Maximum height-1147 cm
Warranty Information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
