AstralPool Berlin Filter
The Berlin filter by AstralPool has guaranteed for more than two decades an efficient filtration for all types of private and public pools worldwide. They are available in diameters ranging from 500 mm to 900 mm. They are highly resistant thanks to their winding finish.
Available without selector valve, with bayonet valve or with screw valve.
Manuals
Astrapool Berlin Filter Catalogue
Table of spare parts Astralpool Berlin Filter
Dimensions table Astralpool Berlin Filter
Technical sheet Astralpool Berlin Filter
Dimensions
*Scroll horizontally to view the complete table.
| With side valve | Without valve | |||||
|---|---|---|---|---|---|---|
| Code | 00541 | 00542 | 00543 | 00544 | ||
| Ø D (mm) | 500 | 600 | 750 | 900 | ||
| H (mm) | 805 | 910 | 1050 | 1145 | ||
| M (mm) | 450 | 505 | 610 | 685 | ||
| N (mm) | 325 | 380 | 380 | 415 | ||
| Connections | 1½” | 1½” | 2” | 2½” | ||
| Flow rate m3/h at 50 m3/h/m2 | 9 | 14 | 21 | 30 | ||
| Pool (volume) m3 | 50-75 | 75-115 | 115-170 | 170-240 | ||
| Sand load (kg) | 100 | 175 | 300 | 525 | ||
| Maximum working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 | ||
| Net weight (kg) | 14,6 | 18,6 | 27,5 | 43,4 | ||
| Packing volume (m3) | 0,23 | 0,36 | 0,26 | 0,99 | ||

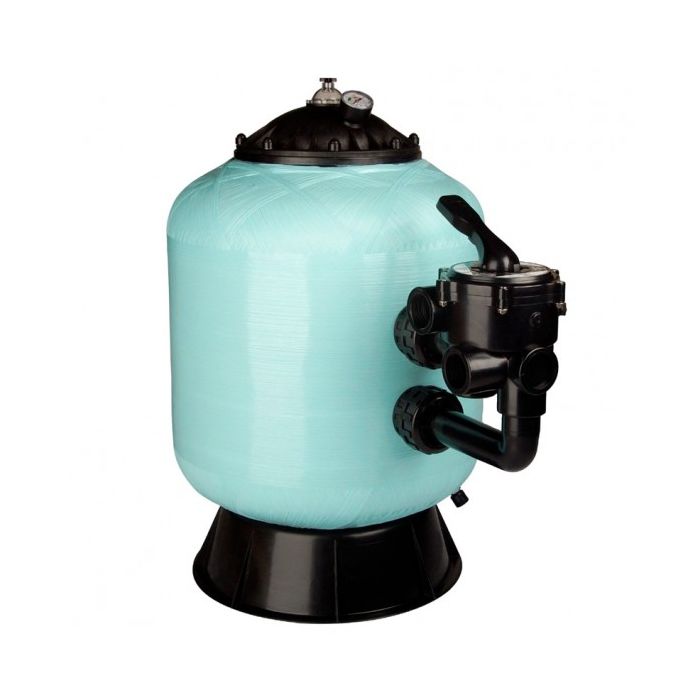

AstralPool Berlin Winding Filter
AstralPool's Berlin filter has guaranteed for more than two decades an efficient filtration for all types of private and public pools worldwide.
They are available in diameters ranging from 500 mm to 900 mm.
Highly resistant thanks to their winding finish. Glossy satin finish, with anti-dust protection by means of a "flash" of transparent polyurethane varnish, cover Ø 230 mm with screw closure, injected.
Equipped with manual air and water purge and pressure gauge and side selector valve.
Characteristics
- For years, the most demanding customers have been betting on the Berlin range of sand filters by AstralPool (formerly Servaqua), which reaffirms the confidence and security that their performance provides. For more than two decades, the Berlin filter has guaranteed efficient filtration for all types of private and public pools worldwide.
- Its winding finish provides great resistance, and its blue satin finish gives it a much more attractive appearance compared to other filters.
- Berlin filters are available in diameters ranging from 500 mm to 1200 mm, so they can be installed in large volume pools.
- Sand filters wound in polyester resin and fiberglass.
- Ø 240 screw-locking cover, injected for diameters up to 900 mm. Ø 400 screw-on lid, in polyester and fiberglass for Ø 1050 and Ø 1200 mm.
- Satin blue finish, with anti-dust protection by means of a "flash" of transparent polyurethane varnish, for Ø 500, Ø 600, Ø 750 and Ø 900.
- Mounted with manifolds and diffuser in unalterable plastic materials PVC and PP.
- Equipped with pressure gauge and manual air and water drain. For Ø 900, Ø 1050 and Ø 1200 models, it incorporates a 2" sand trap.
- 6 (+1) way side selector valve for filtration, washing, rinsing, recirculation, emptying and closing operations, on Ø 500, Ø 600 and Ø 750 models. - Maximum filtration speed: 50 m3/h/m2
- Maximum working pressure: 2.5 kg/cm2. - Internal lining in HDPE (polyethylene), blown for Ø 500 and Ø 600 mm, thermoformed ABS for Ø 750 and Ø 900 mm, polyester.
- Filter foot made of plastic for models up to 750 mm diameter and polyester and fiberglass for larger diameters.
- Available without selector valve, with bayonet valve or with screw valve.
Benefits
- Better finish. In addition to its winding finish, which provides greater resistance and safety, its satin-finished, blue color makes it stand out from conventional filters.
- Easy access. With a larger mouth diameter (400 mm) for 1050 mm and 1200 mm diameter filters, if necessary, the inside of the filter can be accessed for handling.
Warranty information
3 years from the manufacturer according to Royal Decree-Law 7/2021, April 27th.
