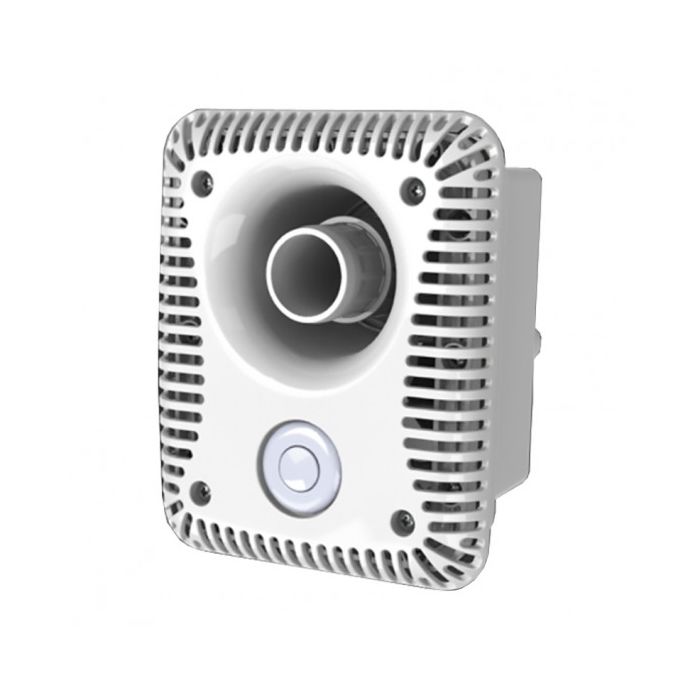

Marlin XS AstralPool countercurrent equipment
Marlin XS is an AstralPool counter-current swimming nozzle set with a modern and attractive design that makes it an element of added value to incorporate in the pool. It incorporates therapeutic, training and recreational aquatic activities in any type of pool.
Composed of front cover, nozzle set, stop/start button and housing box.
Manuals
AstralPool Countercurrent Swimming Equipment Catalogue
Marlin Countercurrent Swimming Equipment Dimensions XS AstralPool
Marlin XS AstralPool Countercurrent Swimming Equipment Spares
Marlin XS AstralPool counter-current equipment
The MARLIN XS equipment for counter-current swimming makes it possible to customize therapeutic, training and recreational aquatic activities in any type of pool. Its compact design made of plastic material and its reduced size allow its installation in a minimum of space and facilitate its complete adaptation to the surface of curvilinear pools (oval, kidney, polygonal, etc.) as well as multiple installations. The adjustable nozzle allows easy adjustment of the water flow to different types of exercise.
Compact design in plastic material that facilitates its installation in reduced spaces and allows its complete adaptation to all types of pools.
Highly competitive for its hydraulic performance.
Designed to be installed in both concrete and prefabricated pools (liner).
For its installation it is supplied with sealing elements, gaskets and cable glands.
It does not include pump or control cabinet.
It is recommended to install with vertical impulsion pump from 2 hp to 3.5 hp, with the corresponding control panel.
Necessary accessories for installation (not included in the kit):
| Position | Quantity | Designation | Code |
| 1 | 1 | PVC ball valve Ø63 mm | 02458 |
| 2 | 2 | PVC 90º elbow Ø63 mm | 01717 |
| 3 | 2 | Conical reduction Ø90-75x63 mm | 01993 |
| 4 | 1 | 90º PVC elbow Ø75 mm | 01718 |
| 5 | 1 | PVC ball valve Ø75 mm | 02459 |
| 6 | 1 | Conical reduction Ø110-90x75 mm | 01997 |
| - | - | PVC pipe Ø63 mm PN-6 | 02692 |
| - | - | PVC pipe Ø75 mm PN-6 | 02693 |
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
