Hydra Pump Electrical Panel

Name: Hydra Pump Electrical Panel
Brand: Hydra
SKU: HY-CEMH-001
Price: 145 EUR
Availability: InStock

Be the first to review this product

€145.00

In stock

SKU

HY-CEMH-001

¿Quieres recibirlo del Thursday 26 de December al Tuesday 31 de December?. Más información. Cómpralo antes de

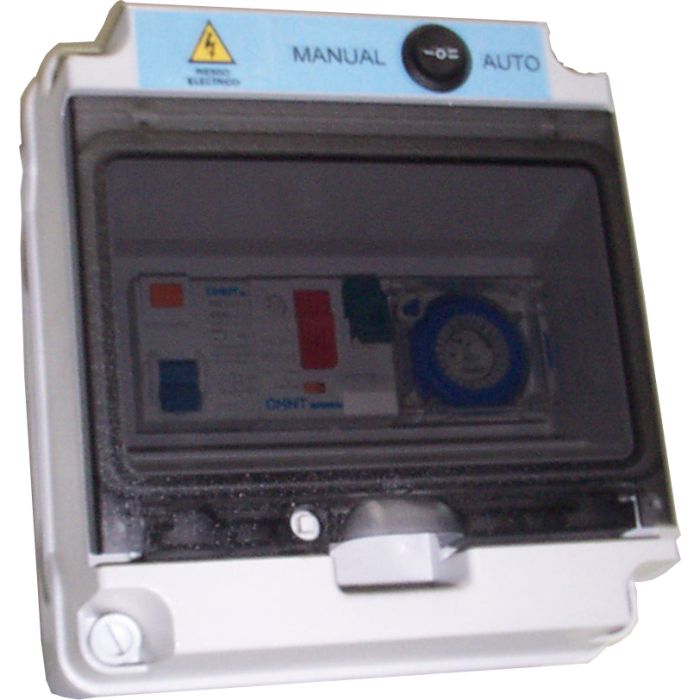

Hydra Electrical Panel for Pump with transformer for swimming pool pump.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Range Comparison

*Scroll horizontally to view the complete table.

	HYDRA07	HYDRA08	HYDRA15	HYDRA16	HYDRA23	HYDRA24
Polycarbonate Enclosure	170x190x120 IP65	170x190x120 IP65	375x245x145 IP65	375x245x145 IP65	375x245x145 IP65	375x245x145 IP65
Supply voltage	230 VAC 2 poles	230 VAC 2-pole	230 VAC 2-pole	230 VAC 2-pole	230 VAC 2-pole	230 VAC 2-pole
Equipment protection	Bipolar differential 40A high sensitivity 30mA	Bipolar differential 40A high sensitivity 30mA	Bipolar differential 40A high sensitivity 30mA	Bipolar differential 40A high sensitivity 30mA	Bipolar differential 40A high sensitivity 30mA	Bipolar differential 40A high sensitivity 30mA
Pump protection	Motor protection adjustable in intensity, according to power.	Motor protection adjustable in intensity, according to power.	Motor guard adjustable in intensity, according to power.	Motor guard adjustable in intensity, according to power.	-	-
Regulation	4 - 6,3A	6,3-10A	4 - 6,3A	6,3-10A	4 - 6,3A	6,3-10A
Power	3/4 - 1 HP	1.5 - 2 HP	3/4 - 1 HP	1.5 - 2 HP	3/4 - 1 HP	1.5 - 2 HP
Pump control	Manual operation by means of an external selector. Automatic operation by 24h timer	Manual operation by means of external selector. Automatic operation by 24h timer	Manual operation by means of external selector. Automatic operation by 24h timer	Manual operation by means of external selector. Automatic operation by 24h timer	Manual operation by means of external selector. Automatic operation by 24h timer	Manual operation by means of external selector. Automatic operation by 24h timer
Transformer	-	-	Safety shielded 300VA 230 AC. Output 12V AC	Shielded safety transformer 300VA 230 AC. Output 12V AC	Safety shielded 300VA 230 AC. Output 12V AC	Safety shielded 300VA 230 AC. Output 12V AC
Spotlight protection	-	-	10A circuit breaker in primary.	10A circuit breaker in primary.	10A circuit breaker in primary.	10A circuit breaker in primary.
Maneuvering of spotlights	-	-	Two-position switch.	Two-position switch.	Two-position switch.	Two-position switch.
