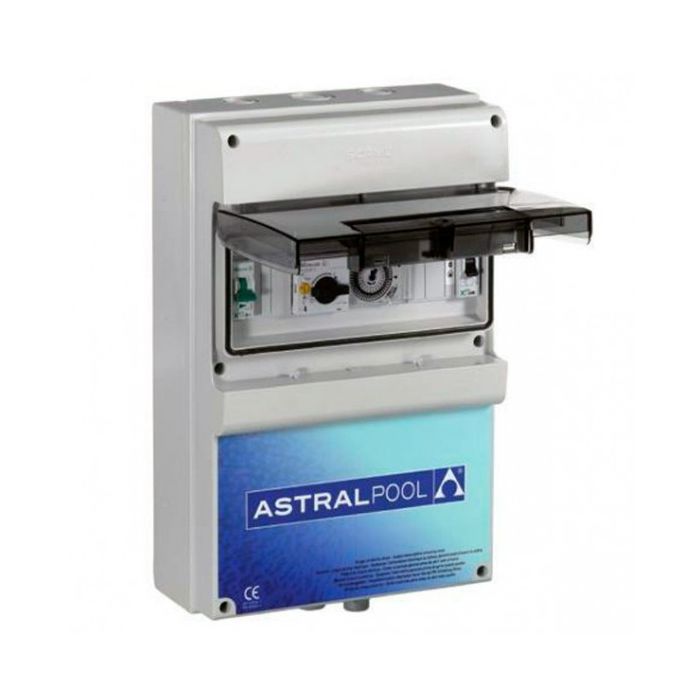

AstralPool control cabinet for pump protection and lighting control

Name: AstralPool control cabinet for pump protection and lighting control
SKU: armario maniobra protección bomba control luces subacuáticas
Price: 246.9 EUR
Availability: OutOfStock

Be the first to review this product

€246.90

Out of stock

SKU

armario maniobra protección bomba control luces subacuáticas

¿Quieres recibirlo del Wednesday 18 de February al Monday 23 de February?. Más información. Cómpralo antes de

IP-65 protection. Transparent glass with lock and key.

Manuals
Range comparison

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Range Comparison

Type	Code	Current Range	Power 1-phase 230V	Power 3-phase 400V	Power 3-phase 230V
A 1 underwater light	25733	1.6A/2.5A	¼CV	¾CV/1CV	½CV
B 1 underwater light	25734	2,5CV/4A	½CV	1,5CV/2CV	¾CV/1CV
C 1 underwater light	25735	4A/6,3A	¾CV/1CV	3HP	1.5HP
D 1 underwater light	25736	6A/10A	1.5HP	4HP	2HP/3HP
A 2 underwater lights	25737	1.6A/2.5A	¼CV	¾CV/1CV	½CV
B 2 underwater lights	25738	2,5CV/4A	½HP	1,5CV/2CV	¾CV/1CV
C 2 underwater lights	25739	4A/6,3A	¾CV/1CV	3HP	1.5HP
D 2 underwater lights	25740	6A/10A	1.5HP	4HP	2CV/3CV

Manuals

Installation manual Pump protection control cabinet
Spare parts manual Control cabinet for pump protection
Technical table Control cabinet for pump protection

All products are compatible with

220/240V 1-phase (P+N+T) 50Hz/60Hz
380/415V 3-phase (3P+N+T) 50Hz/60Hz
220/230V 3-phase (3P+T) 50Hz/60Hz

24H control clock with programming steps every ¼h.Connection for remote control of the pump (run/stop,...) for auxiliary equipment (cold detector, level control...)

All products are delivered with

Wiring diagram
Wiring diagram
Installation instructions
CE conformity certificate
Cable gland for each cable inlet and outlet.
Screws and plugs (4) for wall mounting.

Depending on the nominal current of the filtration pump, the type of cabinet must be selected

Thermomagnetic circuit breaker protection (1.6 to 10A) contactor, 24 h programming clock.
3 positions: Auto / 0 / manual. 12V 630VA.
Protected output for 2 underwater lights.

2 years warranty according to manufacturer's conditions.
