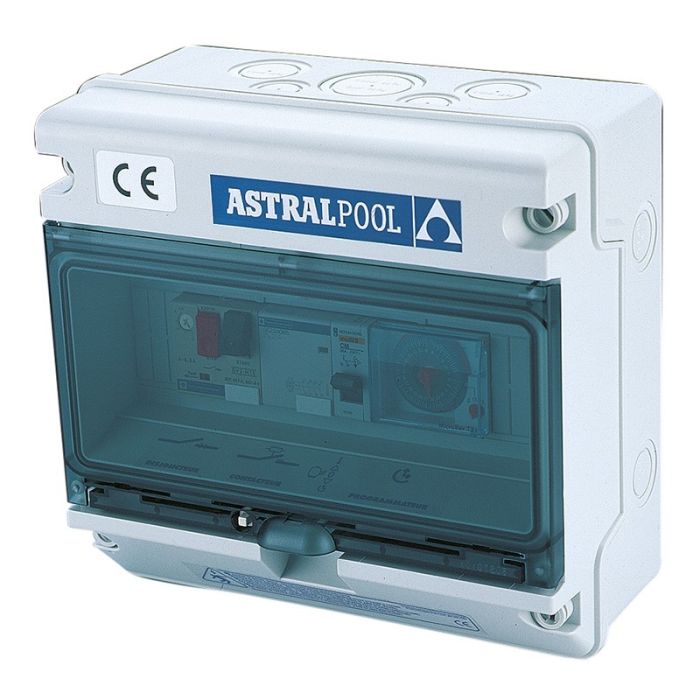

AstralPool control cabinet for pump protection
€169.00
In stock
SKU
AS-MAPRO001
Best Price Online
Pump protection IP-65 protection. Transparent glass with lock and key.
Range Comparison
| Type | Code | Current Range | Power 1-phase 230V | 3-phase power 400V | 3-phase power 230V |
|---|---|---|---|---|---|
| A | 25717 | 1,6A/2,5A | ¼CV | ¾CV/1CV | ½HP |
| B | 25718 | 2.5HP/4A | ½CV | 1.5HP/2HP | ¾CV/1CV |
| C | 25719 | 4A/6.3A | ¾CV/1CV | 3CV | 1.5HP |
| D | 25720 | 6A/10A | 1.5HP | 4HP | 2CV/3CV |
Manuals
Installation manual Control cabinet for pump protection
Spare parts manual Pump protection control cabinet
Technical table Control cabinet for pump protection
AstralPool control cabinet for pump protection
Transparent glass with lock and key. All products are compatible with:
- 220/240V 1-phase (P+N+T) 50Hz/60Hz.
- 380/415V 3-phase (3P+N+T) 50Hz/60Hz
- 220/230V 3-phase (3P+T) 50Hz/60Hz
24H control clock with programming steps every ¼h.Connection for remote control of the pump (run/stop,...) for auxiliary equipment (cold detector, level control...).
All products are delivered with:
- Wiring diagram
- Connection diagram
- Installation instructions
- CE Certificate of Conformity
- Cable gland for each cable inlet and outlet.
- Screws and plugs (4) for wall mounting.
- Depending on the nominal current of the filtration pump, the type of cabinet must be selected:
- Thermomagnetic circuit breaker protection (1.6 to 10A) contactor, 24 h programming clock with 3 positions: Auto / 0 / manual
Referenced SKUs:
- 25717
- 25718
- 25719
- 25720
Warranty information.
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27.
