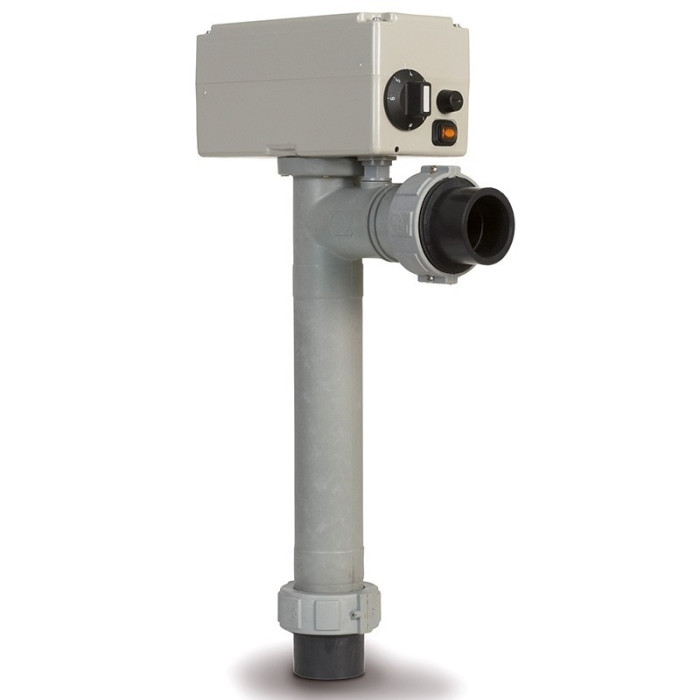

Electric Heater Zodiac RE/L
€895.00
In stock
SKU
Calentador Eléctrico Zodiac RE/L
Free Shipping
Best Price Online
Electric heater adapted to above ground pools, spas, medical pools from 20 to 80 m3.
Electric Heater Zodiac RE/L
- Easy to adapt for above ground pools.
- Easy installation
- Mechanical thermostat
- Power: from 3 to 12 Kw
- Installation: Hydraulic connection. This heater is recommended for narrow technical rooms.
Power supplysingle phase (230 V) or three phase (400 V) - Temperature regulation: thermostat
- European manufacture
For what type of pools?
- Outdoor, indoor and covered pools
- Adapted to the filtration of above-ground pools
- Private pools
- Water volume from 20 to 80 m3
Technical characteristics
- Electric panel with flow switch.
- Mechanical regulation thermostat 16-40°C.
- EPDM flanges - HYPALON connectors.
- High temperature limiter.
- Power contactors.
- Warranty 2 years.
*Scroll horizontally to view the complete table.
| Technical features | RE/LE 3 | RE/LE 6 | RE/LE 9 | RE/LE 12 |
|---|---|---|---|---|
| Model | W40LE03 | W40LE06 | W40LE09 | W40LE12 |
| Max. volume m3*. | 20 | 40 | 60 | 80 |
| Power resistors (kW)** | 3 | 6 | 9 | 12 |
| Absorbed current Three-phase 400 V (A)*** | 5 | 9 | 13 | 18 |
| Three-phase 400 V power cable cross section (mm2)**** | 5 x 2,5 | 5 x 2,5 | 5 x 4 | 5 x 4 |
| Absorbed current Single phase 230 V (A)*** | 14 | 27 | 40 | - |
| Power cable cross-section Single 230 V (mm2)**** | 3 x 4 | 3 x 6 | 3 x 10 | - |
| Minimum flow rate (m3/h) | 5 | |||
| Maximum flow (m3/h) | 22 | |||
| Hydraulic connection | PVC Ø 50 or Ø 63 | |||
| Weight (kg) | 4 | 4 | 5 | 5 |
* Estimated average values for private pool with thermal blanket, from May 15 to September 15. Air at 15ºC
** Manufacturing tolerance of +/- 5%.
*** Tolerance of effective tension from +6 to -10%.
**** For a maximum length of 20 meters.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27.
