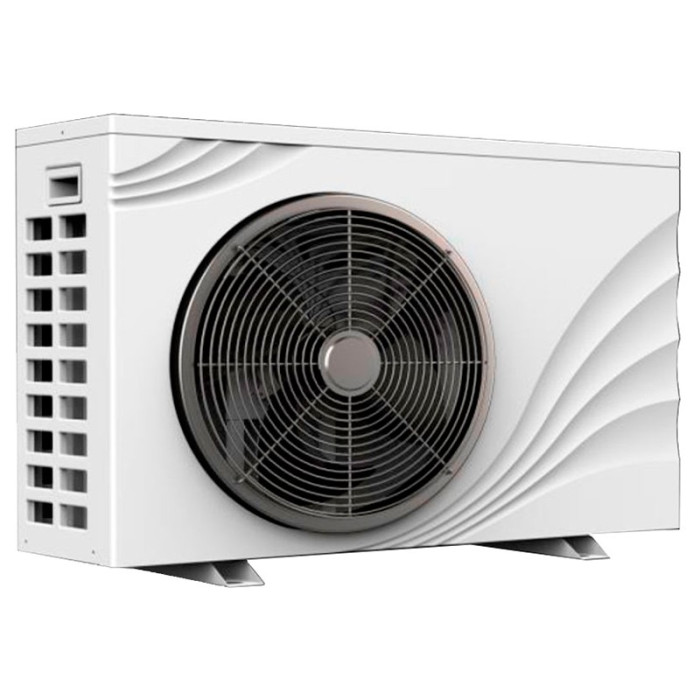

Polytropic Net Inverter Heat Pump

Polytropic Net Inverter Heat Pump

With Polytropic's Net Inverter heat pump you can extend the swimming season with the most efficient heating system. It heats the pool water using Inverter technology, which provides advantages such as less noise, lower consumption, better performance and higher efficiency.

It works from 0°C and is 30% to 40% more efficient, thanks to the use of air energy.

Depending on the pool temperature and ambient temperature, the heat pump adapts to ensure the best COP (coefficient of performance) with the lowest noise level, with 2 possible modes:

• Smart mode: The pump uses between 20% and 100% of the capacity. This way it can ensure a fast heating of the pool.
• ECO-Silence mode: It uses between 20% and 80% of the capacity to ensure a good COP with a low sound level.

Polytropic Net Inverter Heat Pump Features

• Inverter technology.
• Integrates an intelligent defrost system.
• 2 different operating modes, Smart Mode and ECO-Silence Mode.
• Operates from 0ºC.
• Available in 4 models for pools from 15 to 65 m3.
•  Includes:
  • Silent blocks
  • Connector for the evacuation of condensation water.
  • Hydraulic connectors of 50mm diameter.
  • Winter cover.

  *Scroll horizontally to view the complete table.

  Model	Net Inverter 05	Net Inverter 07	Net Inverter 08	Net Inverter 10
  Recommended pool size (*)	15-30 m³	30-40 m³	40-50 m³	50-65 m³
  Air 28°C / Water 28°C / Humidity 80%.
  SMART mode capacity	6.5~1.5kW	8.5~1.8kW	9.8~2.1kW	13.5~2.9kW
  SMART mode COP	10,8~5,4	10,9~5,5	11,2~8,5	11,0~5,8
  ECO-Silence mode capacity	5.2~1.5kW	6.8~1.8kW	7.9~2.1kW	10.8~2.9kW
  COP ECO-Silence mode	10,8~5,8	10,9~5,9	11,2~6,3	11,0~6,1
  Air 15°C / Water 26°C / Humidity 70%.
  Capacity SMART mode	4.5~1.0 kW	6.2~1.3 kW	7.5~1.6 kW	9.6~2.0 kW
  SMART mode COP	6,8~4,3	6,9~4,4	7,0~4,6	6,9~4,5
  ECO-Silence mode capability	3.6~1.0 kW	5.6~1.3 kW	6.9~1.6 kW	7.7~2.0 kW
  COP ECO-Silence mode	6,8~4,8	6,9~4,8	7,0~5,0	6,9~4,9
  ECO-Silence mode sound level (at 10 m)	20dB(a)	21dB(a)	22dB(a)	23dB(a)
  Operating range	0°C to 38°C
  Weight (gross)	44 kg	45 kg	48 kg	50 kg
  Dimensions (mm)	864 x 349 x 650

  (*) May to September with cover and according to climatic zone.

  Warranty information

  3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.

  Attention

  Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
