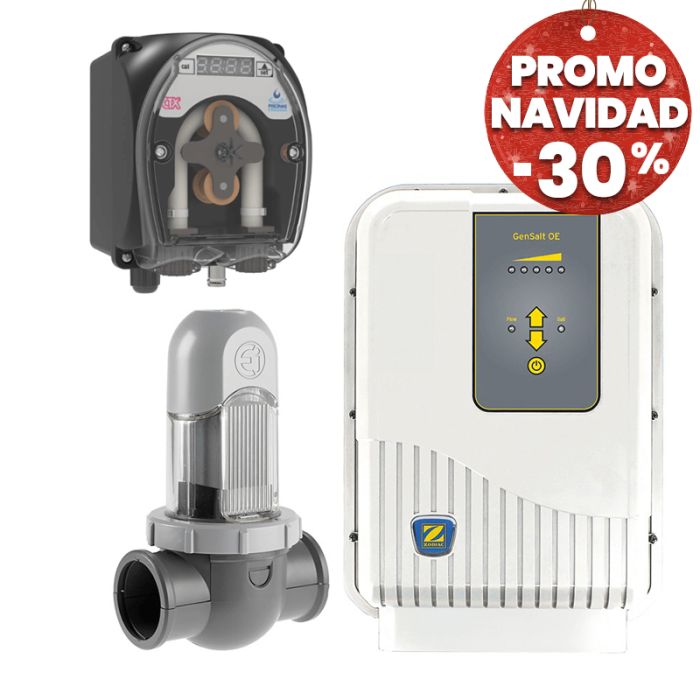

Zodiac GenSalt OE Salt Chlorinator + Peristaltic pH Pump
The new Zodiac GenSalt OE salt water chlorinator + Peristaltic pH dosing pump adapts to all installations. It has self-cleaning electrodes of high quality and durability. Easy to install. Three models available: 60 W - 100 W - 140 W (models 10 - 17 - 25). With a compact design and waterproof casing (IPX5 certified) for installation anywhere. Maintenance-free and with maximum safety
Salt chlorinators for swimming pools
Zodiac salt chlorinators are the effective and automatic disinfection solution for the treatment of your pool water, they are easy to use and you get a complete water treatment and reduced maintenance.
Manuals
Zodiac GenSalt OE Salt Electrolyzer Technical Data Sheet
Installation Service Documentation
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached Check List document and send it to info@piscinasferromar.com.
Installation Service Conditions
Check List Salt Chlorinator Installation Service
Zodiac GenSalt OE Salt Chlorinator Video Presentation
Zodiac GenSalt OE salt water chlorinator
The GenSalt OE can be installed quickly in any environment thanks to its patented Quick Fix system (installation kit included).
One of the most durable salt chlorinators in its category. It has high quality and long lasting Titanium electrode cells (the cell can operate up to 7,500 hours).
Safe system with "no salt" indicator - reduction of production to protect the electrode and with "no flow" indicator - interruption of production when conditions are not optimal. Safety system with automatic shutdown in case of insufficient water flow in the cell.
GenSalt OE Zodiac features
- User interface: LEDS.
- Clock / Timer: Connected to the filtration.
- Polarity inversion: Yes, 5 h
- Recommended salt rate - min.: 4 g/L
- Minimum salt content: 3 g/l
- Cell position: Horizontal or vertical.
- Pipe supports: DN50 mm, DN63 mm, 1 ½ " (48 mm).
Salt Chlorinator Installation Services
Piscinas Ferromar as an ePartner of Zodiac offers you the possibility to contract the installation service for your salt chlorinator at the time of purchase.
This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).
To be able to contract your installation you must meet the following minimum conditions:
- The production cell of the equipment must be installed on rigid pipe in its two standardized measures of 50mm and 63mm. It cannot be installed on flexible pipes. Minimum distance of 25 cm free pipe for cell installation.
- The electronic control box must be installed on the inside the technical room of the sewage treatment plant, protecting it from possible humidity and corrosive emanations due to the storage of chemical products inside the plant.
- The client must have pool salt to dissolve in the pool in proportion to 5 Kg per m3
- Filtration pump with a minimum power of 1⁄2 HP or with the minimum required water flow rate (consult manual according to model).
The equipment to be installed must be of Astralpool, Zodiac or CTX brands.
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached document of Check List and send it to info@piscinasferromar.com
For more information, consult the installation service conditions
| GenSalt OE Technical Data Sheet | |||
|---|---|---|---|
| Salt chlorinator Gensalt OE | Salt chlorinator Gensalt OE 10 + pH Pump | Salt chlorinator Gensalt OE 17 + pH Pump | Salt chlorinator Gensalt OE 25 + pH Pump |
| Reference | WW000247 + 68264 | WW000248 + 68264 | WW000249 + 68264 |
| Max. water volume (temperate climate, filtration 8h/day) | 40 m3 | 70 m3 | 110 m3 |
| Maximum production | 10 g/L | 17 g/L | 25 g/L |
| Rated output amperage | 2,0 A | 3,6 A | 5,0 A |
| Technical characteristics | |
|---|---|
| Power | 60 - 100 - 140 W (models 10 - 17 - 25) |
| Cell life (under good conditions of use) | 7,500 h (titanium plates, ruthenium SC6 treatment) |
| Minimum flow rate (necessary to purge air from the cell) | 5 m³/h |
| Maximum flow rate (limited by installation losses) | 18 m³/h (by-pass mandatory for higher flow rates) |
| Flow detection | Gas sensor |
| Maximum authorized pressure in the cell | 2.75 bar (KPa) |
| Cell dimensions (L x W x H) | 16.5 x 22.5 x 12.5 cm (4.5 x 8.5 x 8.5 in.) |
| Maximum water temperature | 40 °C |
| Minimum water temperature | 5 °C |
| Box-cell cable length | 1,8 m |
| Protection rating | IPX5 |
| Dimensions of the control unit (L x W x H) | 28.5 x 40.5 x 12.5 cm (11.5 x 16.5 x 11.5 in.) |
| Power supply | 50 Hz 220-240 V AC (high-voltage cable with overmolded plug) |
Warranty information
3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27, except for the pH probe.
