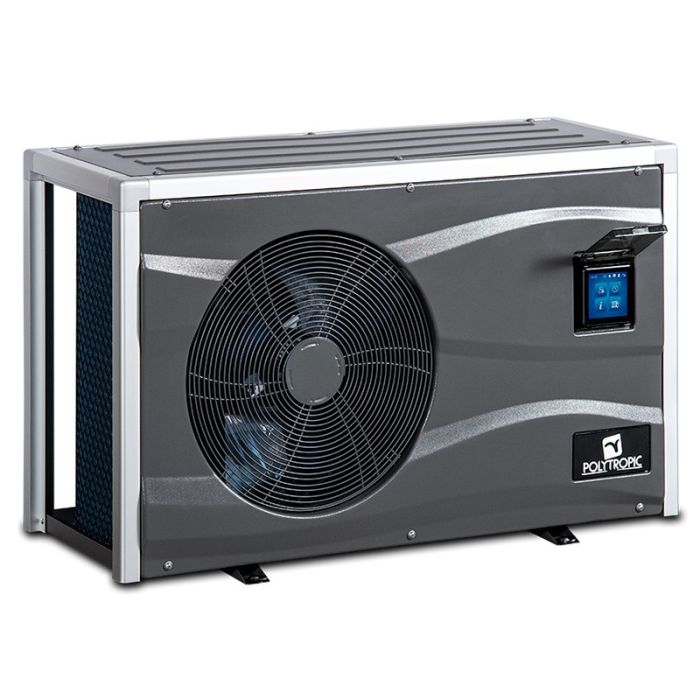

Polytropic Master Inverter Heat Pump

Polytropic Master Inverter Heat Pump

With Polytropic's Master Inverter heat pump you can extend the swimming season with the most efficient heating system, heating your pool water using Full Inverter technology.

It works from -15°C and is 30% to 40% more efficient, thanks to the use of air energy.

Available in different models that adapt to the volume and capacity of your pool.

The Master pump uses Full Inverter technology that allows you to adjust the speed of the compressor and the pump fan depending on the external conditions and the needs of the pool water with 3 operating modes:

• Boost mode: Recommended at the beginning of the season or if the water is too cold, between 85% and 100% power for a quick temperature rise.
• ECO-Silence mode: To maintain hot water at a reduced speed. This operating mode ensures a high COP and low noise level, the fan works at the minimum speed necessary and the compressor prioritizes the COP.
• Smart Mode: Automatic power adjustment according to temperature to ensure low noise level and high COP.

Large 4'' touch screen with a very readable and detailed color user interface for easy and intuitive navigation.

Easily connect the heat pump by scanning the QR code, control via the free Polyconnect app and benefit from secure remote monitoring for preventive maintenance and remote diagnostics by Polytropic technicians.

Polytropic Master Inverter Heat Pump Features

• Full Inverter technology.
• Integrates an intelligent defrost system.
• 3 different operating modes, Smart Mode, ECO-Silence Mode and Boost Mode.
• Operates from -15ºC.
• Available in 7 models for pools from 30 to 160 m3.
• R32 refrigerant gas.
• Polyconnect Lite, wifi module included for remote control via smartphone.
• Touch screen.
•  Includes:
  • Winter cover
  • 50 mm hydraulic connection kit
  • 4 "Silen Block" model anti-vibration pads
  • Condensation drainage equipment
  • Instruction and maintenance manual in several languages

  *Scroll horizontally to view full table

  Model	XXS	XS	S	S+	M	XM	L	L+
  Recommended pool size (*)	15-35 m³	30-45 m³	45-55 m³	55-70 m³	70-85 m³	85-105 m³	105-130 m³	130-160 m³
  Air 28°C / Water 28°C / Humidity 80%.
  Power restored in BOOST mode	7.3 kW	9.3 kW	10.6 kW	13.1 kW	16.1 kW	20.4 kW	24.2 kW	27.8 kW
  COP BOOST mode	6,5~5,9	6,5~5,5	6,8~5,4	6,8~5,6	6~5,4	5,9~5,2	6~5,4	5,9~5,2
  Average power restored SMART mode	7.3~3.2kW	8.8~3.5kW	10.6~3.9kW	12.9~4.2kW	16.5~5.5kW	20.1~6.5kW	24.4~7.8kW	27.8~10.5kW
  SMART mode COP	10,8~5,9	10,8~5,4	10,8~5,4	11,2~8,5	10,8~5,4	10,1~5,2	10,8~5,4	10,1~5,2
  ECO-Silence mode power output	5.8~3.5kW	5.8~3.5kW	7.1~3.9kW	8.4~4.2kW	9.9~5.5kW	12.2~6.5kW	16.3~7.8kW	18.6~10.5kW
  COP ECO-Silence mode	10,8~8,3	10,8~8,3	10,8~8,3	11,2~8,5	10,8~8,3	10,1~8,1	10,8~8,3	10,1~8,1
  Air 15°C / Water 26°C / Humidity 70%.
  BOOST mode power restored	5,6kW	6,6kW	7.5kW	9.8kW	11.7kW	14.6kW	18.8kW	21kW
  COP BOOST mode	5,3	5,3	5,2	4,7	5,1	4,5	4,6~4,4	4,5~4,2
  Average power restored SMART mode	5.6~2.6kW	6.6~3.2kW	7.5~3.5kW	9.8~3.7kW	11.7~4.2kW	114.6~4.9kW	18.2~6.8kW	22.8~8.1kW
  SMART mode COP	6,7~5,3	6,7~5,6	6,7~4,9	6,8~4,5	6,7~4,4	6,6~4,3	6,7~4,4	6,5~4,2
  ECO-Silence mode power output	2.9~2.6kW	3.8~3.2kW	4.9~3.5kW	7.8~3.7kW	6.7~4.2kW	8.5~4.9kW	10.2~6.8kW	12.5~8.1kW
  COP ECO-Silence mode	6,7~5,3	6,7~5,6	7,1~6,1	7,0~5,5	6,7~5,7	6,6~5,6	6,7~5,7	6,5~5,6
  Minimum - maximum sound level	21 - 23dB(a)	21 - 25dB(a)	22 - 26dB(a)	23 - 28dB(a)	25 - 30dB(a)	25 - 30dB(a)	26 - 31dB(a)	26 - 32dB(a)
  Refrigerant	R32 refrigerant gas
  Operating range	-15°C to 38°C
  Weight (gross)	50 kg	54 kg	55 kg	56 kg	68 kg	78 kg	100 kg	120 kg
  Dimensions (mm)	967 x 358 x 593				1070 x 430 x 690		1110 x 530 x 830

  (*) May to September with cover and according to climatic zone.

  Warranty information

  3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.

  Attention

  Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and their assembly and commissioning must be carried out by a professional.
