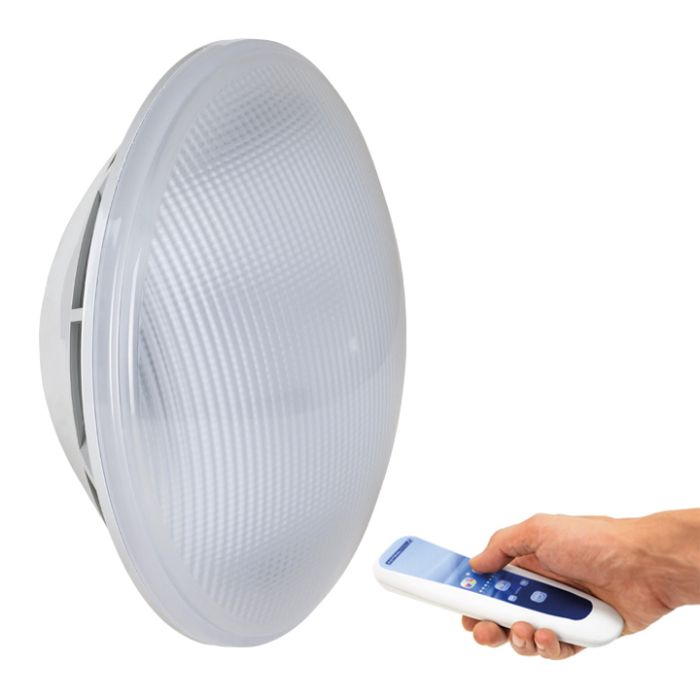

Astralpool Lumiplus Essential PAR56 1,100 lm RGB lamp
Lumiplus Essential PAR56 Wireless RGB LED lamp by Astralpool to illuminate your pool.
RGB light and available with RC 1100 control unit.
It can be installed in any underwater projector containing a PAR56 lamp.
The LumiPlus PAR56 RGB lamp substantially improves the light of your pool and reduces its consumption drastically.
Manuals
Astralpool Lumiplus Essential Lighting Catalogue
Astralpool Lumiplus Essential Led Lamp PAR56 RGB 1.100 lm technical specifications
Electrical Connection Manual Astralpool Lumiplus Essential LED Lamp PAR56 RGB 1.100 lm
Astralpool Lumiplus Essential PAR56 lamp 1.100 lm
Projectors with LED PAR56 lamp of 1,100 lm with the option of acquiring it with control, developed to obtain the maximum efficiency in the electrical consumption. The LED spotlights with a minimum consumption and a very high luminous capacity.
LEDs have a useful life of 100,000 hours compared to the 1,000 hours of conventional lamps and each LED spotlight saves more than 90% in energy consumption.
The LED light incorporates maximum brightness LEDs in red, blue and green. The combination of these basic colors results in a myriad of different colors, all very bright and vivid.
It must be connected to 12V AC via a safety transformer and should always be switched on when fully submerged in water.
Advantages
- Easy installation, ready for use in 10 minutes.
- Saves up to 92% of energy thanks to the higher energy efficiency of this technology.
- Meets the energy efficiency requirements of the new European Ecodesign Directives applicable to Energy-using Products, which will be mandatory in the coming years.
Features
- AC version: 12V AC
- Protection: IP68
- Always to be installed submerged in water.
Comparison Lumiplus Essential PAR56 Astralpool lamps 1.100 lm
| Code | Model | Color Light | Consumption | Luminous flux | Voltage | Energy Efficiency | Control command |
|---|---|---|---|---|---|---|---|
| 75771 | LumiPlus Led Essential PAR56 RGB + Controller | RGB light | 22W (29VA) | 1,100 lm | 12 V | G | Yes, RC 1100 (75773) |
| 75772 | LumiPlus Led Essential PAR56 RGB | RGB light | 22W (29VA) | 1,100 lm | 12 V | G | No |
Astralpool lighting recommendations
To properly illuminate a pool, it is recommended to install a lamp from the LumiPlus family every 20 m2 of water surface.
The projectors should always be installed submerged in water.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th. See conditions in the Warranty Document.
| 75771 | 75772 | |
| TIPO DE LUZ | RGB | RGB |
|---|---|---|
| VOLTAJE | 12V AC | 12V AC |
| POTENCIA | 22 W | 22 W |
| CONSUMO | 29 VA | 29 VA |
| FLUJO LUMINOSO | 1100 lm | 1100 lm |
| CONTROL REMOTO | No | Si, RC1100 |
| CLASE ENERGÉTICA Según UE 2019/2015 |
 |
 |
-
