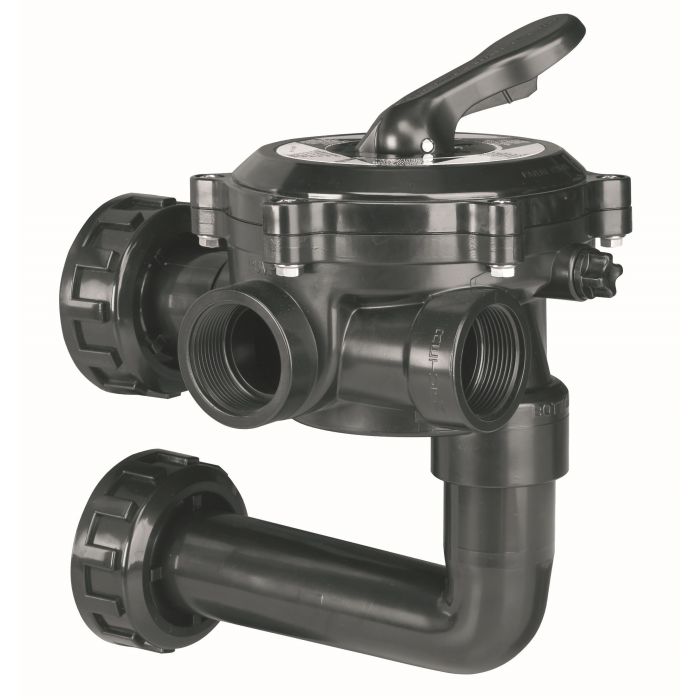

AstralPool Lateral selector valve 1½'' Flat

Selector valve that incorporates, as main innovation, reduced dimensions thanks to the design of a single level (as opposed to the usual two levels in the selector valves).

This smaller size makes it particularly suitable for those applications where space is limited, such as for example, in cabins or monoblocs, where it is remarkable the greater use of the Top model.

Characteristics:

- The Flat valve application is recommended for filters up to 550 mm in diameter or with comparable pressure drop levels.

- It can perform the same functions as a conventional valve: filtration, washing, rinsing, emptying, recirculation and closing.

• 6 working positions.
• Maximum working pressure 2,5 kg/cm2.
• ABS body, cover and handle. Distributor in PPO.
• Bell with wide turning space with respect to the body.
• AISI-316 stainless steel bolt locking system.
• The design of the distributor avoids possible clogging caused by sand, dirt, etc.
• Maximum mechanical and corrosion resistance.

Referenced SKUs:

• 34543

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27.
