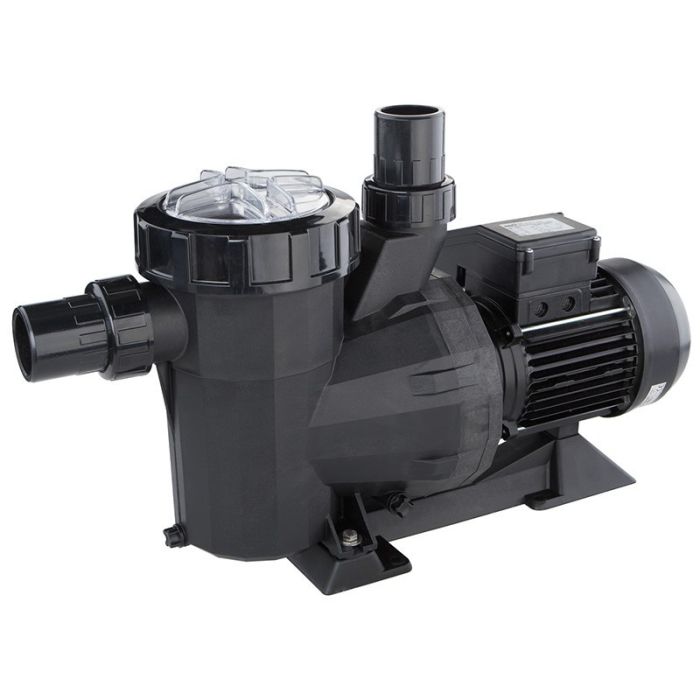

AstralPool Victoria Plus Pump
Robust and sober design, new generation pre-filter cover nut easy to handle.
Low noise level operation due to the rubber supports on which it rests.
In case of stock breakage we send new Victoria Plus Silent model.
AstralPool Victoria Plus Pump
Victoria Plus Pump Installation Manual
AstralPool Victoria Plus Pump Catalog
Victoria Plus Pump Technical Sheet
Victoria Plus Pump spare parts table
Victoria Plus Pump dimension sheet
Range comparison
*Scroll horizontally to view the complete table.
Code | Liters/Hour | Power | Power | |
---|---|---|---|---|
AstralPool Victoria Plus 1/3 HP | 41224 | 8.000 l/h | 0,25kw | Single-phase |
AstralPool Victoria Plus/ Plus Silent 1/2 hp | 38769-65557 | 10.000 l/h | 0,37kw | Single-phase |
38770-65558 | 0,43kw | Three-phase | ||
AstralPool Victoria Plus/ Plus Silent 3/4 hp | 38771-65560 | 11.000 l/h | 0,61kw | Single-phase |
38772-65561 | 0,60kw | Three-phase | ||
AstralPool Victoria Plus/ Plus Silent 1 HP | 38773-65562 | 16.000 l/h | 0,78kw | Single-phase |
38774-65563 | 0,76kw | Three-phase | ||
AstralPool Victoria Plus/ Plus Silent 1,5 hp | 38775-65564 | 21.500 l/h | 1,10kw | Single-phase |
38776-65565 | Three-phase | |||
AstralPool Victoria Plus/ Plus Silent 2 CV | 38777-65566 | 26.000 l/h | 1,46kw | Single-phase |
38778-65567 | 1,46kw | Three-phase | ||
AstralPool Victoria Plus/ Plus Silent 3 HP | 38779-65569 | 34.000 l/h | 2,20kw | Single-phase |
38780-65570 | Three-phase |
AstralPool Victoria Plus/ Silent Plus Pump
Sober and robust design, new generation pre-filter cover nut for easy handling. Low noise level operation due to the rubber supports on which it rests.
IP-55 motor protection. Large capacity pre-filter basket. Flow rates in l/h at 8 m.c.a. for 1/2 hp and 10 m.c.a. from 3/4 hp. 3.000 rpm.
The Astral Victoria Plus pump is the result of the merger of the Astral Victoria and Sprint pumps. All components have been combined between the components of the Victoria and Sprint pumps.
New pre-filter cover
Victoria Plus will have a new crosshead pre-filter cap that is fully compatible with the Astral Sprint and Victoria pumps.
This new lid design will unify the look of the Columbia, Sena and Victoria Plus pumps.
Pump foot
The pump foot has been combined between the feet of the Victoria and Sprint range. The pump foot for size C.63 and C.71, related to power type up to 1CV, comes from the Sprint range.
The pump foot for size C.80 and C.90, related to power type 3HP, comes from the Victoria range.
This combination has been introduced in order to improve pump and motor support when required, a small foot is introduced when the motor type is small and a long foot for larger motor types. 8.000l/h
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
-
