Hayward Super Pump
Efficiency, reliability, longevity, the Super Pump meets all the requirements you can expect from a Hayward pump. It is as effective for replacing an existing pump as it is for a new installation.
Manuals
User manual Hayward Super Pump Pump
Hayward Super Pump spare parts sheet
Technical characteristics Hayward Super Pump Pump
Hayward Super Pump Pump

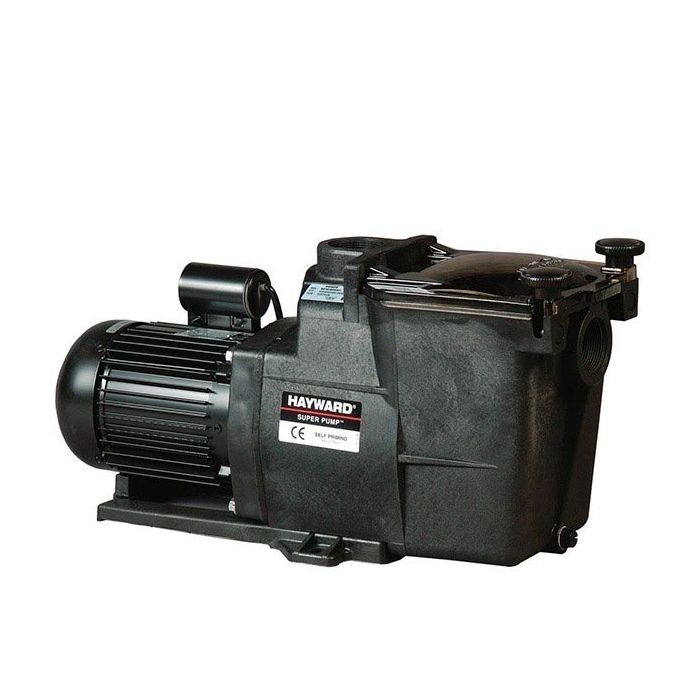

The Hayward Super Pump is a single-stage, self-priming centrifugal pump with a built-in pre-filter, which is characterized by its silent operation.
Its application is the recirculation and filtration of water in small and medium size pools. Connections of 1 1/2" and 2" depending on the model in suction and discharge inlet: fittings for gluing Ø 50 or 63mm not included.
Available in several models with different power ratings, from 0.75 HP to 2 HP, in single-phase and three-phase versions.
Information and Details
- Materials
- Pump body, pump foot, impeller, seal support and diffuser in technopolymer.
- Motor shaft in stainless steel AISI 420
- Mechanical seal in graphite and alumina oxide
- Aluminum motor housing
- NBR seals for total tightness
- Motor
- Totally enclosed, IP 55 protection, with external ventilation.
- Single-phase 1 x 230 V, with built-in thermoamperimetric protector and corresponding condenser.
Range comparison
*Scroll horizontally to view the complete table.
| Super Pump ¾ HP - 230V |
Super Pump 1 HP - 230V/400 |
Super Pump 1,5 HP - 230V/400 |
Super Pump 2 HP - 230V |
||||
|---|---|---|---|---|---|---|---|
| Code | SP1608XW111 | SP1611XW161 | SP1611XW163 | SP2616XW221 | SP2616XW223 | SP2622XW251 | SP2622XW253 |
| Flow rate | 15,5 m3/h | 18.5 m3/h | 22 m3/h | 28 m3/h | |||
| Weight | 14 kg | 15 kg | 15 kg | 16 kg | |||
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.
-
