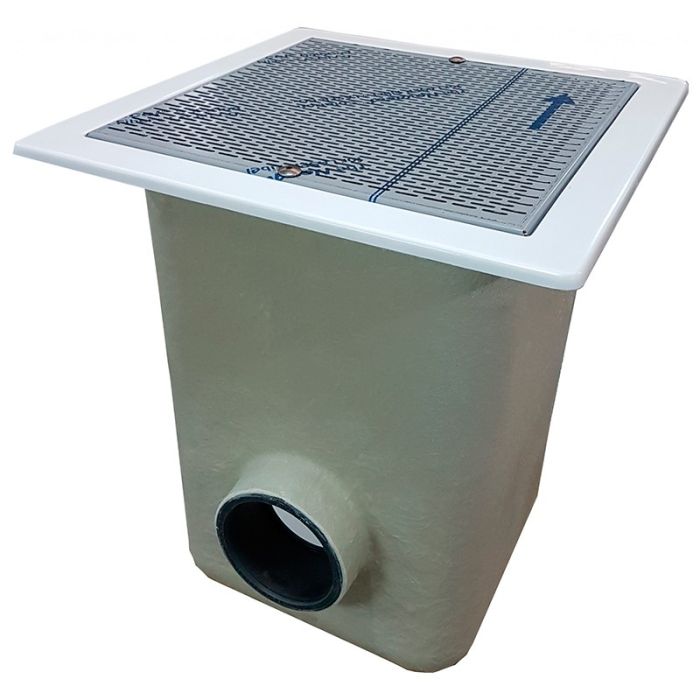

Norm polyester and fiberglass drain stainless steel grille concrete pool

Stainless steel grid, also available with plastic grid.
Optional hydrostatic valve.
Minimum depth of installation: 1,5 m
Maximum recommended flow rate at the grate: 103 m3/h (0.5 m/s)

Outlet connection for gluing available in the following diameters with stainless steel grating:

• Code 20285N - Ø 110 mm - Flow rate: 42 m3/h
• Code 20286N - Ø 125 mm - Flow rate: 51 m3/h
• Code 20287N - Ø 140 mm - Flow rate: 66 m3/h
• Code 20288N - Ø 160 mm - Flow rate: 95 m3/h
• Code 20289N - Ø 200 mm - Flow rate: 103 m3/h

If you want this product with plastic grille, look for it in the store with the following codes:

• Code 28709N - Ø 110 mm - Flow rate: 42 m3/h
• Code 28710N - Ø 125 mm - Flow rate: 51 m3/h
• Code 28711N - Ø 140 mm - Flow rate: 66 m3/h
• Code 28712N - Ø 160 mm - Flow rate: 95 m3/h
• Code 28713N - Ø 200 mm - Flow rate: 103 m3/h

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
