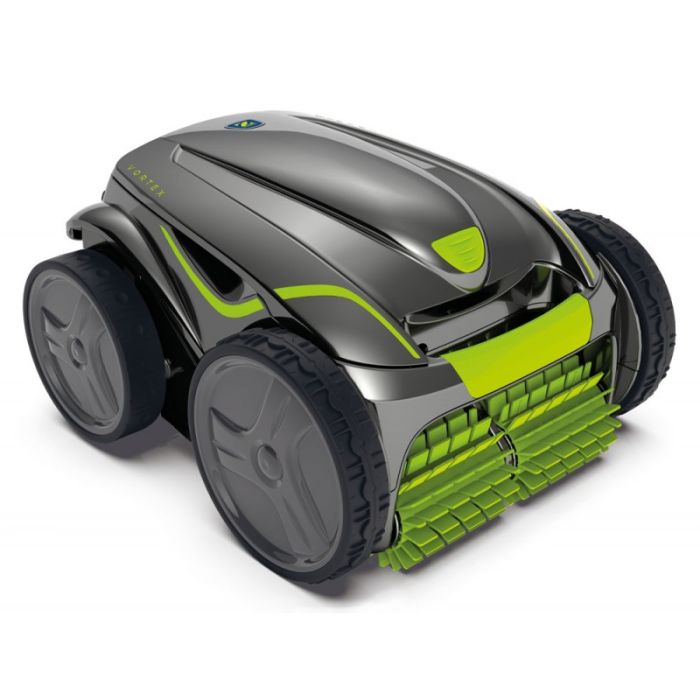

Zodiac GV 3320 Robot Cleaner

Robot Cleaner Zodiac GV 3320

Patented cyclonic suction system to clean all areas of the pool much more efficiently. In addition, this electric pool cleaner has powerful brushes, making the process faster and easier. It is ideal for cleaning private inground pools and above ground pools with rigid walls up to 12 x 6 m (40 x 20 ft).

Types of pools:
Shapes: Rectangular, oval and free-form.
Backgrounds: Flat, gentle slope, compound slope, diamond point.
Liners: Gresite, liner, polyester hull, reinforced PVC, painted concrete.
Pool size: up to 12 x 6 m.

Accessories included:

Control Box
Fine debris filter 100µ

Accessories not included:

Very fine debris filter 60 μ.
Additional 100 μ fine debris filter.
Coarse residue filter 200 μ.
Protective cover.

General Characteristics Robot Cleaner Zodiac GV 3320

Cleaning zone: Bottom / walls / water line.
Number / Duration of cleaning cycles: 2 cycles: bottom "Deep Clean" (1h30) - bottom / walls / water line (2h30).
Power source: Autonomous, connected to 230 V before the transformer.
Displacement: Preprogrammed.
Traction system: 2 wheel drive.
Transmission: Gears.
Brushes: Yes.
Lift System: No.
Filter full indicator: No.
Remote control: No.
Security: Beach system, automatic out-of-water shutdown, electronic motor protection.
Filter type / access: Rigid filter with access from the top of the cleaner.

Technical Characteristics Zodiac GV 3320 Robot Pool Cleaner

Number of motors: 3.
Control system supply voltage: 200-240 VAC ; 50 / 60 Hz.
Power supply voltage of the cleaner: 30 VDC.
Absorbed power: 150 W.
Cable length: 18 m.
Dimensions of the cleaner (L x W x H): 43 x 48 x 27 cm.
Packaging dimensions (L x W x H): 56 x 56 x 56 x 46 cm.
Weight of the cleaner: 9.5 kg.
Weight with packaging: 19.1 kg.
Filtering surface / Filtration level: 1180 cm² / 100 μ.
Filter capacity: 5 L.
Warranty: 2 years.

Warranty information

3 years manufacturer's warranty according to Royal Decree Law 7/2021 of April 27.

*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs *.
