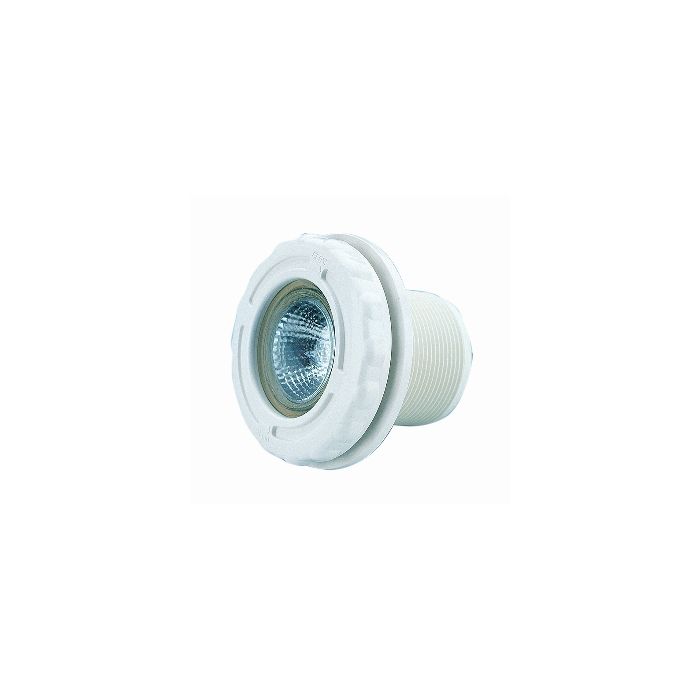

Mini halogen projector for prefabricated swimming pool AstralPool

• Manufactured entirely in ABS plastic material, without screw, bayonet system both in the trim and in the body.
• Borosilicate lens.
• No need for grounding, easy disassembly, using the outer face of the trim as a key to change the lamp.
• Possibility of coupling external polycarbonate lens available in 4 colors: red, green, yellow and blue.
• Lamp of 50 W-12 V and 38º of luminous beam. 95 lux at 4 m distance, with an illuminated circle of 2.5 m to be screwed into a 2'' wall bushing (Code 15658).
• Floodlight without niche.

Available with ABS plastic or stainless steel trim.

• 33709 - Plastic body - ABS trim.
• 33365 - Metal body - ABS trim.
• 36647 - Plastic body - Stainless steel trim.
• 36642 - Metallic body - Stainless steel trim.

Warranty information

Warranty 2 years according to manufacturer's conditions.
