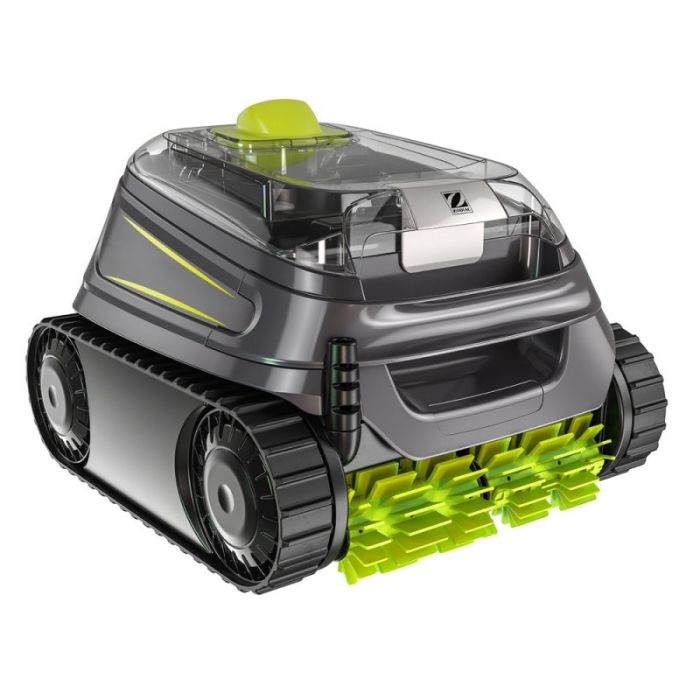

Electric pool cleaner Zodiac CNX 2020

Electric pool cleaner Zodiac CNX 2020

Pool cleaner with the patented cyclonic suction system to clean all areas of the pool much more efficiently. It has a special filter for easy cleaning and access from the top.

It is ideal for cleaning private inground pools and above ground pools with rigid walls up to 10 x 5m.

Types of pools:
Shapes: Rectangular, oval and free-form.
Backgrounds: Flat, gentle slope, compound slope, diamond point.
Liners: Gresite, liner, polyester hull, reinforced PVC, painted concrete.
Pool size: up to 10 x 5 m.

Accessories included:

Control unit.
Fine debris filter 100 μ.
Support for control unit.

Optional accessories, not included:

Debris filter 200 μ (Single filter).
Residue filter for double filtration 150 μ.
Very fine residue filter for single filtration 60 μ.
Protective cover.
Trolley.

General Features Electric pool cleaner Zodiac CNX 2020

Cleaning zone: Bottom / walls / water line.
Number / Duration of cleaning cycles: 2 cycles: bottom only (1h30) - Bottom / walls / water line (2h30).
Power source: Autonomous, connected to 230 V before transformer.
Displacement: Preprogrammed.
Traction system: Tracks, 2 motors.
Transmission: Gears.
Brushes: Yes, front brush.
Lift System: No.
Transparent window: Yes.
Filter full indicator: No.
Remote control: No.
Security: Beach system, automatic out-of-water shutdown, electronic motor protection.
Filter type / access: Rigid filter with access from the top of the cleaner.

Technical Characteristics Electric pool cleaner Zodiac CNX 2020

Number of motors: 3.
Control system supply voltage: 200-240 VAC ; 50 / 60 Hz.
Power supply voltage of the cleaner: 30 VDC.
Absorbed power: 150 W.
Cable length: 15 m.
Dimensions of the cleaner (L x W x H): 43 x 40 x 30 cm.
Packaging dimensions (L x W x H): 56 x 56 x 56 x 37 cm.
Weight of the cleaner: 8 kg.
Weight with packaging: 14 kg.
Filtering surface / Filtration level: 526 cm² / 100 μ.
Filter capacity: 4 L.
Cleaning cover: 23 cm.
Warranty: 2 years.

Warranty information

3 years manufacturer's warranty according to Royal Decree Law 7/2021 of April 27.

*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs *.
