Astralpool Ultra 250 pool cleaner

Manuals

User manual Astralpool Ultra 250
Aquacontrol 500 transformer manual
Astralpool Ultra 250 Remote Control Manual
Catalogue Astralpool Ultra 250

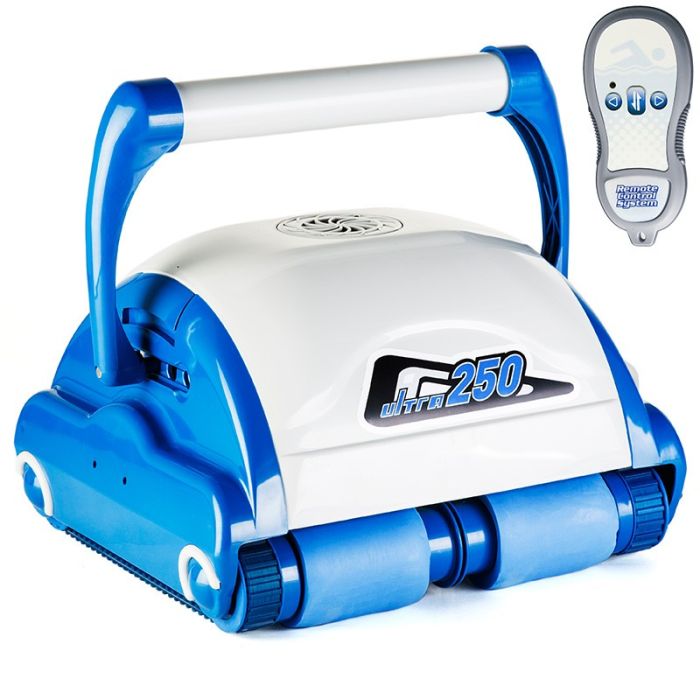

AstralPool Ultra 250 with AquaSmart System and Gyro,

In addition to the automatic cleaning program, the operator can use the remote control mode of the Ultra 250 for quick cleaning of an area. With a simple touch of a button, the Ultra 250 can be directed 360° in any direction.

The ULTRA 250 comes with the built-in AQUA Smart System which is an electronic program installed in the robot's brain that allows it to map any pool floor and systematically brush and vacuum the entire pool.

What is the AquaSmart System

The Aqua Smart System is an advanced software that allows, by means of an algorithm, to calculate in an optimal way the path that the robot should take to clean the pool efficiently and in the shortest possible time.

What is the Gyro System?

Gyro is an intelligent algorithm created by Aquatron to improve the robot's navigation and maximize its efficiency.

Main benefits:

• Efficiency on the surface to be cleaned.



• Programmed turning patterns to avoid cable entanglement.



  Created to improve the robot's navigation and maximize its efficiency, Aquatron has launched GYRO System the new intelligent algorithm.

  Located in the robot's management circuitry GYRO has the functions similar to an electrical gyroscope like the latest mobile devices.

  Features

  • Cleans the bottom walls and waterline
  • Equipped with a powerful steering motor and a high-capacity filtration motor
  • Does not need any installation or supervision when operating
  • Includes a radio control system, which allows the unit to be steered, with 360º mobility from a distance of 30-40 meters.
  • 3 cleaning cycles
    • 3 hour cycle (floor only)
    • Cycle 4 hours (floor and wall)
    • Cycle 5 hours (floor and wall)
  • It allows to delay the cycle start and select the cleaning level thanks to its new AQUACONTROL MODEL 500 transformer.
  • The 30 meter flotation cable allows the ULTRA 250 to operate efficiently in commercial pools.
  • Includes transport trolley
  • Modern transformer must be placed at least 3 meters away from the pool

  Technical features

  *Scroll horizontally to view the complete table.

  Recommended pool size	Maximum 25m
  Motors	1 pumping motor + 2 traction motors
  Filtered water flow rate	22m3/h
  Cleaning coverage	580m2/h
  Floating cable	30m
  Traction motor	30 V DC
  Cleaning program	3h/4h/5h
  Filter specifications Reusable bag	11520 cm2
  Electrical specifications	100-259 V / 50-60 Hz
  Voltage in water	24 V DC
  Cleaning level	Basic/Standard/Superior
  Delayed start of cleaning cycle	2h (optional)
  Obstacle detection	Yes
  Gyroscope	Yes
  Electronic Antenna	Yes
  Pool type selection	Yes

  Warranty information

  3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.


  *The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs *.
