Aquabot BWT Magnum Junior public swimming pool cleaner

Manuals

Catalog BWT public swimming pool cleaner robots

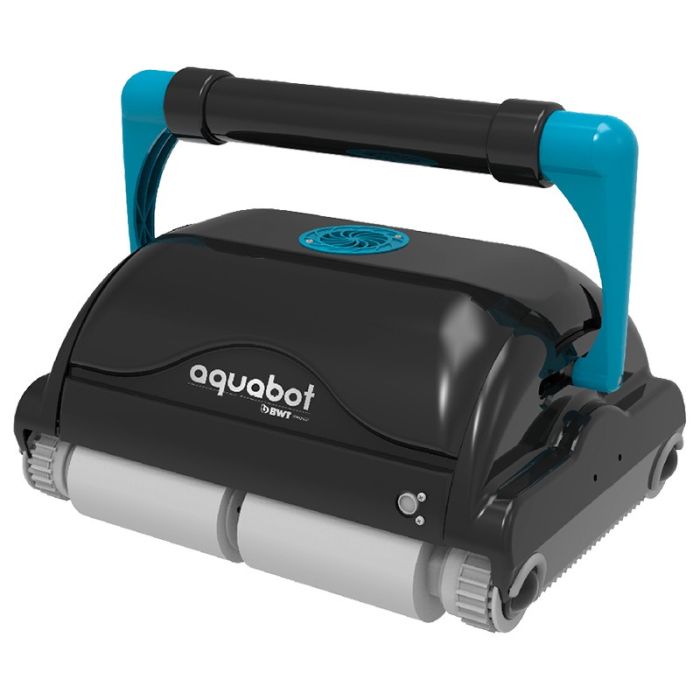

Aquabot BWT Magnum Junior Pool Cleaners

The BWT Aquarius robot pool cleaner for cleaning the bottom and walls of small to medium sized public / commercial pools (up to 20 meters in length).

Maximum performance for larger commercial pools.

Features Aquabot BWT Magnum Junior pool cleaner Aquabot BWT Magnum Junior

• It has three cleaning cycles: 3, 4 or 5 hours.
• PVA brushes compatible with all types of coatings.
• XL microfiber bag filtration system with 4D technology for maximum dirt holding capacity.
• 30 meter long cable.
• Intelligent navigation system that guarantees maximum cleaning efficiency and superior performance, thanks to precise tracking and turns.
• Strong and safe gear system.
• Anti-twist system.
• With remote control and timer.
• Filter cleaning warning.
• Includes transport and storage cart (Exclusive model).

*Scroll horizontally to view the complete table.

Model	BWT Aquarius	BWT Magnum Junior	BWT Magnum PVA	BWT UltraMax Junior	BWT UltraMax PVA
Pool size (length)	Up to 15 meters	Up to 20 meters	Up to 25 meters	Up to 35 meters semi-Olympic pool	Up to 50 meters Olympic pool
Surface	All surfaces and shapes	All surfaces and shapes	All surfaces and shapes	All surfaces	All surfaces
Cleaning cycles	3-4-5h	3-4-5h	3-4-5h	3-4-6h	3-4-6h
Wall cleaning	Yes	Yes	Yes	No	No
Brushes	4 PVA foam brushes	4 PVA foam brushes	4 PVA foam brushes	4 PVA foam brushes	4 PVA foam brushes extra-large
Filtration	Microfiber bag 4D technology	Microfiber bag XL 4D technology	XL microfiber bag 4D technology	XL microfiber bag 4D technology	2 XL microfiber bags 4D technology
Suction flow rate	< 19 m³/h	< 19 m³/h	< 19 m³/h	< 38 m³/h	< 38 m³/h
Filter cleaning warning	Yes	Yes	Yes	No	No
Filter access	Bottom access single clip	Bottom access single clip	Bottom access single clip	Bottom access single clip	Easy closure
Platform	Double motor 1 pump	Double motor 1 pump	Double motor 1 pump	Double engine 2 pumps	Double motor 2 pumps
Cable length	23 meters	30 meters	36 meters	36 meters	45 meters
Anti-twist system	Yes, electric	Yes, manual	Yes, manual	Yes, manual	Yes, manual
Remote control	Yes	Yes	Yes	Yes	Yes
Infrared sensor	No	Yes	Yes	Yes	Yes
Timer	Yes	Yes	Yes	No	No
Transport trolley	Trolley Exclusive Model	Trolley Model Exclusive	Exclusive Trolley Model	Trolley Commercial Model	Trolley Commercial Model
Power Consumption	230V / 180W	230V / 180W	230V / 180W	230V / 180W	230V / 180W
Dimensions (L x W x H)	390 x 445 x 270 mm	390 x 435 x 260 mm	390 x 530 x 260 mm	400 x 530 x 265 mm	400 x 540 x 315 mm

Warranty information

3 years from the manufacturer according to Royal Decree Law 7/2021 of April 27th.

*The correct operation of the equipment can not be guaranteed both in the bottom and in the rise of walls whenever the pH level is not correct, contains slime or algae or filters are clogged by excess dust, and has not been previously made a total cleaning of the vessel, in addition to any pool with irregular surfaces on the walls such as steps or ribs *.
