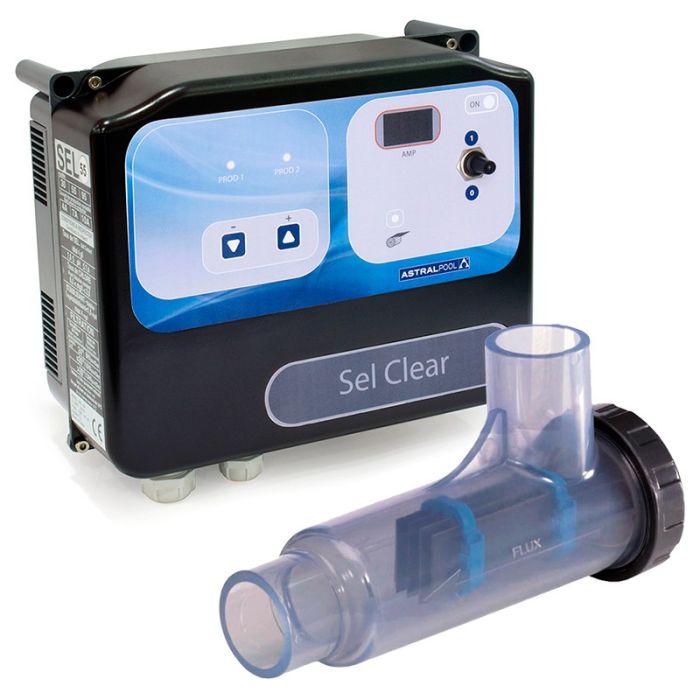

Salt chlorinator AstralPool Sel Clear

Manuals

User manual AstralPool Sel Clear
AstralPool Sel Clear Catalog

Installation Service Documentation

We recommend that the user contracting the installation service read the service contracting conditions and download and fill in the attached Check List document and send it to info@piscinasferromar.com.

Installation Service Conditions

Check List Salt Chlorinator Installation Service

Salt Chlorinator Installation Services

Piscinas Ferromar as an ePartner of Zodiac offers you the possibility to contract the installation service for your Salt Chlorinator at the time of purchase.

This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).

To be able to contract your installation you must meet the following minimum conditions:

• The production cell of the equipment must be installed on rigid pipe in its two standardized measures of 50mm and 63mm. It cannot be installed on flexible pipes. Minimum distance of 25 cm free pipe for cell installation.
• The electronic control box must be installed on the inside the technical room of the treatment plant, preserving it from possible humidity and corrosive emanations due to the storage of chemical products inside the plant.
• The customer must have pool salt to be dissolved in the pool in proportion to 5 Kg per m³
• Filtration pump with a minimum power of 1⁄2 HP or with the minimum required water flow rate (consult manual according to model).

The equipment to be installed must be of Astralpool, Zodiac or CTX brands.

We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached document of Check List and send it to info@piscinasferromar.com

For more information, consult the installation service conditions

Range comparison

*Scroll horizontally to view the complete table.

What type of pool are Astralpool Sel Clear salt chlorinators suitable for?

Ideal for pools from 30m3 to 95 m3.
With a chlorine production capacity from 9 gr to 19 gr of chlorine/hour.

General characteristics of the Sel Clear series of Astralpool

• Salt electrolysis with self-cleaning electrodes by polarity inversion.
• Easy to install and use
• Good quality/price ratio
• Chlorine shock" booster button (100% production at maximum output)
• Optional flow switch (on request)
• Panel mounting not included

How does salt electrolysis work?

Salt electrolysis systems add a new concept in pool water treatment by increasing water quality, avoiding the use of chemicals and facilitating maintenance work.

Salt electrolysis process

1. We add common salt to the water, approximately 5 grams per liter of water (a proportion nine times smaller than that of salt in the sea, in a proportion similar to that of a teardrop).
2. Once dissolved, we apply an electric current through the electrode, the salt is converted into chlorine and, therefore, we already have the disinfectant product we need in the water that destroys all the microorganisms that may be in the water.
3. Once the chlorine has fulfilled its function as a disinfectant agent, it is converted back into salt, so the salt concentration remains constant and only small replenishments are needed due to the loss caused by filter washings, rain, etc.

Benefits provided by a salt chlorinator

• Relax Your pool automatically disinfected
• Security Reduced chlorine handling. The system operates with a voltage equivalent to that of a light bulb.
• Purity Clean, healthy and crystal clear water
• Health Avoid irritation of eyes and mucous membranes as well as dry skin and hair. It will completely eliminate the smell and taste of chlorine in your pool.

Warranty Information

3 years from the manufacturer according to Royal Decree-Law 7/2021, April 27th.
