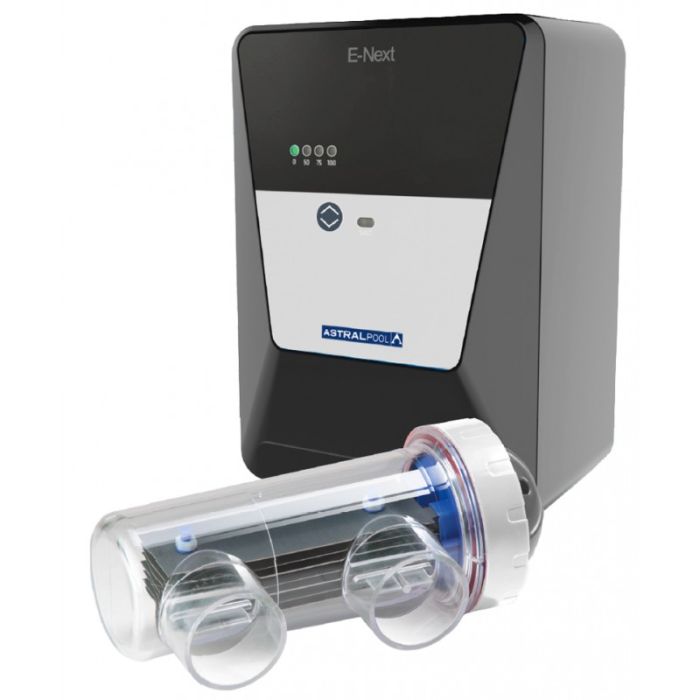

Salt Chlorinator Astralpool E-Next

Manuals

Astralpool E-Next Brochure

Installation Service Documentation

We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached Check List document and send it to info@piscinasferromar.com.

Installation Service Conditions

Check List Salt Chlorinator Installation Service

Astralpool E-Next Salt Chlorinator Video Presentation

Features of the Astralpool E-Next salt chlorinator

Thanks to its compact design, the E-Next salt chlorinator can be installed in almost any type of installation, even in places with high humidity thanks to its IP45 waterproof case. In addition, the gas detector provides greater safety and facilitates its use since it stops the chlorination in case of lack of flow and the chlorinator warns if the salt level is low by means of an alarm.

• Very compact power supply (25x20x14 cm), capable of chlorinating pools up to 180m long.³ thanks to its productions from 7 to 40 g/h.
• U-shaped cell with 8000 hours electrodes.
• Contact for the pool cover to reduce chlorination when the cover is closed (10%).
• Gas sensor in the cell to detect no-flow situations
• Simple user interface with button and LED for chlorine production and a "salt" LED
• Standard 2-year warranty


Dimensions Astralpool E-Next Salt Chlorinator and Cell

Salt Chlorinator Installation Service

Piscinas Ferromar as an ePartner of Zodiac offers you the possibility of hiring the installation service for your Salt Chlorinator at the time of purchase.

This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).

To be able to contract your installation you must meet the following minimum conditions:

• The production cell of the equipment must be installed on rigid pipe in its two standardized measures of 50mm and 63mm. It cannot be installed on flexible pipes. Minimum distance of 25 cm free pipe for cell installation.
• The electronic control box should be installed in the inside the technical room of the sewage treatment plant, protecting it from possible humidity and corrosive emanations due to the storage of chemical products inside the plant.
• The client must have pool salt to dissolve in the pool in proportion to 5 Kg per m³
• Filtration pump with a minimum power of 1⁄2 HP or with the minimum required water flow rate (consult manual according to model).

The equipment to be installed must be of Astralpool, Zodiac or CTX brands.

We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached document of Check List and send it to info@piscinasferromar.com

For more information, consult the installation service conditions



Comparison of Astralpool E-Next Chlorinator Range

*Scroll horizontally to view the complete table.

	E-Next 7	E-Next 12	E-Next 21	E-Next 30	E-Next 40
Reference	74081	74082	74083	74084	74085
Maximum Chlorine Production	7 g/h	12 g/h	21 g/h	30 g/h	40 g/h
Number of Plates	3	5	7	11	13
Volume of water	30 m³	50 m³	90 m³	140 m³	180 m³
Cell life span (under optimal conditions)	Tech grade: 8000 to 10,000 hours
Electrical voltage	230 V / 50 / 60 Hz
Fuse	2 A
Amperage	0,2 A	0,4 A	0,4 A	0,8 A	0,9 A
Salinity	4-6 g/L (min./max. = 4-10 g/L)
Water Temperature	Max. 40 ºC
Polarity inversion	Yes (2-3h)
Production Control	0 / 50 / 75 / 100%
Flow detection (gas)	Yes
Cover Production Control	Yes (Decrease of production to 10%)
Salt Level Alarm	Yes
Pipe connection	PVC adhesive Ø 63 mm
Maximum authorized pressure in the cell	2,75 bar (KPa)
Protection index	IP45

Warranty information

3 years from manufacturer except glass cell according to Royal Decree-Law 7/2021 of April 27th.
