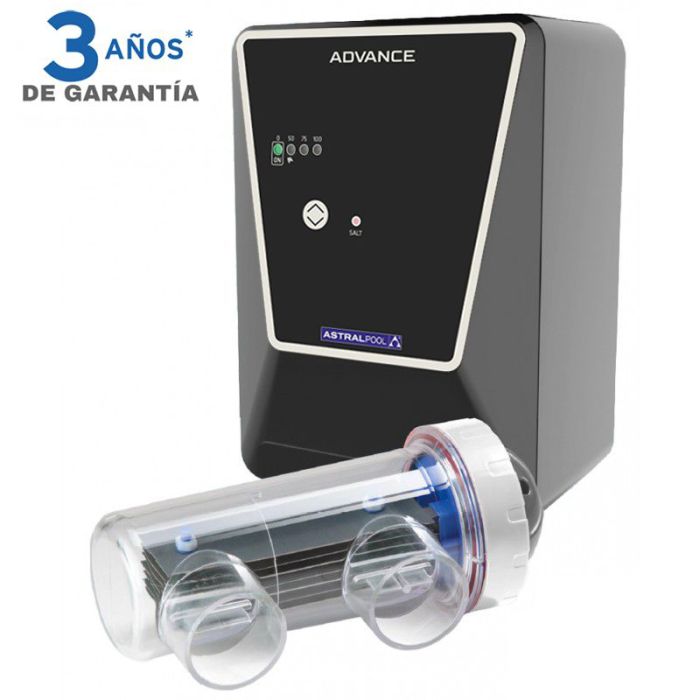

Astralpool Advance Salt Chlorinator
The new Astralpool Advance Salt Chlorinator is easy to use and install in almost any installation, it automatically disinfects pools up to 180 m3 and is compatible with pH control equipment that can be installed afterwards.
The Advance is available in 5 different models to suit the needs of your pool.
The Astralpool Advance salt chlorinator offers a 3-year warranty.
Manuals
Installation Service Documentation
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached Check List document and send it to info@piscinasferromar.com.
Installation Service Conditions
Check List Salt Chlorinator Installation Service
NEW ASTRALPOOL ADVANCE SALT CHLORINATOR EXCLUSIVE IN FERROMAR POOLS !
Features of the Advance salt chlorinator by Astralpool
Thanks to its compact design, the Advance salt chlorinator can be installed in almost any type of installation, even in the most humid places thanks to its IP45 waterproof case. In addition, the gas detector provides greater safety and facilitates its use since it stops the chlorination in case of lack of flow and the chlorinator warns if the salt level is low by means of an alarm.
Features
- Very compact power supply ( 25x20x14 cm ), capable of chlorinating pools of up to 180m3 thanks to its productions from 7 to 40 g/h.
- U-shaped cell with electrodes of Tech grade: from 8000 to 10,000 hours
- Contact for pool cover to reduce chlorination when cover is closed ( 10% )
- Gas sensor in the cell to detect no-flow situations
- Simple user interface with button and LED for chlorine production and a "salt" LED
- 3-year extended warranty
Salt electrolysis system
Salt Chlorinator Astralpool Advance and Celula
Astralpool E-Next Salt Chlorinator and Cell Dimensions
Installation Service for your Salt Chlorinator
Piscinas Ferromar as an ePartner of Zodiac offers you the possibility of hiring the installation service for your Salt Chlorinator at the time of purchase.
This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).
To be able to contract your installation you must meet the following minimum conditions:
- The production cell of the equipment must be installed on rigid pipe in its two standardized measures of 50mm and 63mm. It cannot be installed on flexible pipes. Minimum distance of 25 cm free pipe for cell installation.
- The electronic control box should be installed in the inside the technical room of the sewage treatment plant, protecting it from possible humidity and corrosive emanations due to the storage of chemical products inside the plant.
- The client must have pool salt to dissolve in the pool in proportion to 5 Kg per m3
- Filtration pump with a minimum power of 1⁄2 HP or with the minimum required water flow rate (consult manual according to model).
The equipment to be installed must be of Astralpool, Zodiac or CTX brands.
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached document of Check List and send it to info@piscinasferromar.com
For more information, consult the installation service conditions
Comparison of Astralpool Advance Chlorinators Range
*Scroll horizontally to view the complete table.
 |
|
|
|
|
|
| Advance 7 | Advance 12 | Advance 21 | Advance 30 | Advance 40 | |
| Reference | 74539 | 74540 | 74541 | 74542 | 74543 |
| Maximum Chlorine Production | 7 g/h | 12 g/h | 21 g/h | 30 g/h | 40 g/h |
| Number of Plates | 3 | 5 | 7 | 11 | 13 |
| Volume of water | 30 m³ | 50 m³ | 90 m³ | 140 m³ | 180 m³ |
| Cell life span (under optimal conditions) |
Tech grade: 8000 to 10,000 hours | ||||
| Electrical voltage | 230 V / 50 / 60 Hz | ||||
| Fuse | 2 A | ||||
| Amperage | 0,2 A | 0,4 A | 0,4 A | 0,8 A | 0,9 A |
| Salinity | 4-6 g/L (min./max. = 4-10 g/L) | ||||
| Water Temperature | Max. 40 ºC | ||||
| Polarity inversion | Yes (2-3h) | ||||
| Production Control | 0 / 50 / 75 / 100% | ||||
| Flow detection (gas) | Yes | ||||
| Cover Production Control | Yes (Decrease of production to 10%) | ||||
| Salt Level Alarm | Yes | ||||
| Pipe connection | PVC adhesive Ø 63 mm | ||||
| Maximum authorized pressure in the cell | 2,75 bar (KPa) | ||||
| Protection index | IP45 | ||||
Warranty information
3 years from manufacturer except glass cell according to Royal Decree-Law 7/2021 of April 27th.
-
