ESPA Tiper hydromassage and spa pumps
€168.00
In stock
SKU
Bomba Tiper hidromasaje y spa ESPA
Best Price Online
Single-cell centrifugal pump designed for water recirculation in spas, removable pools and hydromassage systems with a compact and robust design.

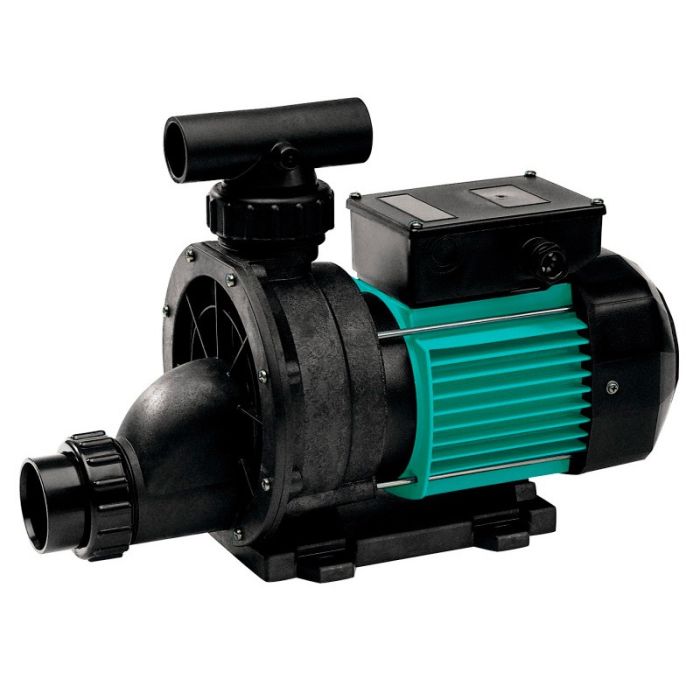

ESPA Tiper hydromassage and spa pump
Total drainage device to avoid residual liquid retention in each cycle.
Built-in thermal protector and total insulation higher than 3750 V.
Available in 3 models in single-phase motors from ½ hp to 1.25 hp:
- Tiper1 70: ½ hp
- Tiper1 90: 1 hp
- Tiper2 125: 1.25 hp
Features
Materials
- Suction and discharge body, open impeller and motor-pump support in technopolymer.
- Motor shaft in stainless steel AISI 420.
- Aluminum motor casing.
- Tiper1: mechanical seal in graphite and soapstone.
- Tiper2: mechanical seal in graphite and alumina oxide.
Motor
- IP 55 protection, externally ventilated.
- Single-phase 1 x 230 V, with built-in thermoamperimetric protector and corresponding condenser.
- Electrophoresis painting, ensuring the motor a high resistance to corrosion.
Connections
- With suction and discharge connections.
- Inner suction fitting 50 mm for gluing. External 58 mm for pipe with clamps.
- Discharge fitting:
- Tiper1: 2 inward 32 mm for gluing and outward 40 mm for pipe with clamps.
- Tiper2: 2 inner 40 mm for gluing and outer 48 mm for pipes with clamps.
Hydraulic operation table
| 1~230 V (model M) |
Model | I [A] | P1 [kW] | P2 | c [µF] [µF] [µF] [µF] [µF] [µF] [µF |
l/min | 50 | 100 | 150 | 175 | 200 | 250 | 300 | 340 | |
| Code | 1~ 230 V |
1~ 230 V |
[kW] | [HP] | m3/h | 3,0 | 6,0 | 9,0 | 10,5 | 12 | 15 | 18 | 20,4 | ||
| 208183 | Tiper1 70 | 3,1 | 0,7 | 0,37 | 0,5 | 12 | mca | 9,6 | 8,5 | 7 | 6,2 | 5,1 | 3 | ||
| 208184 | Tiper1 90 | 4,2 | 0,9 | 0,75 | 1 | 12 | 10,8 | 9,8 | 8,5 | 7,8 | 7 | 5 | 3 | 1 | |
| 1~230 V (model M) |
Model | I [A] | P1 [kW] | P2 | c [µF] |
l/min | 83 | 133 | 183 | 233 | 283 | 333 | 383 | 433 | ||
| Code | 1~ 230 V |
1~ 230 V |
[kW] | [HP] | m3/h | 3,0 | 6,0 | 9,0 | 10,5 | 12 | 15 | 18 | 20,4 | |||
| 208185 | Tiper2 125 | 5,6 | 1,5 | 0,90 | 1,25 | 16 | mca | 14,2 | 13,2 | 12 | 10,6 | 9 | 7 | 5 | 2,7 | |
Warranty Information
Warranty 2 years according to manufacturer's conditions.
