ESPA Wiper hydromassage and spa pumps
€191.00
In stock
SKU
Bomba Wiper ESPA
Best Price Online
Single-cell centrifugal pump designed for water recirculation in spas, removable pools and hydromassage systems with a compact and robust design.

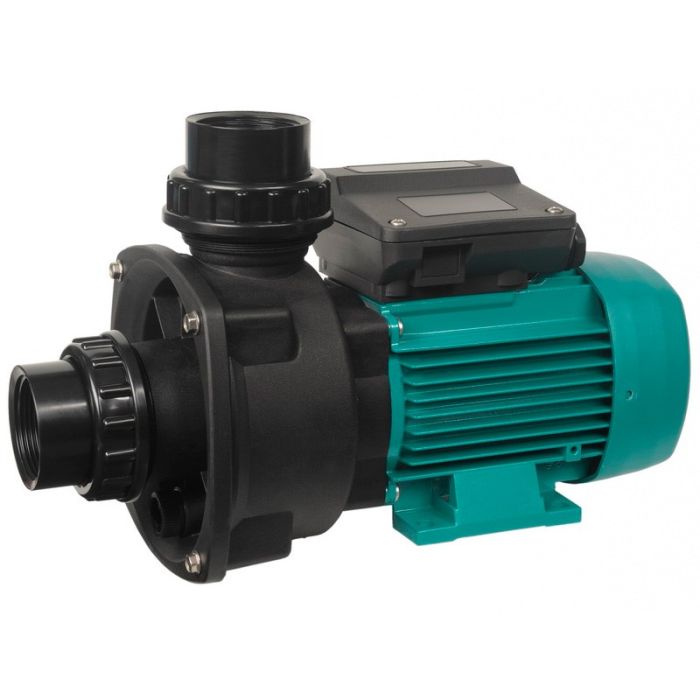

ESPA Wiper hydromassage and spa pump
Features
Materials
- Pump body and impeller in technopolymer.
- Motor shaft in stainless steel AISI 420.
- Mechanical seal in graphite and steatite.
- Aluminum motor housing.
- NBR seals.
Motor
- IP 55 protection, with external ventilation.
- Single-phase 1 x 230 V, with built-in thermoamperimetric protector and corresponding condenser.
- Electrophoresis painting, ensuring the motor a high resistance to corrosion.
Connections
- Suction and delivery threaded 2¼" and served with 50 mm threaded fittings (Wiper 0) and 2¾" served with 63 mm fittings for gluing (Wiper 3).
Available in models with single-phase (Wiper0 / Wiper3) and three-phase (Wiper3) motors from 1/3 HP to 3 HP.
| 1~230 V (M model) |
Model | I [A] | P1 [kW] | P2 | c [µF] [µF] [µF] [µF] [µF] [µF] [µF |
l/min | 25 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | |
| Code | 1~ 230 V |
1~ 230 V |
[kW] | [HP] | m3/h | 1,5 | 3,0 | 6,0 | 9,0 | 12 | 15 | 18 | 21 | ||
| 203170 | Wiper0 50 | 2,3 | 0,5 | 0,24 | 0,33 | 12 | mca | 10 | 9,4 | 7,9 | 6,0 | 3,6 | 1 | ||
| 203171 | Wiper0 70 | 2,9 | 0,64 | 0,37 | 0,5 | 12 | 11 | 10,6 | 9,7 | 8,5 | 6,6 | 4,5 | 2,2 | ||
| 203172 | Wiper0 90 | 3,74 | 0,85 | 0,74 | 1,0 | 12 | 11,7 | 11,3 | 10,5 | 9,6 | 8,4 | 6,7 | 4,6 | 2,2 | |
| 1~ 230 V (M) |
3~ 400 V (T) |
Model | I [A] | P1 [kW] | P2 | c [µF] [µF] [µF] [µF] [µF] [µF] [µF |
l/min | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 900 | ||||
| Code | Code | 1~ 230 V |
3~ 230 V |
3~ 400 V |
1~ 230 V |
3~ 400 V |
[kW] | [HP] | m3/h | 3,0 | 6,0 | 12 | 18 | 24 | 30 | 36 | 54 | ||
| 203173 | 203176 | Wiper3 150 | 6,4 | 5 | 2,9 | 1,4 | 1,1 | 1,1 | 1,5 | 25 | mca | 13,3 | 13 | 12,1 | 10,8 | 8,2 | 5 | ||
| 203174 | 203177 | Wiper3 200 | 8,8 | 6,6 | 3,8 | 2 | 1,8 | 1,5 | 2 | 40 | 14,8 | 14,5 | 13,9 | 12,9 | 11,1 | 9,1 | 6,8 | ||
| 203175 | 203178 | Wiper3 300 | 11 | 7,1 | 4,1 | 2,5 | 2,4 | 2 | 3 | 60 | 14,8 | 14,5 | 14,1 | 13,5 | 12,8 | 11,9 | 10,7 | 4,7 | |
Warranty Information
Warranty 2 years according to manufacturer's conditions.
