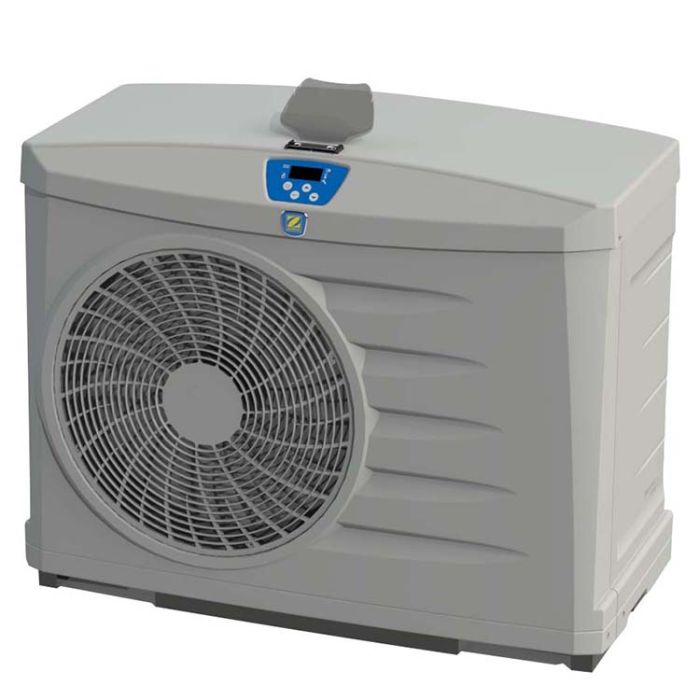

Zodiac Z200 heat pump
The Z200 by Zodiac is a swimming pool heat pump, compact to occupy the minimum space, it is ideal for heating pools up to 70 m3. It works up to +5ºC.
Durable heat pump thanks to its patented titanium exchanger.
Manuals
Zodiac Z200 heat pump catalog
Instruction Manual Zodiac Z200 heat pump
Service and Installation Documentation
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached Check List document and send it to info@piscinasferromar.com.
Installation Service Conditions
Check List Salt Chlorinator Installation Service
Zodiac Z200 Swimming Pool Heat Pump
Zodiac Z200 is the pool heat pump that combines simplicity and performance.
Compact heat pump so it takes up little space. Easy to use, thanks to its LCD screen where you only have to press the start button and a selector to raise or lower the desired water temperature.
The Zodiac Z200 heat pump is perfect for use in pools up to 70 m3 of water and we recommend the use of a thermal blanket to avoid heat loss.
Zodiac pool heat pumps are affordable and easy to install, they are the ideal solution to heat the pool and use it all year round. Savings in energy costs, since about 80% of the energy used to heat the pool comes from the air.
Zodias Z200, the compact and efficient heat pump for swimming pools
Compact heat pump, thanks to its reduced dimensions it will occupy the minimum space while maintaining its high performance.
Thanks to its "Heating priority" function, the Z200 controls the activation of the filtration and guarantees a constant temperature maintenance in all circumstances.
The Zodiac Z200 is compatible with most in-ground and above-ground pools up to 70 m3 and compatible with any type of water treatment.
Features Z200 heat pump
- Titanium heat exchanger
- For pools up to 70M3
- Digital display
- 4 models in standard function according to power
- Automatic defrost by forced ventilation
- Polypropylene casing
- R32 refrigerant gas
- Operation up to +5 ºC
- Protective cover included
Heat Pump Installation Service
Piscinas Ferromar as an ePartner of Zodiac offers you the possibility of contracting the installation service for your Heat Pump at the time of purchase.
This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).
To be able to contract your installation you must meet the following minimum conditions:
Heat pump located at ground level on outdoor floor screed.
Minimum distances:
- 50 cm from the rear and sides.
- No obstacle at the front (minimum distance 4 meters).
- Maximum horizontal distance of 5 meters
- Maximum vertical distance of 2 meters upwards from the filtration pump.
Maximum distances:
Filtration pump with a minimum power of ¾ HP or with the minimum water flow required.
(refer to manual according to the recommended water flow).
The equipment to be installed must be of Astralpool, Zodiac or CTX brands.
We recommend that the user contracting the installation service read the service contracting conditions and download and fill in the attached document of Check List and send it to info@piscinasferromar.com
For more information, consult the installation service conditions
*Scroll horizontally to view the complete table.
Zodiac Z200 models table
| MODELS | Z200M2 | Z200M3 | Z200M4 | Z200M5 |
|---|---|---|---|---|
| Recommended volume (m3) | 10-25 | 25-45 | 30-60 | 50-70 |
| Sound pressure at 10 m (dB(A)) | 66 | 67 | 69 | 72 |
| Hydraulic connection | 1/2 PVC couplings ø50 to be glued | |||
| Power supply | Single phase 230 V / 1 / 50 Hz | |||
| Dimensions (L x W x H) | 84 x 38,5 x 66,6 cm (84 x 38,5 x 66,6 cm) | |||
| Conditions of use: Air 28°C / Water 28°C / Humidity 80%. | ||||
| Power input (kW) | 6.7 | 9.3 | 11.5 | 14.8 |
| Power input (kW) | 1.2 | 1.8 | 2.3 | 3.2 |
| COP (Coefficient of Performance) | 5.5 | 5 | 5.1 | 4.6 |
| Operating conditions: Air 15°C / Water 26°C / Humidity 70%. | ||||
| Power input (kW) | 4.8 | 7 | 8.1 | 10.1 |
| Power absorbed (kW) | 1 | 1.6 | 2 | 2.5 |
| COP (Coefficient of Performance) | 4.8 | 4.4 | 4 | 4 |
The COP or Coefficient of Performance is the ratio between the heat output
provided by the heat pump to your pool and the electrical output
it consumes. For example, a COP of 5 means that for every 1kWh of
electricity consumed, the heat pump returns 5 kWh to the pool.
The higher the COP, the higher the heating capacity of the equipment,
the higher the efficiency and the more economical.
Important: the COP depends on the temperature conditions (air and water). and hygrometry.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
-
