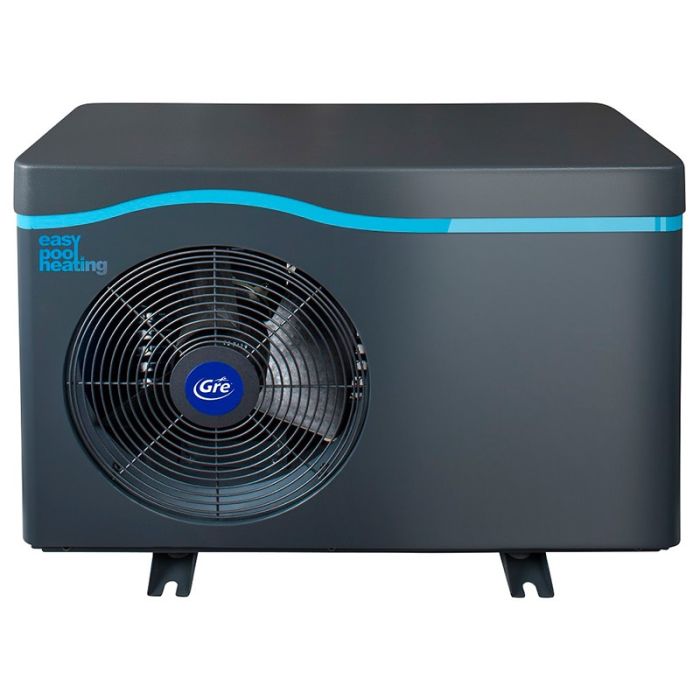

Standard Gre heat pump
Gre heat pump for heating water in inground and aboveground pools.
Available in 4 models to suit pools up to 70 m³.
Manuals
Instruction Manual Standard Gre Heat Pump
Standard Gre Heat Pump
Energy system based on the use of external energy to heat the pool water, with ratios of 1 kW consumed - 5 kW supplied.
The most efficient system to heat your pool water and extend the swimming season.
- Thanks to the titanium heating element, it is compatible with all water treatment systems, including salt chlorination.
- Operating temperature from 7°C.
- Automatic defrosting system.
- Includes cover for winter protection.
- Designed for outdoor installation in ventilated area.
| Model | HPG25 | HPG40 | HPG50 | HPG70 | |
| * Capacity air 28ºC / water 28ºC, Humidity 80%. | |||||
| Heating power | kW | 5 | 7,5 | 11 | 14 |
| Power consumption | kW | 1,00 | 1,40 | 2,20 | 2,60 |
| COP | 5 | 5,4 | 5,0 | 5,4 | |
| Air capacity 15ºC / water 26ºC, Humidity 70% * Air capacity 15ºC / water 26ºC, Humidity 70%. | |||||
| Heating power | kW | 3,5 | 5,5 | 7,5 | 9,5 |
| Power consumption | kW | 0,88 | 1,25 | 1,75 | 2,25 |
| COP | 4 | 4,4 | 4,3 | 4,2 | |
| General Characteristics | |||||
| Compressor | Rotary | ||||
| Voltage | V | 220~240V / 50Hz / mono | |||
| Maximum volume of the pool ** | m³ | < 25 | < 40 | < 50 | < 70 |
| Recommended water flow rate | m³/h | 2,5~3,2 | 2,5~4,2 | 3,5~7,1 | 4~7,9 |
| Water pressure drop | KPa | 12 | 12 | 15 | 15 |
| Condenser | PVC Twist-Titanium tube | ||||
| Water inlet-outlet connection | mm | 50 | |||
| Type of ventilation | Horizontal | ||||
| Degree of protection | IPX4 | ||||
| Maximum pressure discharge and suction side | MPa | 4,2 | |||
| Noise level (at 10 meters) | dB(A) | 32 | 33 | 37 | 37 |
| Noise level (at 1 meter) | dB(A) | 50 | 51 | 54 | 54 |
| Refrigerant | R32 | ||||
| Refrigerant quantity | g | 400 | 450 | 800 | 900 |
| CO2 equivalent | Tm | 0,27 | 0,30 | 0,54 | 0,61 |
| Net weight | kg | 36 | 46 | 65 | 77 |
| Gross weight | kg | 38 | 48 | 72 | 81 |
| Dimensions | mm | 800 x 330 x 515,5 | 977,5 x 386 x 563,5 | 1096 x 410 x 689 | |
| Packing dimensions | mm | 830 x 395 x 555 | 1000 x 430 x 600 | 1120 x 465 x 725 | |
** Ambient temperature of 15ºC, water temperature of 26ºC and humidity of 70%.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
-
