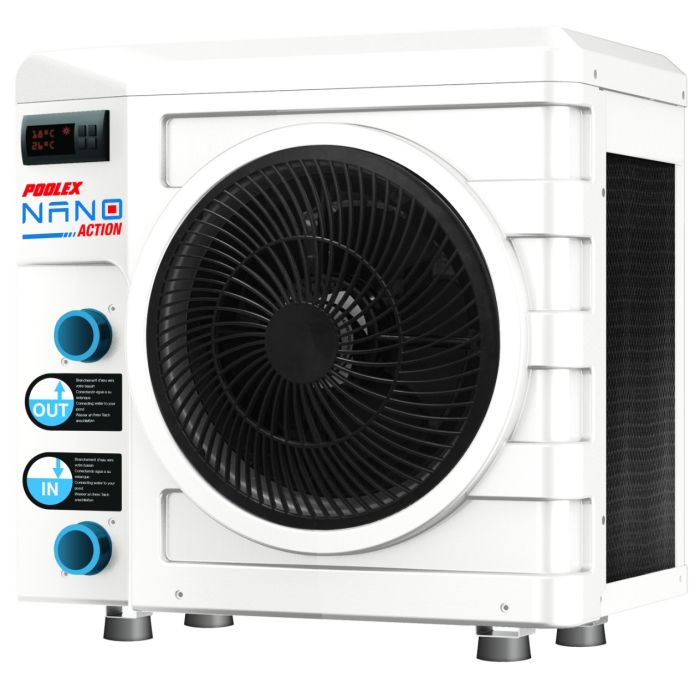

Poolex Nano Action heat pump
The Poolex Nano Action is specially designed for small pools. Its unique design and availability in various colors allow the Poolex Nano to blend in perfectly with any pool. The performance of a Poolex at the best price. Designed as a premium heat pump, it inherits all the performance in an ultra compact size. Its weight allows it to be easily transported once the season is over.
Manuals
User and Installation Manual Poolex Nano Action Heat Pump
Poolex Nano Action Heat Pump
With components worthy of a larger heat pump, the Poolex Nano achieves a COR similar to high-end heat pumps.
Simply plug it into a standard electrical outlet to heat the pool in a matter of hours.
Its unique design and availability in various colors allow the Poolex Nano to blend seamlessly into any pool.
The performance of a Poolex at the best price.
Advantages:
- Compact dimensions.
- Standard filtration nozzles.
- Portable (15kg).
- Economical and silent.
- Electrical system with protection.
2-year warranty
Ecological refrigerant R32
Toshiba compressor
Quiet operation
Accessories:
- Installation and user manual in several languages.
- PVC connectors Ø 32 - 38 mm.
- 5 m electrical socket Differential protection of 10 mA.
Reinforced and printed embassy
Manual and Instructions in Several Languages
PVC Connectors 32-38 mm
Electrical Socket with Differential Protection
Warranty:
- Heat pump: 2 year warranty
- Compressor: 5 year warranty
- Titanium spiral: 10-year warranty against corrosion
Thanks to its ultra-compact design, Poolex Nano Action blends in perfectly
Poolex Nano Action can be connected to all above ground pools and heat your pool.
*Scroll horizontally to view the complete table
| Model | Nano Action 3 | Nano Action 4 | Nano Action 5 | |
|---|---|---|---|---|
| Pool volume (m3) | From 10 to 21 | From 15 to 28 | From 20 to 35 | |
| Condition: Air 26°C Water 26°C Humidity 80%. |
Capacity (W) | 3 010 | 4 200 | 5 010 |
| Power consumption (W) | 540 | 760 | 910 | |
| COR | 5,61 | 5,50 | 5,50 | |
| Condition: Air 15°C Water 26°C Humidity 70%. |
Capacity (W) | 2 210 | 3 100 | 4 030 |
| Power consumption (W) | 540 | 760 | 1000 | |
| COR | 4,09 | 4,08 | 4,03 | |
| Power supply | Mono 220-240V/50Hz | |||
| Heating temperature range | 15°C / 40°C | |||
| Operating range | 8°C / 43°C | |||
| Maximum power (W) | 930 | 1 200 | 1 500 | |
| Flow rate (m3/h) | 1,3 | 2 | 2,5 | |
| Refrigerant | R32 | |||
| Packaging dimensions (mm) | 460 x 370 x 415 | |||
| Dimensions (mm) | 400 x 280 x 385 | |||
| Net/gross weight (kg) | 18 / 20 kg | 24 / 28 kg | 26 / 30 kg | |
| Noise at 1 m (dB(A)) | <53 | <55 | <56 | |
| Noise at 10 m (dB(A)) | <32 | <35 | <36 | |
| Compressor type | Rotary | |||
| Compressor brand | Toshiba | |||
| Heat exchanger | Twisted Tech© titanium | |||
| Function | Heating | |||
| Loss on load (mCE) | 0,8 | |||
* European standard in conditions Air 15°C, Water 26°C and Humidity 70%, certified by TÜV.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
-
