Hayward Micro heat pump instruction manual

Hayward Micro heat pump

The Hayward Micro pump is recommended for removable above-ground pools with a small volume of no more than 20 m³. It comes equipped with 32/38 connections, compatible with the circulation systems of this type of above ground and smaller pools.

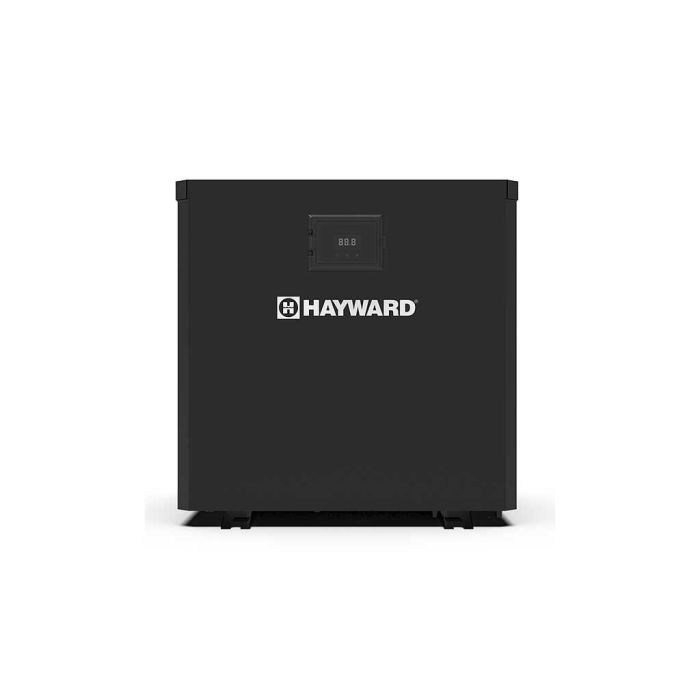

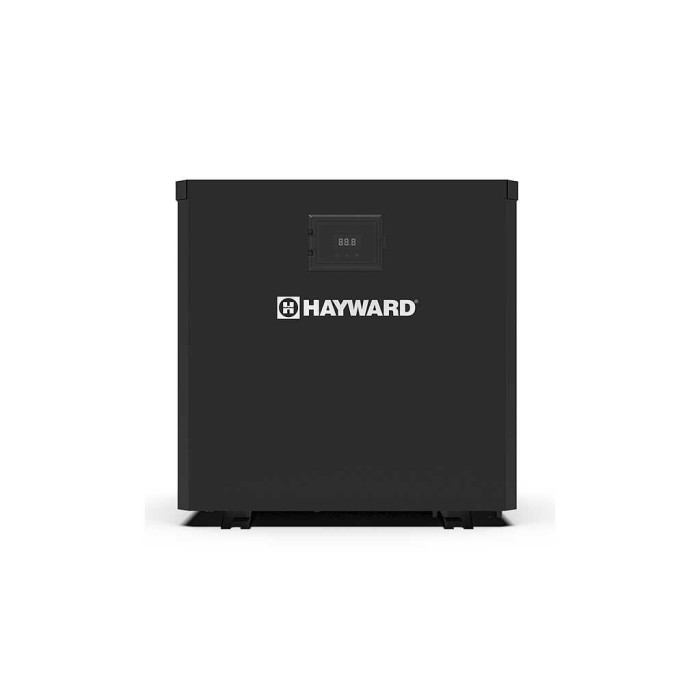

The Micro Pump has a solid and elegant design in a black color to avoid being the center of attention. It measures 41.8 x 39.9 x 42 cm, making it a small model and easily unnoticed by the eye. With an external structure made of galvanized sheet metal, it incorporates a practical LCD screen from which the various pump parameters can be adjusted. It is important to note that it uses R32 gas in its activity, a type of fluid with low environmental impact, which makes the Micro Pump an environmentally friendly product.

Hayward Micro heat pump managed by remote control

One of the most attractive features of the Hayward Pump Micro model is the possibility to control it remotely from an App. The pump includes a bluetooth system that allows its configuration from any location, as long as the App is available.

2 models available:

Micro pump with a power of 2.5 kW for pools with a max. volume of 15 m³.
Micro pump with a power of 3.5 kW for pools with a max. volume of 20 m³.

Features Hayward Micro heat pump

•  Pump designed for above ground and above ground pools.
•  For pools with a capacity equal to or less than 20 m³.
•  Hydraulic accessory in PVC 32/38 mm.
•  Quiet operation, with a noise level of less than 46 dB at a distance of 1 meter.
•  High functionality with a maximum outside temperature of 10 ºC.
•  Uses environmentally friendly R32 refrigerant gas.
•  Remote control with App via Bluetooth.
•  Power supply 230 V, 50 Hz.
•  Single use heating mode.
•  Rotary compressor.
•  Axial direction fan.

Micro Heat Pump Technical Specifications

Warranty Information

3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.

Attention

Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
