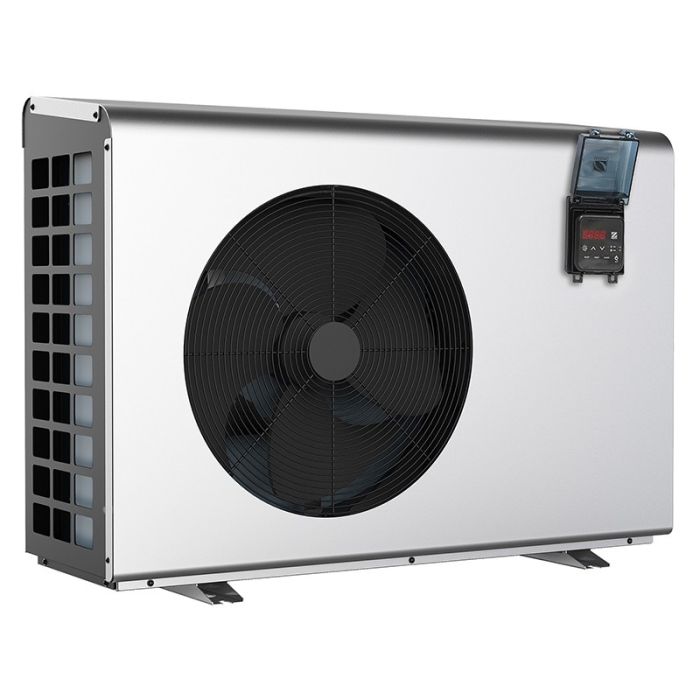

Heat pump HPO Zodiac Full Inverter
Heat pump for pool heating with outdoor installation, available in models from 6 to 18 kW. with Full Inverter technology with Zodiac quality.
Easy to use, with removable LCD touch screen to raise or lower the desired temperature of the water.
Manuals
Zodiac HPO Heat Pump Technical Sheet
Instruction Manual Heat Pump HPO Zodiac
Service and Installation Documentation
We recommend that the user who contracts the installation service read the service contracting conditions and download and fill in the attached Check List document and send it to info@piscinasferromar.com.
Installation Service Conditions
Check List Salt Chlorinator Installation Service
Zodiac HPO Heat Pump
Air-to-water heat pump for swimming pools with Full Inverter technology: silent and efficient.
Intelligent heating regulation with power mode selection.
Features Zodiac HPO heat pump
- Wide range of power available to heat pools up to 145 m³.
- Horizontal blowing.
- Epoxy painted galvanized body.
- Control panel with removable LCD digital display.
- Control mode heating priority (filtration pump control).
- Timed mode.
- Full Inverter technology with 3 operating modes:
- Boost: maximum power for fast heating.
- Smart: automatic power adjustment according to temperature.
- Silence: reduced power for energy saving and quiet operation.
- Automatic defrost.
- Automatic cooling mode by cycle reversal.
- Titanium water exchanger compatible with salt chlorination treatment.
- Inverter, rotary vane compressor.
- Variable speed DC fan (Inverter).
Accessories included:
- Protective cover.
- Condensation drain kit.
- PVC fittings Ø50 mm for gluing.
- Anti-vibration supports.
- Remote control kit.
Heat Pump Installation Service
Piscinas Ferromar as an ePartner of Zodiac offers you the possibility to contract the installation service for your Heat Pump at the time of purchase.
This service is only available in the Community of Madrid, Province of Alicante and Catalonia (except Lleida).
To be able to contract your installation you must meet the following minimum conditions:
Heat pump located at ground level on outdoor screed.
Minimum distances:
- 50 cm from the rear and sides.
- No obstacle at the front (minimum distance 4 meters).
- Maximum horizontal distance of 5 meters
- Maximum vertical distance of 2 meters upwards from the filtration pump.
Maximum distances:
Filtration pump with a minimum power of ¾ HP or with the minimum water flow required.
(refer to manual according to the recommended water flow).
The equipment to be installed must be of Astralpool, Zodiac or CTX brands.
We recommend that the user contracting the installation service read the terms and conditions of service contracting and download and fill in the attached document from Check List and send it to info@piscinasferromar.com
For more information, consult the installation service conditions
*Scroll horizontally to view the complete table.
| MODELS | HPO-6 | HPO-8 | HPO-9 | HPO-11 | HPO-14 | HPO-18 | ||
|---|---|---|---|---|---|---|---|---|
| CODES | WH000492 | WH000493 | WH000494 | WH000495 | WH000496 | WH000497 | ||
| COOLING FLUID | R32 | |||||||
| QUANTITY OF REFRIGERANT FLUID | Kg | 0,72 | 0,55 | 0,80 | 0,81 | 1,50 | 1,70 | |
| RECOMMENDED FLOW RATE | m³/h | 4 | 5 | 6 | 7 | 8 | 10 | |
| HYDRAULIC CONNECTION | mm | ½ PVC couplings Ø50 to be glued | ||||||
| POWER SUPPLY | V/Ph/Hz | 220-240 V / 1 / 50-60 Hz | ||||||
| RATED CURRENT | A | 4,6 | 5,9 | 7,2 | 9,2 | 10,5 | 13,2 | |
| MAXIMUM OPERATING CURRENT | A | 6,3 | 7,6 | 9,2 | 10,8 | 12,3 | 16,6 | |
| RECOMMENDED ELECTRICAL CABLE SECTION(1) | 3 x 1,5 | 3 x 2,5 | 3x4 | |||||
| SOUND POWER | 65-53 | 67-54 | 71-54 | 71-55 | 73-56 | 2 | ||
| SOUND PRESSURE (Lp) A 1 M | dB (A)* | 34-22 | 36-23 | 39-23 | 40-23 | 41-24 | 42-25 | |
| HEATING PERFORMANCE | ||||||||
| PERFORMANCE A 28 °C AIR, 28 °C WATER, 80% HUMIDITY RELATIVE |
Heating Capacity | kW | 9 - 1,9 | 10,5 - 2,1 | 13,5 - 2,5 | 16,5 - 3 | 19,5 - 3,5 | 25 - 4,5 |
| Energy Consumption | kW | 1,6 - 0,2 | 1,8 - 0,2 | 2,2 - 0,2 | 2,8 - 0,2 | 3,3 - 0,3 | 4,2 - 0,3 | |
| C.O.P | 5,8 - 16 | |||||||
| PERFORMANCE A 15 °C AIR, 26 °C WATER, 70% HUMIDITY RELATIVE |
Heating Capacity | kW | 6,3 - 1,9 | 7,6 - 2 | 9,4 - 2 | 11,2 - 2,5 | 13,7 - 3 | 17,7 - 4 |
| Energy Consumption | kW | 1,4 - 0,3 | 1,8 - 0,3 | 2,1 - 0,3 | 2,5 - 0,3 | 3,1 - 0,4 | 4 - 0,5 | |
| C.O.P | 4,5 - 8 | |||||||
(1) For a maximum length of 20 meters.
* Conforms to EN60704-1:2010+A11:2012.
*Scroll horizontally to view full table
| DIMENSIONS (mm) AND WEIGHT | ||||||
|---|---|---|---|---|---|---|
| MODELS | HPO-6 | HPO-8 | HPO-9 | HPO-11 | HPO-14 | HPO-18 |
| WEIGHT (Kg) | 52 | 58 | 61 | 62 | 89 | 92 |
| A | 859 | 985 | 1074 | |||
| B | 641 | 736 | 941 | |||
| C | 357 | 395 | ||||
| D | 97 | 107 | ||||
| E | 446,5 | 537 | 707 | |||
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
Attention
Piscinas Ferromar recommends a previous thermal study to determine the equipment and power that best suits your pool and needs, taking into account the location, use of the pool, desired temperature, etc... To do so, please contact us at info@piscinasferromar.com and we will send you the most suitable solution. If you choose to purchase the heat pump without a previous thermal study, Piscinas Ferromar is not responsible for its performance to suit the specific needs of the customer and the installation. Important: heat pumps require outdoor installation and must be installed and commissioned by a professional.
-
