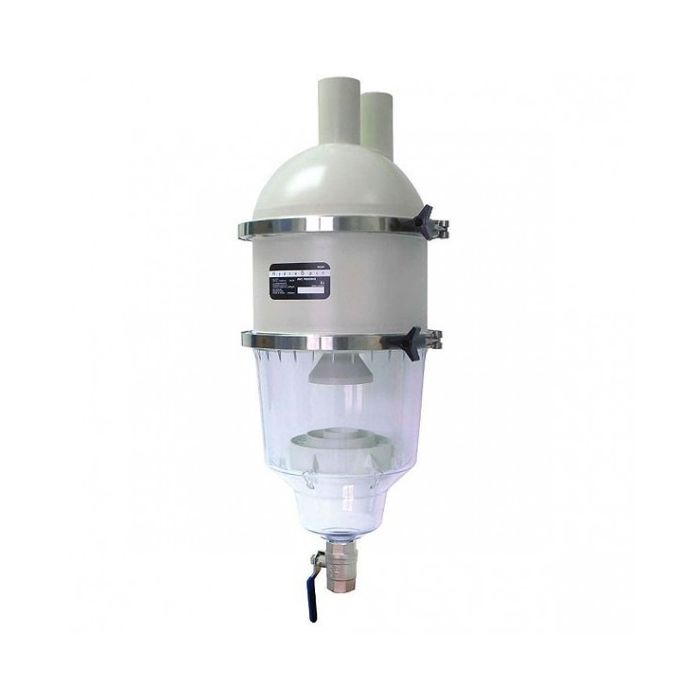

AstralPool HYDROSPIN cyclonic pre-filter
Hydrocyclonic cleaning pre-filter that can be installed in the cleaning systems. in both new and existing filtration systems. It allows to treat flow rates up to 30m³/h with a maximum pressure of pressure of 2.5 bar. It is installed between the pump and the filter, separating only the filter from the pump. up to 40 microns so that consumption is reduced by half. water consumption of the filtration system by half.
Video
Manuals
HYDROSPIN Cyclonic Prefilter User Manual
HYDROSPIN® Cyclonic Prefilter Catalog
AstralPool Cyclonic pre-filter HYDROSPIN
Save 50% in water in the washing of your filter Hydrocyclonic pre-filter for cleaning that can be installed in filtration systems in both new and existing installations.
It allows to treat flow rates up to 30m³/h with a maximum working pressure of 2.5 bar. It is installed between the pump and the filter, separating solids up to 40 microns in such a way that it reduces by half the consumption of water for washing the filtration system.
The HydroSpin has a solids collection tank with 3 differentiated zones (settling, clarification and thickening).
It can be cleaned with only 5 liters of water without stopping the pump.
- Considerable reduction of filter washing operations.
- Low head losses that allow installation without the need to change the existing pump.
- Can be installed on the floor with the supplied accessories or on the wall by means of DN300 flanges.
- Standard connections Ø63mm for water inlet and outlet and Ø32mm for dirt evacuation.
To install it on the wall, the kit code 47158 must be previously purchased.
Referenced SKU:
- 45289
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27.
-
