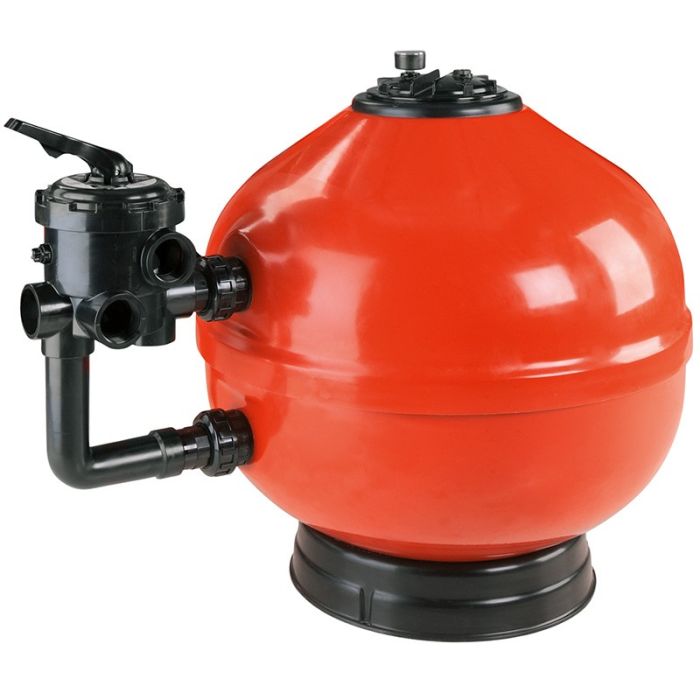

AstralPool Vesubio Filter
The range of Astralpool Vesubio filters range is one of the widest, which allows them to reach both the public and private pools.. Filters manufactured with simultaneous projection of resin and fiberglass..The Vesuvius Filter is a laminated sand filter within the high range AstralPool, is manufactured with simultaneous projection of resin and fiberglass.
This model of filter purifier for swimming pools includes a cover of subjection with screws of great resistance.
AstralPool Vesubio filter basic features
- Upper mouth Ø 210 mm.
- Ø 1050 mm, Ø 1200 mm models are available with upper mouth of 210 or 400 mm. The Ø 1400 mm model is only available with 400 mm mouth.
- Maximum working pressure of 2.5 kg/cm2.
- Filters with side connection up to Ø 1050 mm, can use multiport valve. Lateral version from Ø 900 mm are supplied without valve.
Vesubio filters - Public swimming pool range:
- With 2 ½'' sand discharge.
- Maximum working pressure: 2,5 Kg/cm2.
- Flowing bed height: 1m
Manuals
Catalog
Spare parts sheet
Dimension sheet
Technical data sheet
Dimensions
*Scroll horizontally to view the complete table.
Ø 450mm | Ø 500mm | Ø 600mm | Ø 750mm | Ø 900mm | Ø 1050mm | Ø 1050mm | Ø 1200mm | Ø 1200mm | |
---|---|---|---|---|---|---|---|---|---|
Code | 15785 | 19353 | 15786 | 15787 | 15788 | 15789 | 32391 | 15790 | 32392 |
A (mm) | 265 | 305 | 325 | 300 | 325 | 435 | 410 | 490 | 490 |
B (mm) | 125 | 125 | 125 | 230 | 270 | 270 | 270 | 270 | 270 |
C (mm) | 725 | 765 | 865 | 895 | 1080 | 1110 | 1235 | 1235 | 1360 |
D (mm) | 347 | 400 | 400 | 490 | 625 | 760 | 775 | 855 | 940 |
Filtration surface (m2) | 0,16 | 0,19 | 0,3 | 0,44 | 0,64 | 0,86 | 0,86 | 1,13 | 1,13 |
Connections | 1½" | 1½" | 1½" | 2" | 2½" | 2½" | 2½" | 90 | 90 |
Flow rate m3/h at 50m3/h/m2 | 8 | 9 | 14 | 22 | 32 | 43 | 43 | 56 | 56 |
Pool (volume) m3 (8 h) * | 64 | 72 | 112 | 176 | 256 | 344 | 344 | 448 | 448 |
Sand load (kg) | 60 | 95 | 148 | 245 | 415 | 660 | 660 | 1000 | 1000 |
Max. working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 | 2,5 |
Net weight (kg) | 16 | 20 | 23 | 32 | 48 | 97 | 97 | 130 | 140 |
Packing volume (m3) | 0,20 | 0,26 | 0,36 | 0,60 | 1,00 | 2,05 | 2,05 | 2,45 | 2,43 |
AstralPool Vesubio Laminated Filter
The Vesubio Filter is a laminated sand filter within the high range of AstralPool, it is manufactured with simultaneous projection of resin and fiberglass.
This model of filter purifier for swimming pools includes a cover of subjection with screws of great resistance.
Maximum working pressure of 2,5 kg/cm.2.
Features
- The Vesubio range is wide enough to reach both the public and private pool sector.
- Upper opening Ø 210 mm. The Ø 1050 mm and Ø 1200 mm models are also available with Ø 400 mm top opening.
- Maximum working pressure of 2,5 kg/cm.2.
- Constructed with polyester resins and fiberglass.
- Excellent finish.
- Mounted with 1" manifolds and diffuser made of unalterable plastic material.
- Equipped with pressure gauge, manual water purge, automatic and manual air purge.
- Connections for six-way side valve with filtering, washing, rinsing, recirculation, emptying and closing operations.
Valve available without selector valve, with bayonet valve or with screw valve.
Warranty information
3 years manufacturer's warranty according to Royal Decree Law 7/2021, April 27th.
