AstralPool Rapidpool Top Filter
€790.00
In stock
Only %1 left
SKU
Filtro Rapidpool Top
Free Shipping
Best Price Online

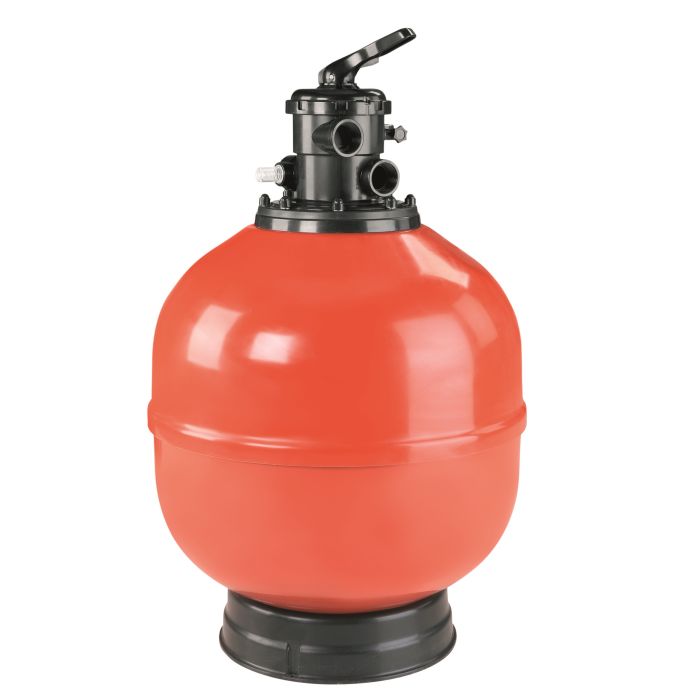

The Rapidpool filter is a high performance laminated filter, made of polyester reinforced with fiberglass. The Rapidpool range of laminated sand filters provides a high performance in the filtration of your pool by incorporating a larger filtering bed, thus achieving a better filtration quality. Red color, polypropylene foot, screwless cover, sand and water drain plug, pressure gauge and air purge incorporated in the cover and top selector valve (top).
Range comparison
| Code | 32427 | 32428 | 32429 | 33849 |
|---|---|---|---|---|
| Ø D (mm) | 400 | 500 | 650 | 800 |
| H (mm) | 1020 | 1165 | 1285 | 1566 |
| M (mm) | 850 | 995 | 1115 | 1355 |
| N (mm) | 790 | 935 | 1055 | 1279 |
| Connections | 1½” | 1½” | 1½” | 2” |
| Flow rate m3/h | 6 | 9 | 15 | 24 |
| Pool m3 approx. (8 h)* | 48 | 72 | 120 | 192 |
| Sand load (kg) | 60 | 130 | 255 | 445 |
| Sand height (mm) | 545 | 571 | 650 | 785 |
| Maximum working pressure (kg/cm2) | 2,5 | 2,5 | 2,5 | 2,5 |
| Net weight (kg) | 19 | 25 | 34 | 44 |
| Packing volume (m3) | 0,20 | 0,355 | 0,60 | 1,05 |
Manuals
Download Rapidpool Top filter technical catalog
Download installation and maintenance manual Rapidpool Top Filter
Features
- Laminated sand filters made of polyester resin and fiberglass. Red color
- Assembled with collectors and diffuser made of unalterable plastic material PVC and PP.
- Equipped with pressure gauge and air vent in the lid.
- Incorporates a plug for sand and water draining
- Six-way side selector valve for filtration, washing, rinsing, recirculation, emptying and shut-off operations
- Polypropylene foot
- Screwless lid for quick opening and closing
- Distribution of the collector arms, maximizing the filtration height
- Maximum filtration speed: 50 m3/h/m2
- Maximum working pressure: 2,5 kg/cm2
- Filter bed height 0,6 m
Benefits
- Filter bed. The larger filter bed and the distribution of the collectors improves the quality of the resulting water after filtration.
- Convenience. The patented lid opening and closing system eliminates the need for traditional screws. As a result, uniform pressure is exerted on the entire sealing gasket section and the lid opening operation is facilitated.
- Easy replacement. Since it has a sand drain plug, the evacuation/replacement process is easier.
Warranty information
3 years from the manufacturer according to Royal Decree Law 7/2021, April 27th.
